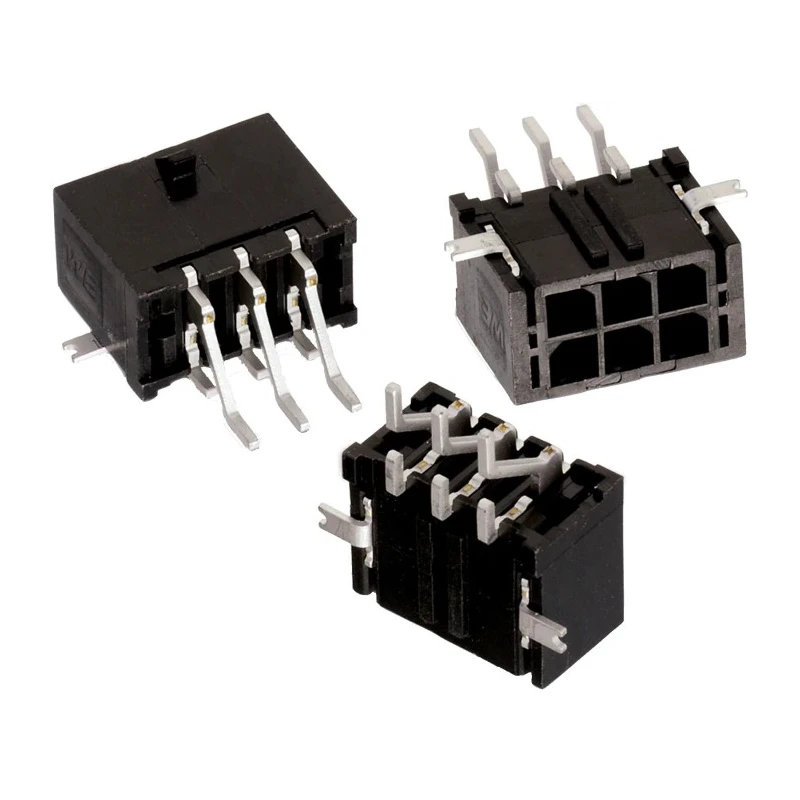

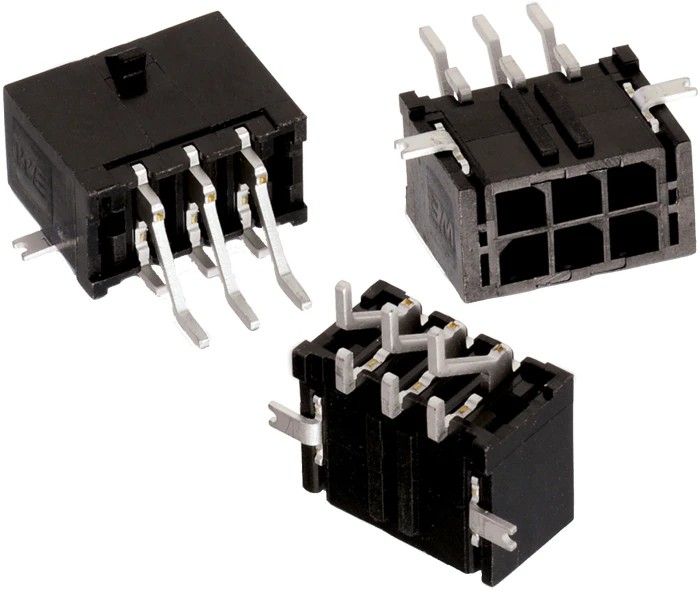

Wurth Elektronik WR-MPC3 Series Right Angle Surface PCB Header 14 Contacts 3 mm Pitch 2 Row Shrouded MPC3

Wurth Elektronik MPC3 series right angle surface PCB header is a high-quality electronic connector designed for secure wire-to-board connections. Featuring 14 contacts arranged in two rows with a 3 mm pitch, this shrouded male header provides robust electrical and mechanical performance for PCB assembly.

The header's housing is made from liquid crystal polymer (LCP), known for its excellent mechanical strength and thermal stability. The right-angle orientation allows for space-efficient PCB designs and improved routing flexibility. The connector is surface mount configured, enabling reliable soldering to printed circuit boards.

The copper alloy contacts with tin plating offer corrosion resistance and stable electrical conductivity. Rated for a current of 5 amperes and voltage up to 250 volts, this series meets demanding operational requirements across industrial, commercial, and electronic manufacturing applications. The operating temperature range from -40°C to 105°C ensures the header performs reliably in varied environmental conditions.

Its shrouded connector design protects the contacts, reducing the risk of damage or misalignment during connector mating. The male contact gender and wire-to-board system make this header versatile for connecting multiple wire assemblies to PCBs.

This product is manufactured in Taiwan, Province Of China, reflecting adherence to quality standards commonly required in electronic component production. It is ideally suited for use in industrial electronics, telecommunications, instrumentation, and manufacturing equipment requiring compact and durable PCB connections.

Features a robust liquid crystal polymer housing ensuring durability. Designed with right-angle orientation for compact PCB layouts. Supports a continuous current rating of 5 amperes for reliable power transmission. Contacts made of copper alloy with tin plating for corrosion resistance.

Minimum operating temperature down to -40°C and maximum up to 105°C. Surface mount termination with male contact gender facilitates soldering on PCB. Wire-to-board connector system suitable for electronic component interconnections.

Shrouded design protects contacts and prevents misalignment during mating. Rated voltage of 250 volts ensuring safe operation in electronic circuits. Manufactured in Taiwan, Province Of China, guaranteeing quality manufacturing standards.
