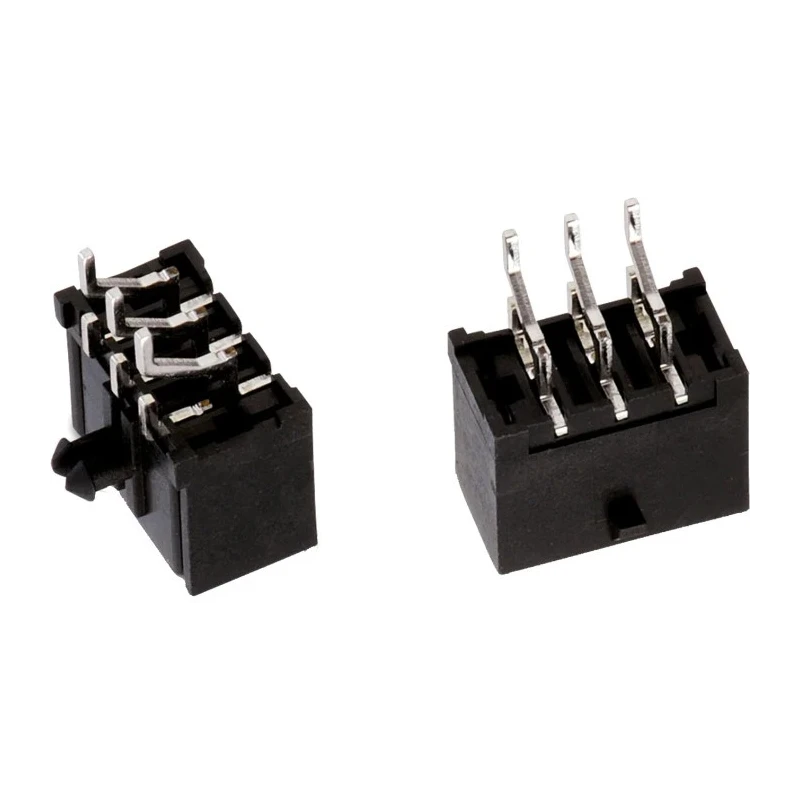

Wurth Elektronik WR-MPC3 Series Right Angle Through Hole PCB Header, 12 Contacts, 3 mm Pitch, 2 Row, Shrouded MPC3
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 250V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 5A |
| Model | MPC3 |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-MPC3 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Features a shrouded, right angle dual row design.
- Constructed with Liquid Crystal Polymer housing for high durability.
- Rated for 5 Amp current and 250 Volt maximum voltage.
- Contacts made of copper alloy with tin plating for reliable conductivity.
- Suitable for through hole mounting with solder termination type.
- Operating temperature range from -40°C to 105°C.
- Male contact gender compatible with PCB sockets and connectors.
- Designed for industrial electronic applications requiring robust PCB connections.
Product Description
Wurth Elektronik MPC3 is a right angle through hole PCB header featuring 12 male contacts arranged in two rows with a 3 mm pitch. It utilizes a shrouded design for secure connections in electronic assemblies. The housing material is Liquid Crystal Polymer, offering excellent mechanical and thermal stability for demanding industrial environments.
This connector supports a current rating of 5 Amperes and withstands voltage up to 250 Volts, making it suitable for power and signal PCB connections in industrial, manufacturing, and electronic equipment applications.
The copper alloy contacts plated with tin ensure optimal conductivity and corrosion resistance. The termination type is solder, compatible with through-hole PCB mounting techniques.
Operating temperature ranges from -40°C to 105°C provide flexibility for use in various temperature conditions commonly encountered in industrial and commercial settings.
The dual row, right angle orientation facilitates compact PCB layouts and reliable wire-to-board connection systems. This product is ideal for PCB assembly tasks requiring durability, mechanical robustness, and stable electrical performance.
Features a shrouded, right angle dual row design. Constructed with Liquid Crystal Polymer housing for high durability. Rated for 5 Amp current and 250 Volt maximum voltage. Contacts made of copper alloy with tin plating for reliable conductivity.
Suitable for through hole mounting with solder termination type. Operating temperature range from -40°C to 105°C. Male contact gender compatible with PCB sockets and connectors. Designed for industrial electronic applications requiring robust PCB connections.
Manufactured under no specific standards or approvals. Country of origin: Taiwan, Province Of China.
Explore a wide range of PCB Headers and connectors by Wurth Elektronik at EnvMart to ensure your electronic projects and industrial assemblies have reliable and high-quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 5 Amperes.
The maximum voltage is 250 Volts.
The operating temperature range is from -40°C to 105°C.
It supports through hole mounting with a solder termination type.
The housing is constructed from Liquid Crystal Polymer, providing high durability.
It features 12 male contacts arranged in two rows.
The pitch size is 3 mm.
The contacts are made of copper alloy with tin plating for reliable conductivity.
It has a right angle orientation, which facilitates compact PCB layouts.
It is designed for industrial electronic applications requiring robust PCB connections.
It is manufactured in Taiwan, Province Of China.
It uses a wire-to-board connector system.
