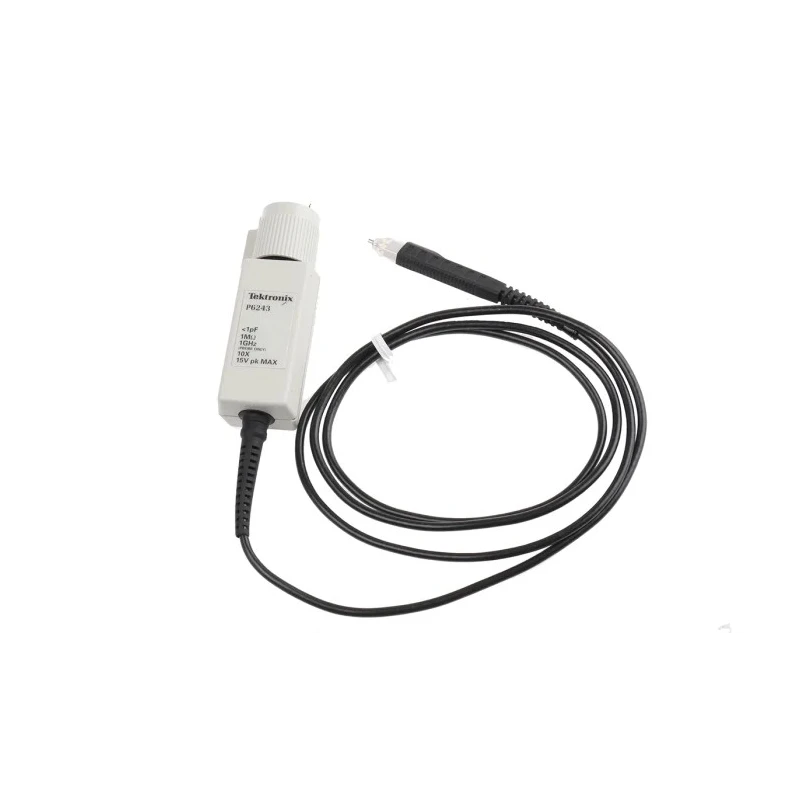

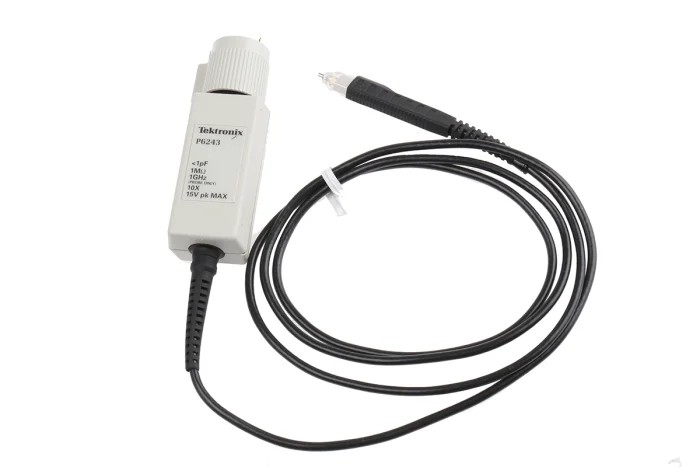

Tektronix Oscilloscope Probe Voltage Type 1 GHz Bandwidth 10:1 Attenuation BNC Connector P6243

Tektronix P6243 is an advanced active FET oscilloscope probe designed primarily for voltage measurements at bandwidths up to 1 GHz. It provides a 500 MHz system bandwidth when used with compatible Tektronix 500 MHz oscilloscopes, enabling high fidelity signal capturing even in demanding measurement scenarios.

This voltage probe achieves superior signal acquisition performance on surface mount devices (SMD) due to its very low capacitive loading, which is significantly lower than passive probes. The provided accessories and adapters enable direct connection to SMDs with pitches as small as 0.5 mm, increasing convenience in laboratory and industrial testing environments.

The probe is powered via the TekProbe BNC interface, eliminating additional power supplies and cables. Supporting a wide range of logic families including CMOS, BiCMOS, ECL, GaAs, and TTL, the P6243 is suitable for complex electronic circuit development and troubleshooting.

Key technical features include bandwidth of 1 GHz, a 10:1 attenuation ratio, low input capacitance (≤1 pF), and input resistance of 1 MΩ. Its rise time of 350 ps allows for accurate capture of fast transient signals. The probe's compact and lightweight head provides easy access during detailed measurements.

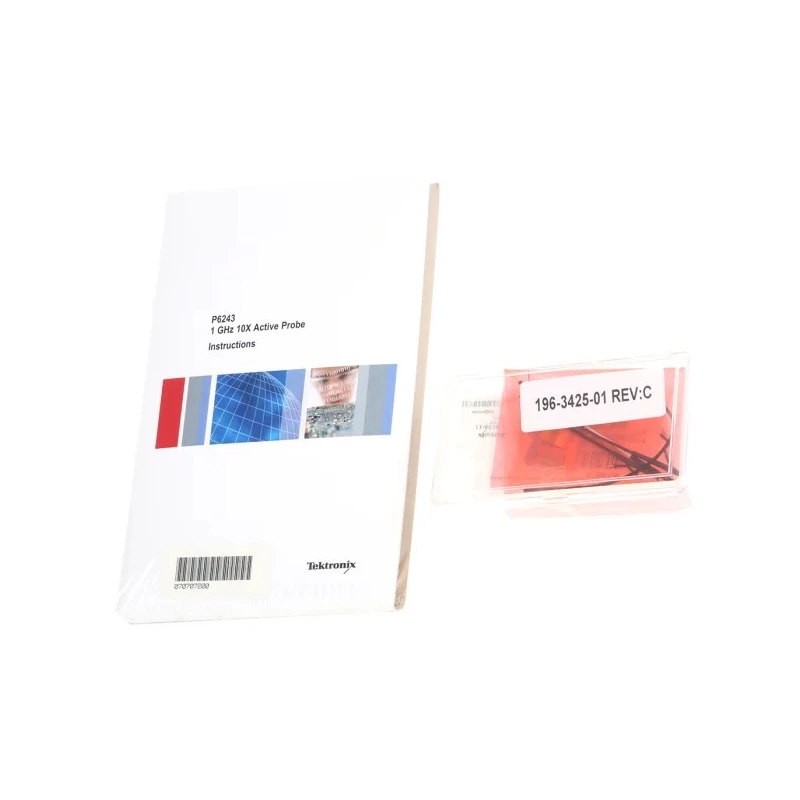

Package contents include ten solderable probe tips, multiple ground leads (1 inch, 3 inch, 6 inch), a Y lead adapter, SMT KlipChip adapters, color-coding clips in five colors, a right-angle square pin adapter, and a 100 mil square pin adapter. These accessories support flexible and reliable probe placement in various test setups.

This probe is specifically suited for industrial and laboratory applications, including electronics manufacturing, design verification, research and development, and maintenance testing. Its design supports use in precise and high-speed signal environments common to measuring and testing instruments sectors.

The product is manufactured in the United States and meets ISO 9001 quality standards, ensuring reliability and performance for professional users. Explore the full Tektronix range of Oscilloscope Probes and related accessories for comprehensive test and measurement solutions at EnvMart.

The probe provides a 1 GHz frequency bandwidth for accurate measurement. Attenuation ratio of 10:1 supports high signal fidelity. BNC connector ensures compatibility with Tektronix oscilloscopes. Input capacitance is less than or equal to 1 pF for minimal loading effects.

Input resistance is 1 MΩ for precise signal measurement. Rise time of 350 ps enables high-speed signal capturing. Includes a variety of solderable probe tips and ground leads for versatile testing. Supports measurement of CMOS, BiCMOS, ECL, GaAs, and TTL logic signals.

Compact, low-mass probe head facilitates easy access to test points on small devices. Complies with ISO 9001 standards and is made in the United States. EnvMart provides access to top industrial instruments including Tektronix oscilloscopes and probes for accurate electrical testing.
