TE Connectivity 3-Phase Chassis Mount EMI Filter Terminal Block 150A 440V ac 50Hz 60Hz 150KEHD10AFPD

Free Delivery in India | Lowest Global Shipping Charges

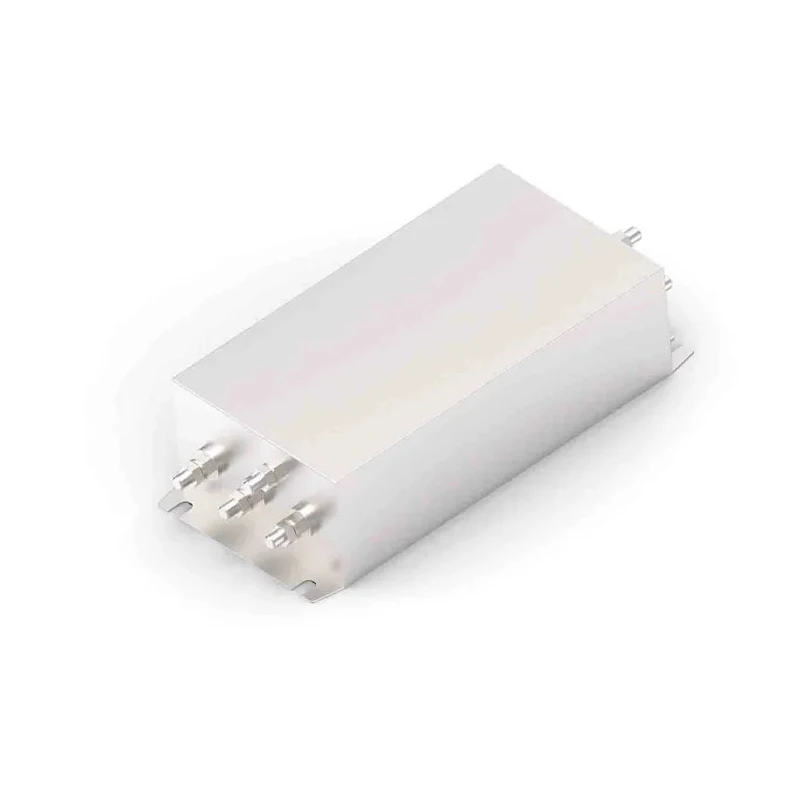

TE Connectivity 3-Phase Chassis Mount EMI Filter Terminal Block 150A 440V ac 50Hz 60Hz 150KEHD10AFPD

Name: TE Connectivity 3-Phase Chassis Mount EMI Filter Terminal Block 150A 440V ac 50Hz 60Hz 150KEHD10AFPD
Brand: TE Connectivity
SKU: 167496



Category Power Line Filters Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Model	150KEHD10AFPD
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	KEH
Maximum Operating Temperature	85°C
Number Of Stages	2
Minimum Operating Temperature	-25°C
Maximum Current	150A
Number of Phases	3
Leakage Current	20mA
Maximum Voltage	440V ac
Standards/Approvals	RoHS
Termination Style	Terminal Block

Key Features

Chassis mounting provides robust mechanical stability in industrial settings.
Terminal block termination ensures secure electrical connections.
Supports 3-phase electrical systems with two filter stages for effective EMI suppression.
Operating temperature range from -25°C to +85°C suits diverse environments.
Low leakage current of 20mA guarantees energy efficiency and safety.
Complies with RoHS standards for environmental and safety compliance.
Ideal for HVAC, rectifiers, and industrial control systems requiring EMI filtering.
Universal and cost-effective filter offering good power attenuation performance.

Product Description

TE Connectivity 150KEHD10AFPD is a 3-phase chassis mount EMI filter designed for industrial power line EMI suppression with a capacity of 150 amperes and voltage rating of 440 volts AC.

It features a single stage delta configuration (3 wire plus ground) and is designed to operate at 50Hz or 60Hz frequencies effectively reducing electromagnetic interference in power systems.

The filter uses terminal block termination style allowing secure and reliable connections suitable for rugged electrical environments. Operating temperature ranges from -25°C to +85°C, enabling use in various industrial, HVAC, rectifier, and control system applications that require reliable EMI mitigation.

The leakage current is maintained at 20mA ensuring minimal loss and improved safety profile, with compliance to RoHS standards affirming its environmental safety. Chassis mounting provides sturdy installation to minimize vibration and mechanical stress.

Terminal block terminations facilitate easy wiring and maintenance. Two filter stages effectively attenuate conducted EMI across three phases. Reliable performance across a wide temperature range supports diverse industrial environments.

Low leakage current contributes to energy efficiency and equipment protection. RoHS compliance supports green manufacturing and use. Commonly used in HVAC systems, rectifiers, and industrial motor control circuits. Universal application suitability due to voltage and current ratings.

This EMI filter is manufactured in India, ensuring adherence to stringent quality standards typical of TE Connectivity products. For professionals seeking a cost-effective, robust solution to EMI challenges in three-phase power circuits, the TE Connectivity 150KEHD10AFPD filter offers an optimal choice.
