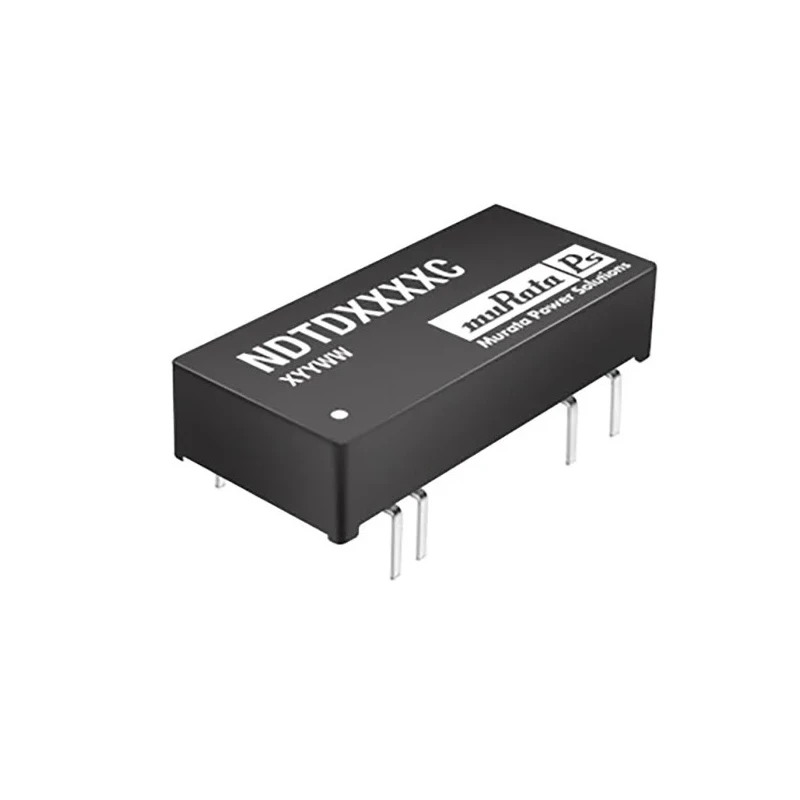

Murata Power Solutions DC/DC Converter 12V dc, -12 V dc Output, 125 mA, 36V dc Input, 18V Input, 3 W Power NDTD2412C
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NDTD DC/DC Converter, 12V d |
| Brand | Murata Power Solutions |
| Efficiency | 82% |
| Length | 23.26mm |
| Model | NDTD2412C |
| Depth | 7mm |
| Gross Weight | 6g |
| Width | 32.26mm |
| Mount Type | Through Hole |
| Series | NDTD |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 2 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12, -12V dc |
| Output Current 1 | 125mA |
| Isolation Voltage | 1kV dc |
| Wide 2 | 1 input voltage range |
Key Features
- High isolation voltage of 1 kV dc ensures safety and noise reduction.
- Compact DIP24 plastic package with through-hole mount type.
- Efficient operation with 82% efficiency and low ripple noise of 150mV peak-to-peak.
- Operates reliably in a temperature range from -40°C up to 85°C.
- Internal continuous short circuit protection for device safety.
- No heatsink required due to low profile and efficient thermal design.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Murata Power Solutions NDTD2412C DC/DC Converter features regulated isolated dual outputs of 12V dc and -12 V dc with a maximum output current of 125 mA and power rating of 3 W. It supports a wide input voltage range from 18V to 36V dc, suitable for industrial, laboratory, and electronic power supply systems.

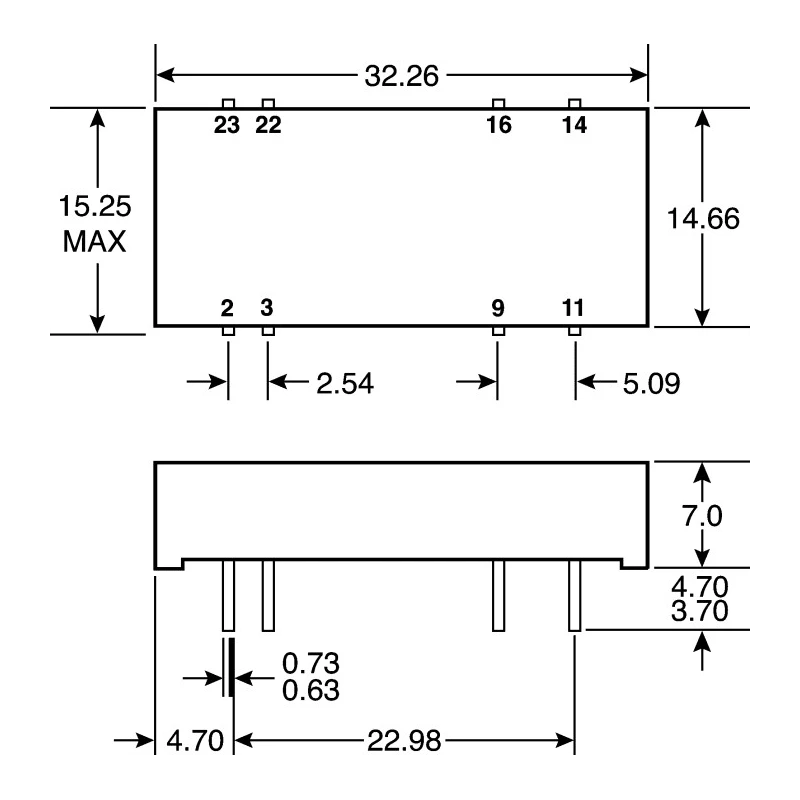

This converter uses a DIP24 plastic through-hole package ensuring ease of installation and PCB mounting. It provides 1 kV dc isolation voltage between input and output, enhancing device safety and preventing electrical interference. With a compact design of 23.26mm length, 32.26mm width, and 7mm depth, it fits in tight spaces without requiring a heatsink.
The device operates efficiently at 82% with low ripple and noise of 150mV peak-to-peak, making it ideal for sensitive electronic equipment. It also includes continuous short circuit protection to prevent damage during fault conditions. The temperature range from -40°C to 85°C ensures reliable performance in harsh environments.
The Murata NDTD series complies with RoHS standards, reflecting environmental compliance and safety. This DC/DC converter is widely used in electronics manufacturing, power supply regulation, communication equipment, control systems, and instrumentation.
Wide 2:1 input voltage range for versatility. Regulated dual output of +12V and -12V dc. High isolation voltage of 1 kV dc for noise immunity. Compact DIP24 plastic package with through-hole mount. Efficiency of 82% reduces power loss and heat.
Low ripple and noise output at 150mV Pk-Pk. Continuous short circuit protection improves durability. Operating temperature from -40°C to 85°C suits industrial environments. Complies with RoHS environmental standards. Explore the extensive range of DC/DC Converters and electronic components available at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides regulated dual outputs of +12V and -12V dc.
The maximum output current for this unit is 125 mA.
It supports a wide input voltage range from 18V to 36V dc.
The efficiency of this model is 82%, which helps reduce power loss and heat generation.
This unit has a length of 23.26mm, a width of 32.26mm, and a depth of 7mm.
It features a high isolation voltage of 1 kV dc, enhancing safety and noise immunity.
This model comes in a compact DIP24 plastic package suitable for through-hole mounting.
The ripple and noise output is specified at 150mV peak-to-peak.
It operates reliably in a temperature range from -40°C to 85°C.
Yes, it includes continuous short circuit protection to prevent damage during fault conditions.
This model is compliant with RoHS standards, ensuring environmental safety.
It is widely used in electronics manufacturing, power supply regulation, communication equipment, control systems, and instrumentation.
