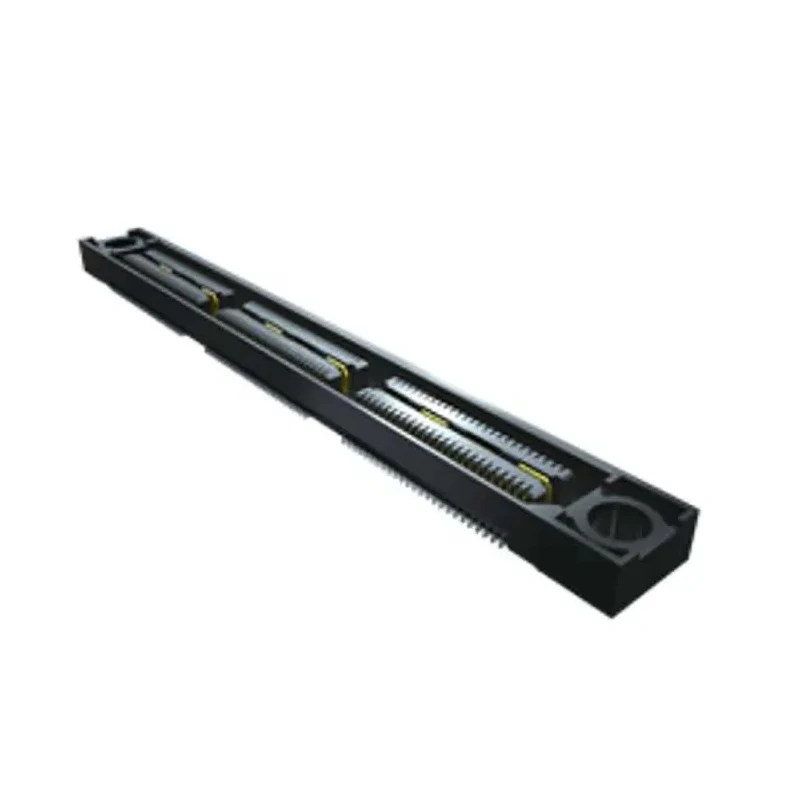

Samtec QSH Series Right Angle Surface PCB Socket, 100-Contact, 2 Row, 0.64 mm Pitch, 1.8A, 285V QSS-050-01-L-D-A-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec QSH Series Right Angle Surface PCB Socket, 100-Contact, 2 Row, 0.64 mm Pitch, 1.8A, 285V QSS-050-01-L-D-A-K-TR

Name: Samtec QSH Series Right Angle Surface PCB Socket, 100-Contact, 2 Row, 0.64 mm Pitch, 1.8A, 285V QSS-050-01-L-D-A-K-TR
Brand: Samtec
SKU: 167304
Price: 8.86 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	285V
Brand	Samtec
Orientation	Right Angle
Current	1.8A
Model	QSS-050-01-L-D-A-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	QSH
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Socket
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.64mm
Contact Plating	Gold
Number of Contacts	100
Connector System	Board-to-Board
Row Pitch	5.73mm

Key Features

Rated for 1.8A current and 285V voltage operation.
Constructed with phosphor bronze contacts plated in gold for reliable conductivity.
Housing made from liquid crystal polymer for durability and performance.
Supports operating temperatures from -55°C to 125°C.
Designed for board-to-board connector systems with surface mounting.
Row pitch measures 5.73 mm ensuring compact design.
High-speed socket strip with up to 9.5 GHz and 19 Gbps data rates.
Suitable for up to 250 positions with stack heights from 5 mm to 16 mm.

Product Description

Samtec QSS-050-01-L-D-A-K-TR is a right angle surface PCB socket from the QSH series designed for high-performance electronic applications. This PCB socket features 100 contacts arranged in two rows with a fine 0.64 mm pitch, making it suitable for dense electronic circuits requiring reliable and precise connections.

The contact material is phosphor bronze plated with gold to ensure excellent electrical conductivity and corrosion resistance. The socket's housing is fabricated from liquid crystal polymer, providing superior mechanical strength and stability under varied temperature conditions ranging from -55°C to 125°C.

This PCB socket supports a maximum current rating of 1.8 amps and voltage of 285 volts, ideal for various industrial, laboratory, and commercial electronics projects. Its right angle orientation and surface mount technology facilitate easy assembly and board-to-board connectivity in compact spaces.

Features include a row pitch of 5.73 mm, supporting up to 250 positions and stack heights between 5 mm and 16 mm. The product is also designed to handle high data rates up to 9.5 GHz and 19 Gbps, making it suitable for high-speed digital communications and signal applications.

Applications span industrial automation, telecommunications, embedded systems, and advanced manufacturing processes requiring durable and high-precision PCB sockets. Rated for 1.8A current and 285V voltage operation. Gold plated phosphor bronze contacts for reliable conductivity.

Durable liquid crystal polymer housing. Temperature range from -55°C to 125°C. Surface mount design with right angle orientation. Supports high-speed data communication up to 19 Gbps. Flexible stack heights and up to 250 positions.

Explore more PCB Sockets and high-quality connectors at EnvMart for your electronics needs.
