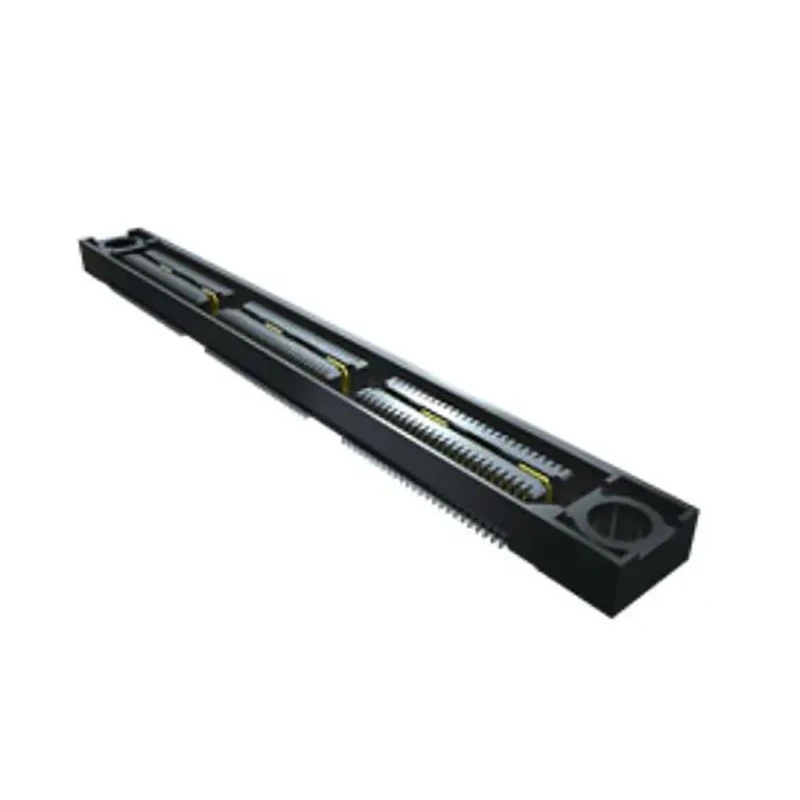

Samtec QSH Series Right Angle Surface PCB Socket 50-Contact 2 Row 0.64mm Pitch Solder QSS-025-01-L-D-RA-LS1

Samtec QSS-025-01-L-D-RA-LS1 is a high-performance right angle surface mount PCB socket designed to provide secure and reliable electrical connections in advanced electronic assemblies. This socket features 50 contacts arranged in 2 rows with a fine 0.64 mm pitch, enabling dense, compact PCB layouts suitable for modern electronic devices.

Made with a liquid crystal polymer housing, it offers excellent mechanical strength and thermal stability. The phosphor bronze contacts are gold-plated to ensure optimal conductivity and corrosion resistance. This connector supports a current rating of 1.8 A and voltage rating of 285 V for demanding power applications.

The socket’s design includes a 5.73 mm row pitch and right angle orientation for effective board-to-board connections, facilitating ease of installation and maintenance. It is rated to operate reliably within a wide temperature range of -55°C to 125°C, making it suitable for industrial, laboratory, telecommunications, and manufacturing environments. The QSH series supports high-speed signals up to 9.5 GHz and data rates up to 19 Gbps, ideal for high-frequency electronic signal transmission.

This PCB socket is suitable for use in electronic equipment requiring robust and precise connector solutions, including computing hardware, electronic test equipment, telecommunications devices, and industrial control systems. Its surface mount termination type is optimized for soldering onto printed circuit boards, ensuring mechanical stability and consistent electrical performance.

Features a right angle orientation for efficient board-to-board connection. Constructed with liquid crystal polymer housing material for durability. Supports a current rating of 1.8 A and voltage up to 285 V. Phosphor bronze contacts plated with gold ensure reliable conductivity.

Designed for surface mount with 5.73 mm row pitch to accommodate precise PCB layouts. Operating temperature range from -55°C to 125°C suits various industrial environments. Part of the QSH series, supporting high-speed signals up to 9.5 GHz and 19 Gbps data rate.

This Samtec QSH Series PCB socket supports a wide range of industrial and commercial applications requiring reliable and durable connectors. Its high-speed signal capability and robust construction make it an excellent choice for construction of advanced electronic devices and assemblies. Explore more in the PCB Sockets category at EnvMart for complementary components and solutions.
