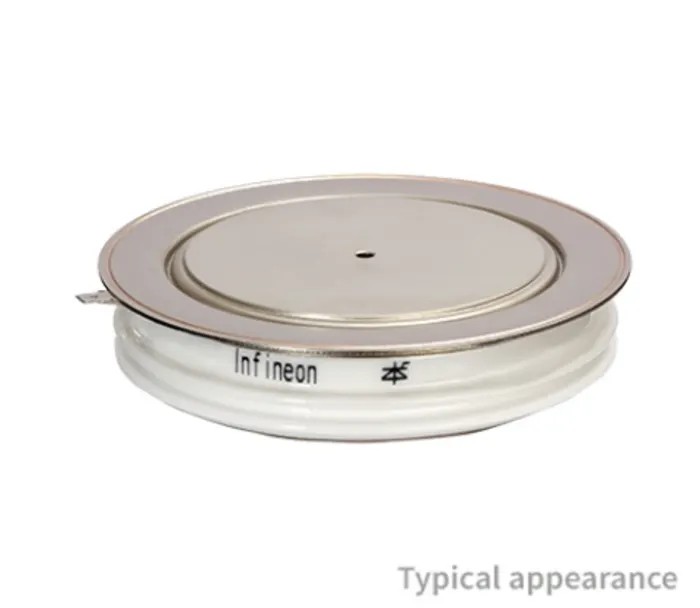

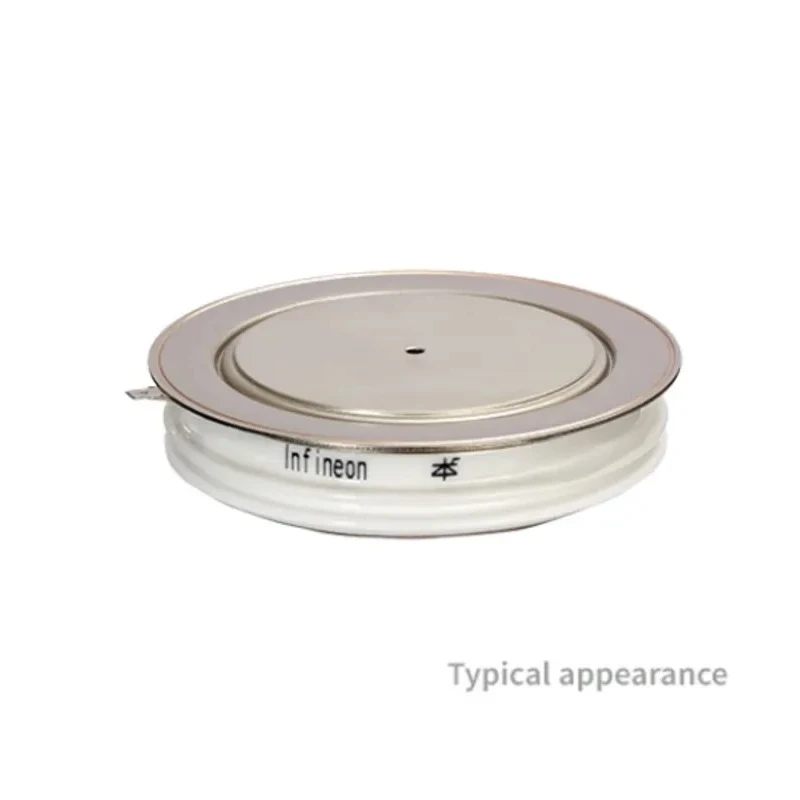

Infineon Thyristor 1800 V, 3800 A, 250 mA, 53 kA, 1.28 V, PCT Type, TO-200 Package T3800N18TOFVTXPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | T3800N18TOFVTXPSA1 |
| Series | T3800N |
| Maximum Operating Temperature | 135°C |
| Package Type | TO-200 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 4 |
| Rated Average On-State Current Irms | 3800A |
| Thyristor Type | PCT |
| Repetitive Peak Reverse Voltage VDRM | 1800V |
| Surge Current Rating | 53kA |
| Maximum Gate Trigger Current Igt | 250mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2.5V |
| Peak On-State Voltage | 1.28V |
Key Features
- Rated average on-state current of 3800 A ensures robust power handling.
- PCT thyristor type suitable for industrial applications.
- TO-200 package offers reliable mounting and durability.
- High surge current rating of 53 kA provides excellent overload protection.
- Maximum gate trigger current of 250 mA allows precise control.
- Minimum operating temperature of -40°C to maximum 135°C supports wide temperature ranges.
- Peak on-state voltage of 1.28 V minimizes power dissipation.
- Four-pin design for stable connectivity and performance.
Product Description
Infineon T3800N18TOFVTXPSA1 thyristor is a high-performance PCT thyristor rated for 1800 V repetitive peak reverse voltage and 3800 A average on-state current. It features a low peak on-state voltage of 1.28 V, contributing to efficient power conversion. This device is housed in a TO-200 industrial standard package with robust hermetic sealed ceramic housing, making it highly reliable and suitable for demanding environments.
Designed to operate from -40°C to +135°C, this thyristor supports extended temperature ranges typical of industrial and power control applications. The 53 kA surge current rating offers outstanding capability for handling short duration overloads, while the 250 mA maximum gate trigger current ensures responsive triggering performance.
With a 4-pin configuration, the device provides stable electrical connections. It excels in UPS-Bypass circuitry and other high current applications requiring robust phase control. While it does not conform to automotive standards, its industrial-grade build ensures durability and longevity.
This product embodies Infineon's commitment to quality semiconductor components with high current capacity and operational stability. The T3800N18TOFVTXPSA1 thyristor is ideal for industrial machinery, power electronics, manufacturing equipment, and energy systems requiring precise and reliable power switching components.
Rated average on-state current of 3800 A ensures robust power handling. PCT Thyristor type suitable for industrial applications. TO-200 package offers reliable mounting and durability. High surge current rating of 53 kA provides excellent overload protection.
Maximum gate trigger current of 250 mA allows precise control. Minimum operating temperature of -40°C to maximum 135°C supports wide temperature ranges. Peak on-state voltage of 1.28 V minimizes power dissipation. Four-pin design for stable connectivity and performance.
Ideal for UPS-Bypass and industrial power control environments.
For additional technical design resources, 3D models, and schematics, Infineon and related engineering software tools offer comprehensive support. This product is part of EnvMart’s semiconductor offerings focused on industrial-grade power control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated average on-state current of this thyristor is 3800 A, ensuring robust power handling capabilities.
This thyristor has a maximum repetitive peak reverse voltage of 1800 V.
The surge current rating of this model is 53 kA, providing excellent overload protection.
The peak on-state voltage for this thyristor is 1.28 V, which helps minimize power dissipation.
The maximum gate trigger current for this thyristor is 250 mA, allowing for precise control.
This model can operate within a temperature range of -40°C to +135°C.
The thyristor is housed in a TO-200 package, which offers reliable mounting and durability.
This model features a four-pin design for stable connectivity and performance.
This thyristor is a PCT type, suitable for industrial applications.
The maximum holding current for this model is 300 mA.
No, this thyristor does not conform to automotive standards.
This thyristor is designed for industrial machinery, power electronics, manufacturing equipment, and energy systems requiring robust phase control.
