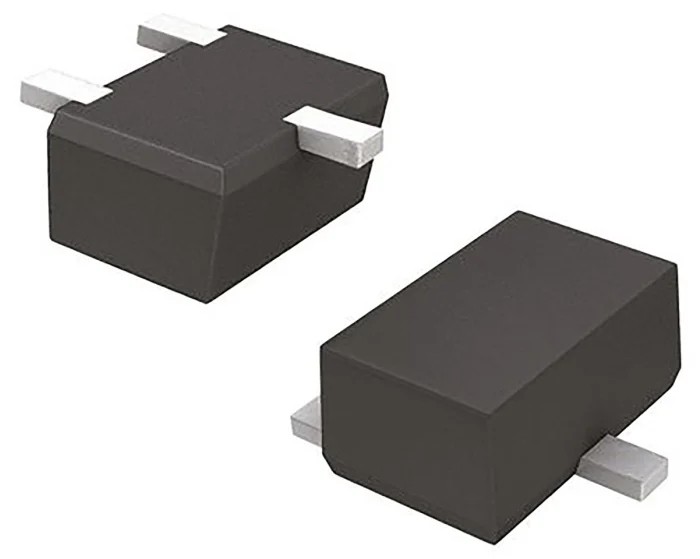

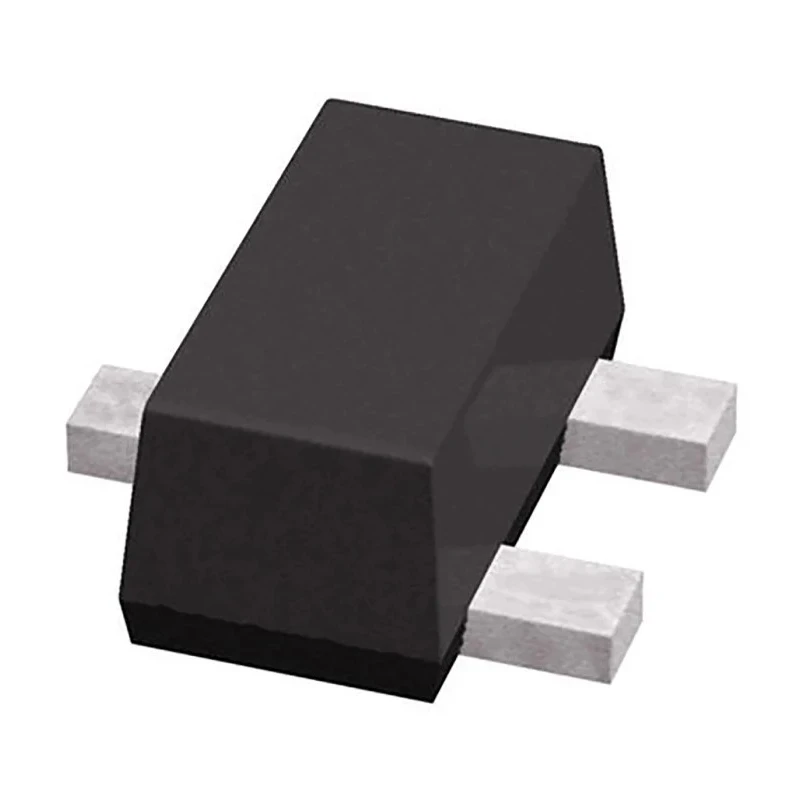

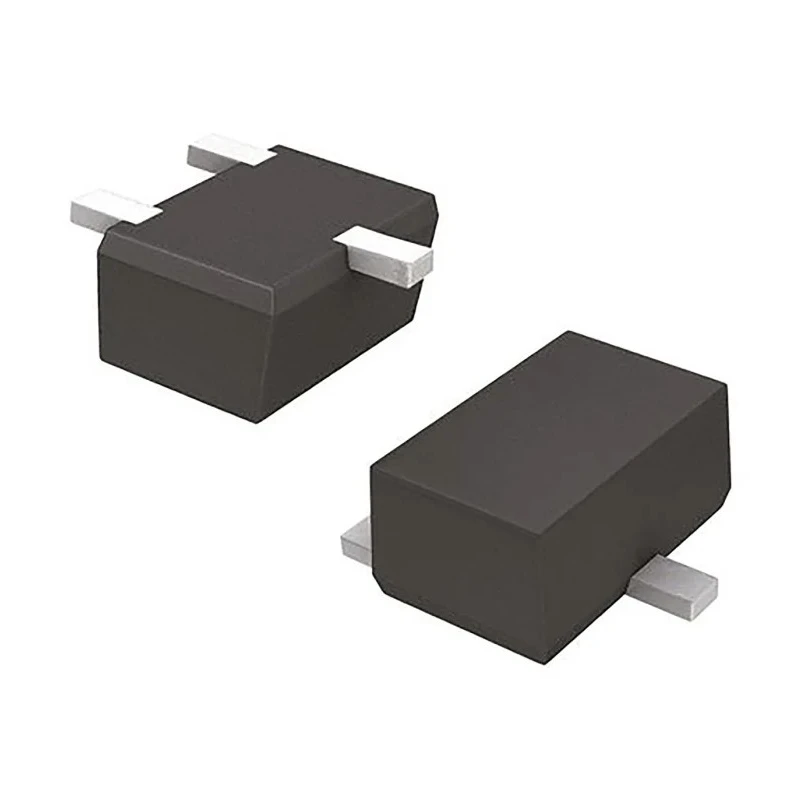

ROHM PNP Small-Signal Transistor 3-Pin SOT-323 -100 mA, -50 V, 200 mW Power Dissipation 2SAR523UBTL

ROHM 2SAR523UBTL is a PNP small-signal transistor designed in a compact 3-Pin SOT-323 surface mount package, ideal for electronic circuits requiring efficient amplification with low current and voltage ratings.

This transistor supports a maximum DC collector current of -100 mA and a collector emitter voltage of -50 V, along with a maximum power dissipation of 200 mW. Its current gain (hFE) is rated at 120, facilitating reliable low-noise amplification in signal processing applications.

With physical dimensions of 2.1 mm length, 1.35 mm width, and 1.05 mm height, it suits dense PCB layouts without compromising electrical performance. The transistor operates at frequencies up to 300 MHz, suitable for switching and amplification tasks in telecommunications, consumer electronics, and industrial control systems.

The maximum operating temperature is rated at 150°C, allowing dependable operation in demanding environments. This product is a single transistor configuration with PNP polarity, supporting surface mount technology for modern manufacturing processes.

The maximum emitter base voltage is -6 V with a collector base voltage of -50 V, providing safe operating limits. It is not certified for automotive standards but is ideal for general purpose electronic applications in industrial, laboratory, and manufacturing contexts.

This 3-pin transistor enhances compact circuit design. Offers efficient amplification with high gain and frequency response. Surface mount package type supports automated assembly lines. Endorsed for reliable operation up to 150°C ambient temperature.

Ideal in communications, signal amplification, and switching applications.
