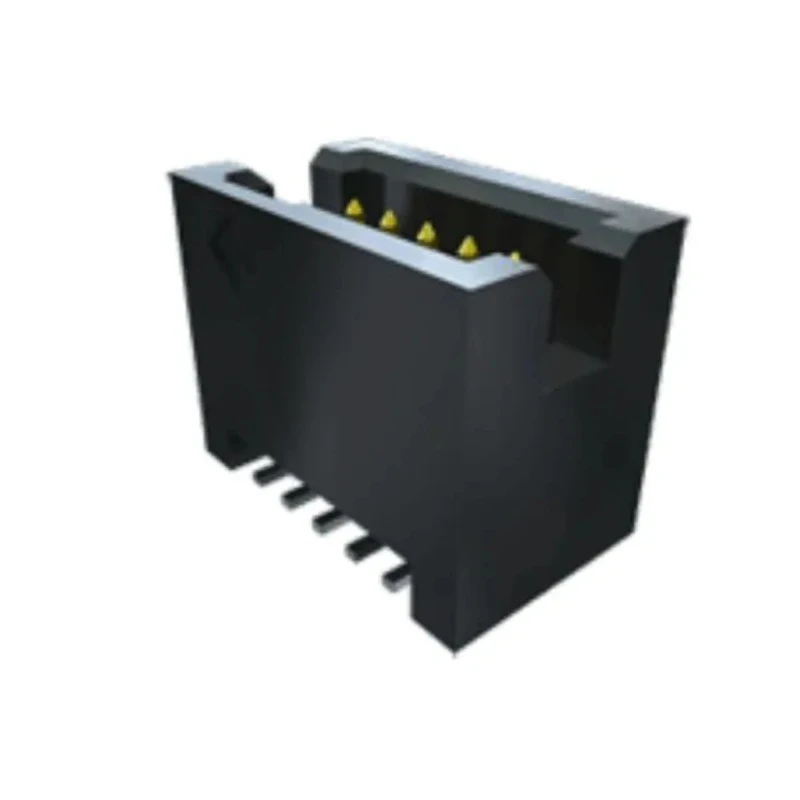

Samtec TFC Series Vertical Surface PCB Header, 100 Contact(s), 1.27 mm Pitch, 2 Row, Shrouded TFC-150-02-F-D-A

Samtec TFC-150-02-F-D-A is a high-quality vertical surface mount PCB header designed with 100 male contacts arranged in 2 rows and a pitch of 1.27 mm. This shrouded board-to-board connector ensures reliable electrical connections in compact electronic assemblies.

The contacts are made from phosphor bronze and plated with gold to enhance conductivity and resist corrosion, while the housing is fabricated from Liquid Crystal Polymer, providing excellent structural integrity and thermal resistance.

Rated for 3.1A current and 250V operating voltage, this connector supports demanding power and signal transmission requirements in industrial, commercial, and consumer electronics. It withstands operating temperatures from -55°C up to 125°C, making it suitable for harsh environments.

The connector’s surface mount termination type is optimized for soldering onto PCB pads, enabling robust mechanical and electrical connections. The shrouded design protects the contacts during mating and ensures proper alignment to minimize installation errors.

Typical applications include electronic equipment, communication devices, instrumentation, and embedded system boards where compact, reliable board-to-board connections are essential.

Provides a current rating of 3.1A for reliable electrical performance. Constructed with phosphor bronze contacts plated in gold for durability and corrosion resistance. Housing made from Liquid Crystal Polymer for high temperature and mechanical stability.

Designed for surface mount board-to-board connections with vertical orientation. Operates between -55°C and 125°C ensuring broad temperature tolerance. Rated for a maximum voltage of 250V suitable for various electronic applications.

Termination type is solder, facilitating traditional surface mounting techniques. Shrouded connector provides protection and alignment during mating.

This Samtec PCB Header is part of the well-regarded TFC series, delivering consistent quality and performance for professional electronics manufacturing and repair. Explore additional Samtec connectors and PCB components in the Electronics & Electricals category at EnvMart for comprehensive sourcing solutions.
