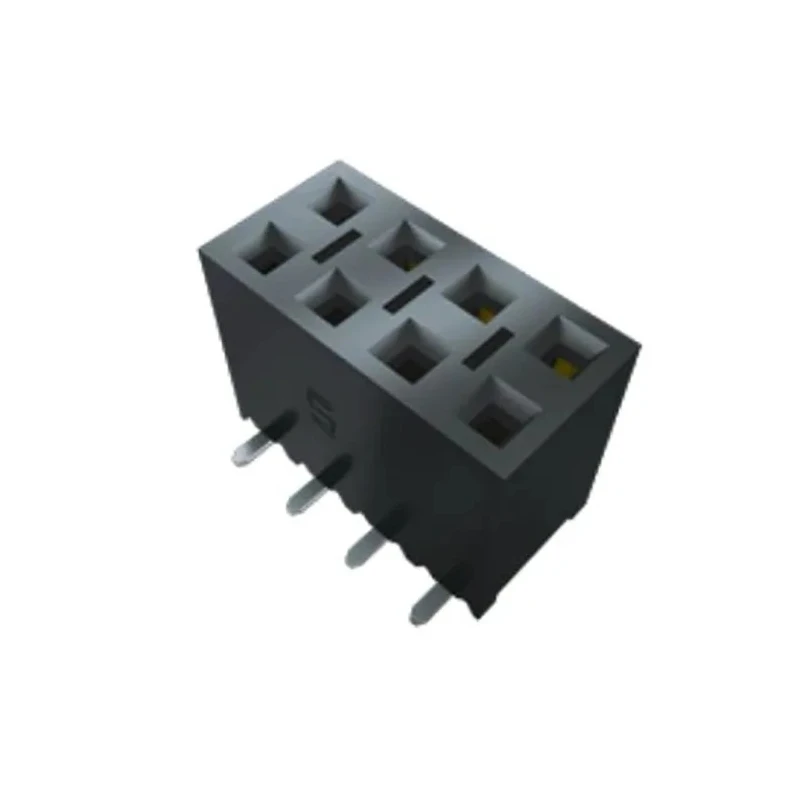

Samtec SSM Series Vertical Surface Mount PCB Socket, 20 Contact, 2 Row, 2.54 mm Pitch, Solder Termination SSM-110-L-DV-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 572V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 5.2A |
| Model | SSM-110-L-DV-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Surface Mount Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Constructed with durable black liquid crystal polymer housing for high reliability.
- Contacts made of phosphor bronze with 0.25 μm gold plating for excellent conductivity and corrosion resistance.
- Supports current rating of 5.2 A with a maximum operating voltage of 572 V.
- Designed for vertical orientation with surface mount solder termination for PCB assembly.
- Operating temperature range from -55 °C to 125 °C suitable for diverse environments.
- Row pitch measures 2.5 mm to maintain consistent electrical performance.
- Connector system optimized for board-to-board interfacing with female contact gender.
- Complies with industry standards though no specific certifications noted.
Product Description
Samtec SSM-110-L-DV-TR is a vertical surface mount PCB socket engineered for precise and reliable board-to-board electrical connections in electronics manufacturing and assembly. It features 20 contacts arranged in two rows with a 2.54 mm pitch and utilizes a black liquid crystal polymer housing that ensures mechanical stability and resistance to high temperatures.
The contacts are fabricated from phosphor bronze and plated with 0.25 microns of gold, providing superior electrical conductivity and a robust plating thickness to prevent corrosion over extended operational periods. This socket supports a current rating of 5.2 amps per contact and operates up to a voltage of 572 volts, making it suitable for various high-performance electronic applications.
This connector supports a vertical orientation with surface mount solder termination, facilitating integration into densely packed printed circuit board designs. Its operating temperature range spans from -55 °C to 125 °C, making it adaptable to extreme temperature environments commonly encountered in industrial and commercial electronics.
The 2-row configuration with a 2.5 mm row pitch ensures reliable mechanical and electrical contact while allowing compact assembly. The female contact gender design aligns with standard PCB connector requirements for signal integrity and ease of installation.
Constructed from liquid crystal polymer housing for enhanced durability. Phosphor bronze contacts with gold plating for optimal connectivity. Rated for 5.2 A current and 572 V voltage for demanding circuitry. Surface mount solder termination suited for automated PCB assembly.
Wide operational temperature range of -55 °C to 125 °C for versatility. 20-contact, 2-row arrangement with 2.54 mm pitch for compact design. Vertical orientation supports board-to-board connections. Designed for industrial, commercial, and electronic manufacturing applications.
This Samtec PCB Socket is ideal for applications in industrial control systems, telecommunications equipment, consumer electronics, and embedded systems requiring high reliability and consistent electrical performance.
Explore the full range of high-quality PCB connectors and sockets available on EnvMart to enhance your electronic assemblies with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 572 volts.
It supports a current rating of 5.2 amps per contact.
The operating temperature range is from -55 °C to 125 °C.
This model features 20 contacts arranged in two rows.
The row pitch measures 2.54 mm.
The housing is made of liquid crystal polymer, and the contacts are made of phosphor bronze with gold plating.
It uses solder termination for PCB assembly.
This model is designed for vertical orientation.
The contact gender is female, suitable for board-to-board connections.
It supports a board-to-board connector system.
The country of origin for this socket is India.
It is suitable for industrial control systems, telecommunications equipment, consumer electronics, and embedded systems.
