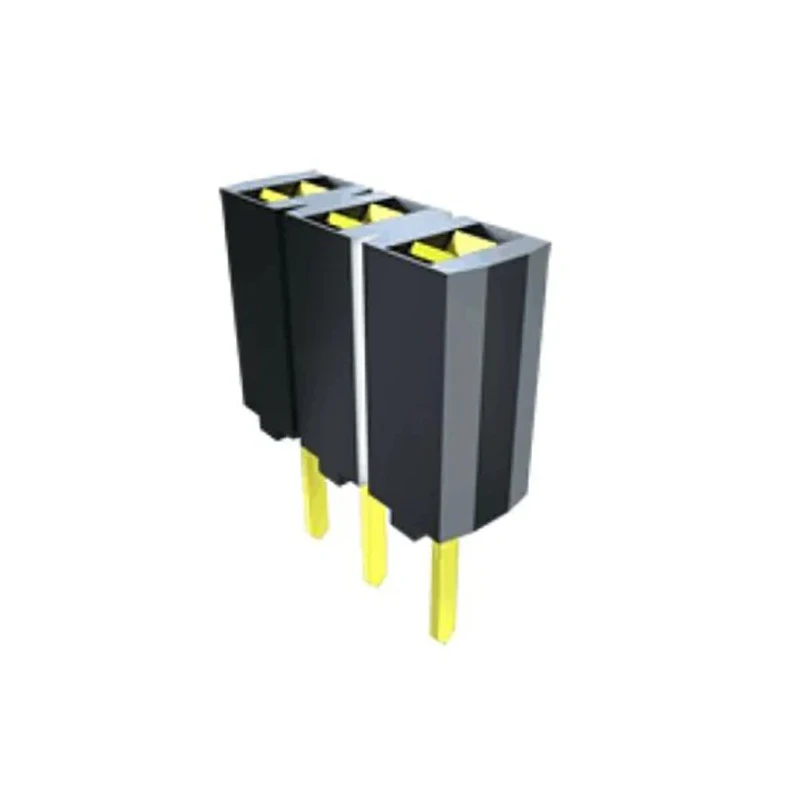

Samtec SSA Series Straight Through Hole PCB Socket 4-Contact 1 Row 2.54 mm Pitch Through Hole SSA-104-W-G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Model | SSA-104-W-G |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | SSA |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Sub Type | Cost-Effective Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket features 4 female contacts arranged in a single row.
- It uses a 2.54 mm pitch for precise PCB alignment.
- Constructed with black PET polyester housing material for durability.
- Contacts are phosphor bronze with 0.25 μm gold plating for excellent conductivity.
- Designed for through hole mounting with straight orientation.
- Operating temperature range from -55°C to 125°C ensures reliability in diverse environments.
- The product complies with RoHS standards for environmental safety.
- Contact voltage rating is 1000 VRMS with insulation resistance of minimum 5000 MW.
Product Description
Samtec SSA-104-W-G is a straight through hole PCB socket in the SSA series, designed for reliable electronic connections with a 4-contact configuration in a single row. It features a 2.54 mm pitch and a through hole mounting type suitable for board-to-board connector systems.
This socket uses a robust black polyester housing material rated UL 94V-0 for flame resistance, ensuring safety in industrial and manufacturing environments. The contacts made of phosphor bronze are plated with 0.25 μm gold to provide superior electrical performance and corrosion resistance.
Operating across a broad temperature range from -55°C to 125°C, this socket is adaptable for various industrial, laboratory, and commercial electronic applications. It meets RoHS compliance, making it an environmentally responsible choice.
The SSA series is known for cost-effective socket strips, providing economical solutions in PCB connector design. The socket supports a voltage withstand of 1000 VRMS and features a high insulation resistance of at least 5000 MW, ensuring reliable signal integrity.
The socket features 4 female contacts arranged in a single row. It uses a 2.54 mm pitch for precise PCB alignment. Constructed with black PET polyester housing material for durability. Contacts are phosphor bronze with 0.25 μm gold plating for excellent conductivity.
Designed for through hole mounting with straight orientation. Operating temperature range from -55°C to 125°C ensures reliability in diverse environments. The product complies with RoHS standards for environmental safety.
Contact voltage rating is 1000 VRMS with insulation resistance of minimum 5000 MW. The socket strip series is SSA, providing cost-effective socket solutions.
This PCB Socket is ideal for use in electronic components manufacturing, industrial equipment, and applications requiring dependable board-to-board connections. Samtec’s SSA series offers a balance of quality and cost-effectiveness for a wide range of circuit board designs.
Explore more electronic components and connectors on EnvMart to find compatible parts and enhance your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a pitch of 2.54 mm, ensuring precise alignment on the PCB.
The maximum operating temperature for this socket is 125°C, making it suitable for various applications.
It has 4 female contacts arranged in a single row.
The housing is constructed from black PET polyester, providing durability.
The insulation resistance is a minimum of 5000 MW, ensuring reliable electrical performance.
Yes, this socket complies with RoHS standards, indicating it meets environmental safety requirements.
It is designed for through hole mounting, suitable for board-to-board connections.
The contact voltage rating is 1000 VRMS, which is suitable for various electronic applications.
The minimum operating temperature is -55°C, allowing it to function in diverse environments.
It uses a board-to-board connector system, making it ideal for interconnecting PCBs.
The contacts are made of phosphor bronze and are plated with 0.25 μm gold for excellent conductivity.
The SSA series is known for its cost-effective socket strips, providing economical solutions for PCB connector design.
