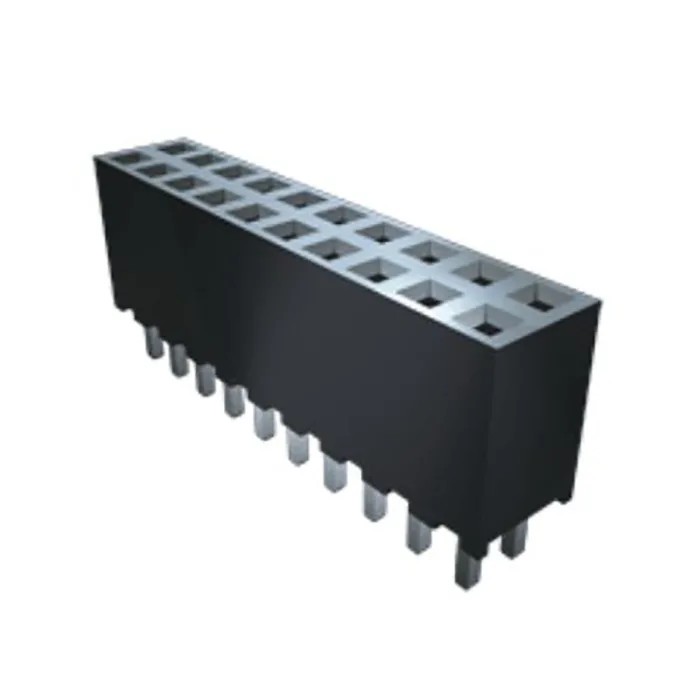

Samtec Cost-Effective 50-Contact 2 Row 2 mm Pitch Straight Through Hole PCB Socket SQT-125-03-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 281V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.1A |
| Model | SQT-125-03-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SQT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Cost-Effective Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Operates at a voltage rating of 281 V for robust electronic connectivity.
- Rated for a current of 5.1 A per pin ensuring reliable power handling.
- Constructed with a liquid crystal polymer housing for durability and stability.
- Gold-plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.
- Supports operating temperature range from -55 °C to 125 °C suitable for various industrial conditions.
- Features a straight orientation for easy board-to-board connection.
- Designed as a two-row socket strip ideal for cost-effective PCB connectivity solutions.
- Female contact gender compatible with male pin headers in board-to-board systems.
Product Description
Samtec SQT-125-03-L-D is a cost-effective PCB socket designed for through-hole mounting applications requiring dependable board-to-board connectivity. Featuring 50 contacts arranged in two rows with a 2 mm pitch, this socket strip offers a practical solution for solder termination in electronic assemblies.
The socket is constructed with durable liquid crystal polymer housing providing electrical insulation and mechanical robustness. Contacts are crafted from phosphor bronze, then gold-plated to enhance electrical conductivity and resist corrosion.
This PCB socket supports a voltage rating of 281 volts and a current capacity of 5.1 amperes per pin, making it suitable for mid-power electronic devices. It operates reliably in a wide temperature range from -55 degrees Celsius up to 125 degrees Celsius, allowing use in diverse industrial and commercial environments.
The connector system employs a female contact gender and maintains a straight orientation, simplifying the alignment and connection of mating components. It is part of the SQT series, recognized for cost-effective, performance-driven PCB sockets.
Operates at 281 V voltage rating. Current rating of 5.1 A per contact. Liquid crystal polymer housing material. Gold-plated phosphor bronze contacts. Temperature range: -55 °C to 125 °C. Straight orientation for through-hole mounting.
Two-row, 50-contact configuration. Solder termination type.
This PCB Socket is ideal for electronics manufacturing, industrial controls, telecommunication equipment, and other applications requiring reliable and cost-effective board connectivity solutions.
Discover more such PCB connectors and sockets at EnvMart for enhanced electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage rating of 281 volts, making it suitable for various electronic applications.
The socket is rated for a current of 5.1 amperes per pin, ensuring reliable power handling.
It features a housing made of liquid crystal polymer and contacts made from phosphor bronze, which are gold-plated for enhanced conductivity and corrosion resistance.
The operating temperature range is from -55 °C to 125 °C, suitable for diverse industrial conditions.
This model features 50 contacts arranged in two rows with a 2 mm pitch.
It uses solder termination, which is common for through-hole mounting applications.
The socket has a straight orientation, facilitating easy board-to-board connections.
It has a female contact gender, making it compatible with male pin headers in board-to-board systems.
The country of origin for this product is India.
It is part of the SQT series, which is recognized for cost-effective PCB connectivity solutions.
It is ideal for electronics manufacturing, industrial controls, and telecommunication equipment that require reliable board connectivity.
This model is designed for through-hole mounting, which is standard for PCB sockets.
