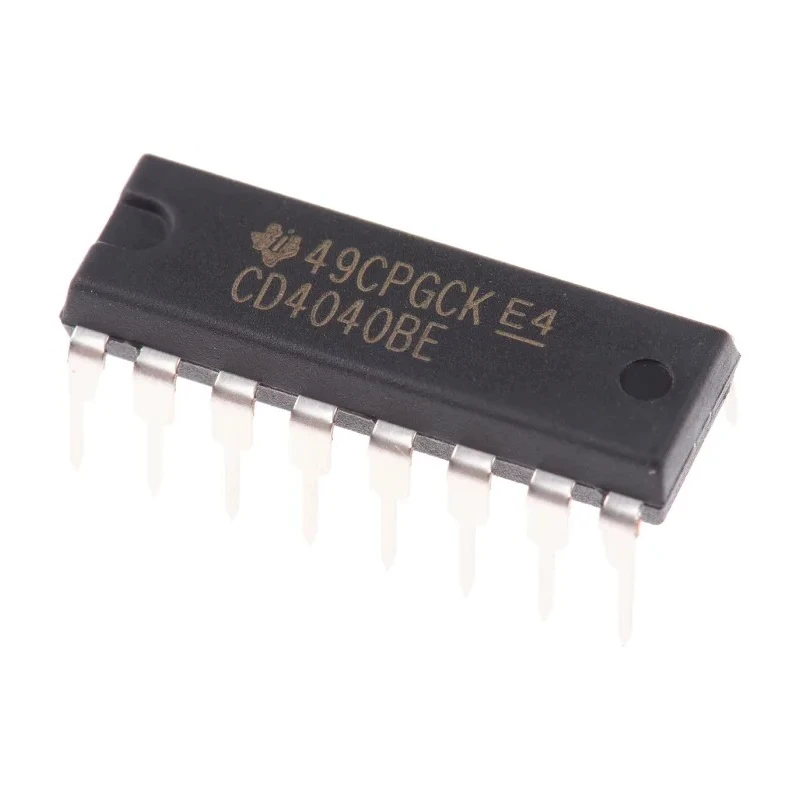

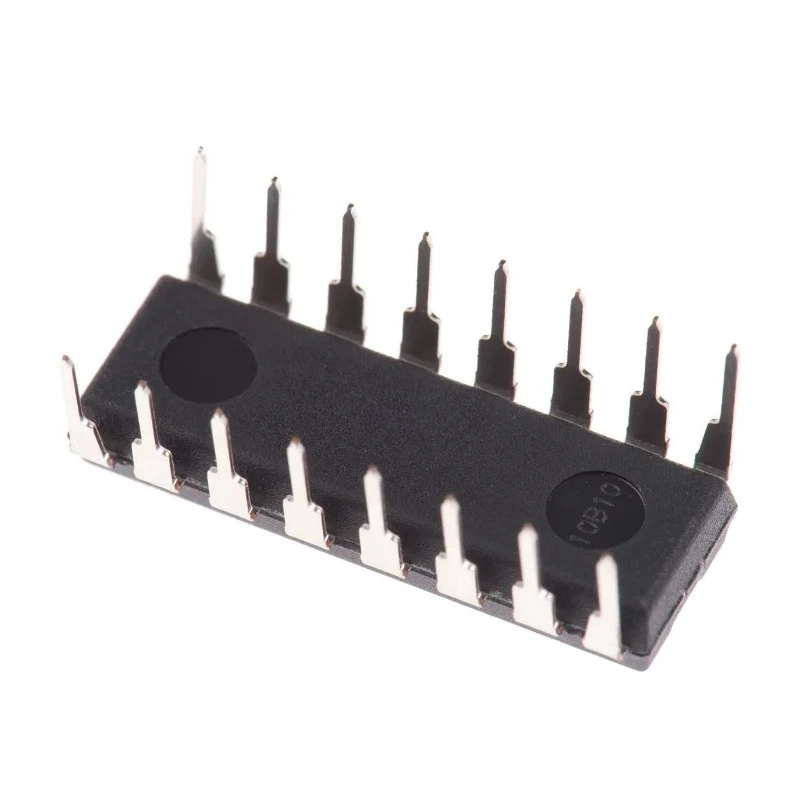

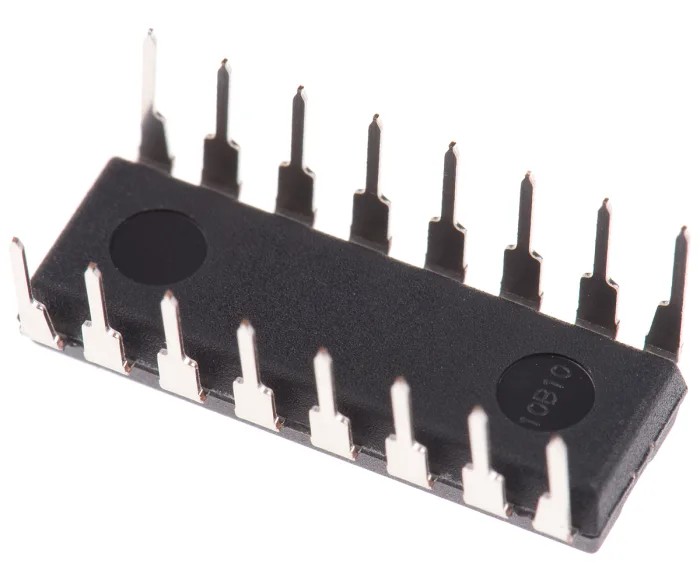

Texas Instruments 12-Stage Through Hole Binary Counter 4000 Series 16-Pin PDIP CD4040BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.69mm |
| Model | CD4040BE |
| Mount Type | Through Hole |
| Series | CD4040B |
| Maximum Operating Temperature | 125°C |
| Number Of Stages | 12 |
| Package Type | PDIP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 18V |
| Logic Family | 4000 |
| Logic Function | Counter, Divider |
| Minimum Supply Voltage | 3V |
| Direction Type | Uni-Directional |
| Reset Type | Asynchronous |
| Counter Type | Binary |
| Wide operating voltage range | 3 to 18V |
| Counter IC Clock Frequency | 12 MHz (5V), 3.5 MHz (10V), 8 MHz (15V) |
| Preset Type | Asynchronous |
Key Features
- Features 12 binary counter stages for versatile counting applications.
- Mounted in a 16-pin PDIP package suitable for through hole circuits.
- Supports wide supply voltage from 3 to 18 volts for flexible power requirements.
- Operates with counter clock frequencies up to 12 MHz at 5 V supply.
- Includes asynchronous reset and preset functions for control convenience.
- Uni-directional counting direction ensuring stable operation.
- Compliant with RoHS standards for environmental safety.
- Operating temperature range from minus 55 to 125 degrees Celsius suitable for industrial environments.
Product Description
Texas Instruments CD4040BE is a 12-stage binary counter from the 4000 series CMOS logic family intended for through hole mounting. This 16-pin PDIP device supports a wide operating voltage range from 3 V to 18 V, making it highly adaptable for various electronic designs.
The counter features asynchronous reset and preset capabilities, facilitating precise control of counting operations. It operates uni-directionally and can clock frequencies up to 12 MHz at 5 V supply (with reduced frequencies at higher voltages).
The CD4040BE maintains stable performance over a wide temperature range from -55°C to 125°C, making it suitable for industrial and commercial electronic applications. Its compact size of 19.69 mm length and 4.57 mm height enables easy integration into printed circuit boards.
This counter IC is compliant with RoHS directives, confirming it free from hazardous substances and environmentally friendly. Typical applications include frequency division, digital counters, timing circuits, and logic control systems in industrial, laboratory, and educational electronics projects.
12 binary counter stages enable multiple division ratios. Through hole PDIP package simplifies assembly and prototyping. Wide operating voltage and temperature ranges ensure robustness. Asynchronous reset and preset increase flexibility in operation.
Uni-directional count direction ensures consistent timing behavior. RoHS compliant for safer use and disposal. Compact form factor suitable for various industrial electronics. Supports clock frequencies up to 12 MHz at optimal voltage.
Explore the broad range of counters and shift registers for advanced digital design on EnvMart, enhancing your industrial and engineering projects with trusted Texas Instruments components.
