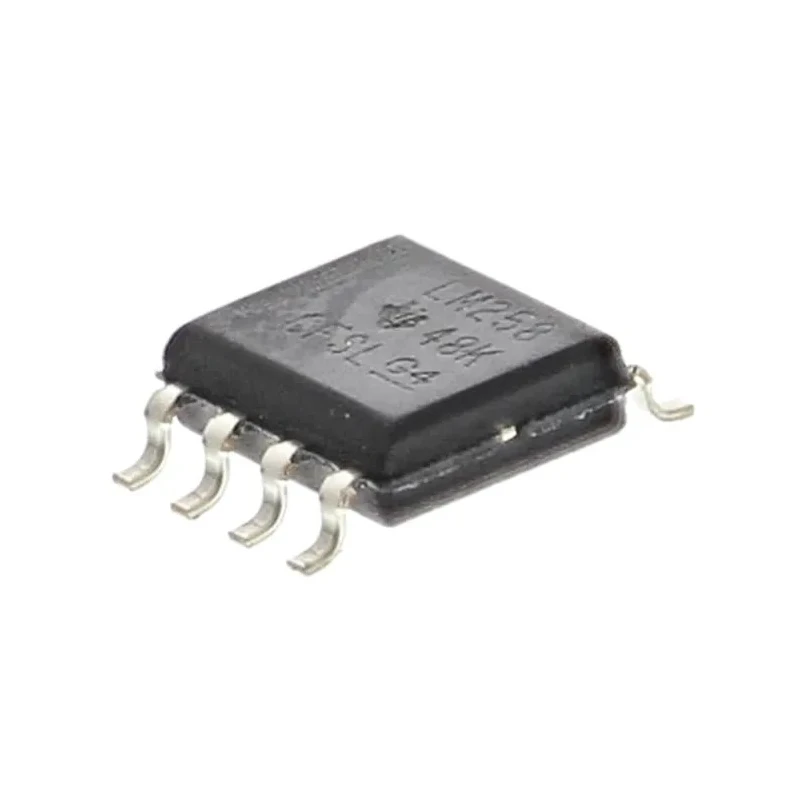

Texas Instruments Operational Amplifier 700 kHz 8-Pin SOIC 30V LM258DR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | LM258DR |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM258 |
| Output Current | -10mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 700kHz |
| Input Bias Current | -300 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.3V/μs |
| Input Offset Current | 100 nA |
| LM258DR2G onsemi, Operational Amplifier, 8-Pin 32V SOICBrand | onsemi |
Key Features
- Dual channel operational amplifier perfect for cost-effective general purpose applications.
- Suitable for surface mount technology with compact SOIC package.
- Operates at supply voltages from 5V to a maximum of 30V.
- Low input bias current of -300 nA and input offset voltage of 7 mV.
- Maximum operating temperature range from -25°C to 85°C ensuring reliability in diverse environments.
- Slew rate of 0.3 V/µs providing moderate speed for analogue signal processing.
- Gain bandwidth product (GBP) of 700 kHz supports a range of amplification needs.
- RoHS compliant design suitable for industrial and commercial applications.
Product Description
The Texas Instruments LM258DR is a dual channel, general purpose operational amplifier housed in an 8-Pin SOIC package. It features a gain bandwidth product of 700 kHz and supports a wide supply voltage range from 5V to 30V, suitable for many electronic circuit applications.
Designed for surface mount technology, this device offers low input bias current of -300 nA and an input offset voltage of 7 mV, ensuring precision in signal amplification. The slew rate of 0.3 V/μs enables effective processing of varying signal frequencies.
Its operational temperature range from -25°C to 85°C allows reliable functioning across industrial and commercial environments. The LM258 series is known for low power consumption and the ability to operate with single supplies including ground-referenced inputs.
This amplifier complies with RoHS standards, making it environmentally friendly and safe for modern electronics manufacturing. Dual channel operational amplifier perfect for cost-effective general purpose applications. Compact 8-pin SOIC surface mount package suits high-density PCB designs.
Operating voltage from 5V to 30V to support various power supply configurations. Low input bias and offset improve signal accuracy. Wide temperature range for industrial usage. Moderate slew rate for general analog signal processing.
RoHS compliant manufacturing quality.
This product is ideal for electronics development, testing instruments, industrial control systems, and laboratory equipment requiring reliable, dual Operational Amplifiers. Explore more devices in the Amplifiers & Comparators category on EnvMart to find complementary solutions for your designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at supply voltages ranging from 5V to a maximum of 30V, making it suitable for various power supply configurations.
The LM258DR measures 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height, housed in an 8-pin SOIC package.
The input bias current of the LM258DR is -300 nA, which helps improve signal accuracy.
The slew rate of this operational amplifier is 0.3 V/μs, providing moderate speed for analog signal processing.
The input offset voltage for the LM258DR is 7 mV, which contributes to its precision in signal amplification.
This operational amplifier features two channels, making it suitable for dual signal amplification applications.
The LM258DR is designed for surface mount technology, making it suitable for high-density PCB designs.
Yes, the LM258DR complies with RoHS standards, ensuring it is environmentally friendly and safe for modern electronics manufacturing.
The minimum operating temperature for the LM258DR is -25°C, allowing it to function in cooler environments.
The output current capability of this operational amplifier is -10 mA, which is suitable for various applications.
