Texas Instruments 4 2-Input XOR Logic Gate, 14-Pin PDIP CD4070BE

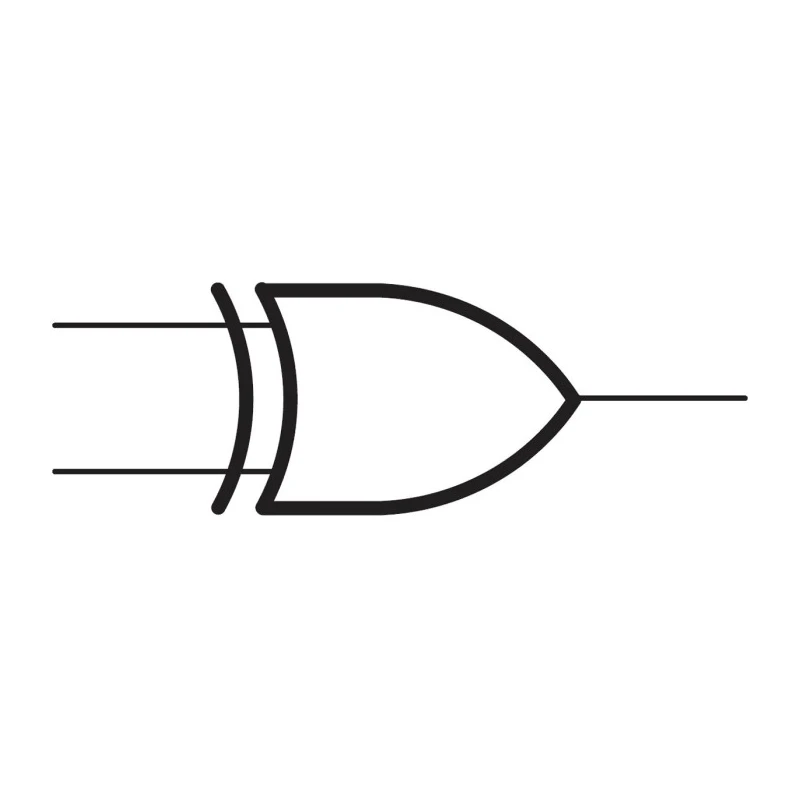

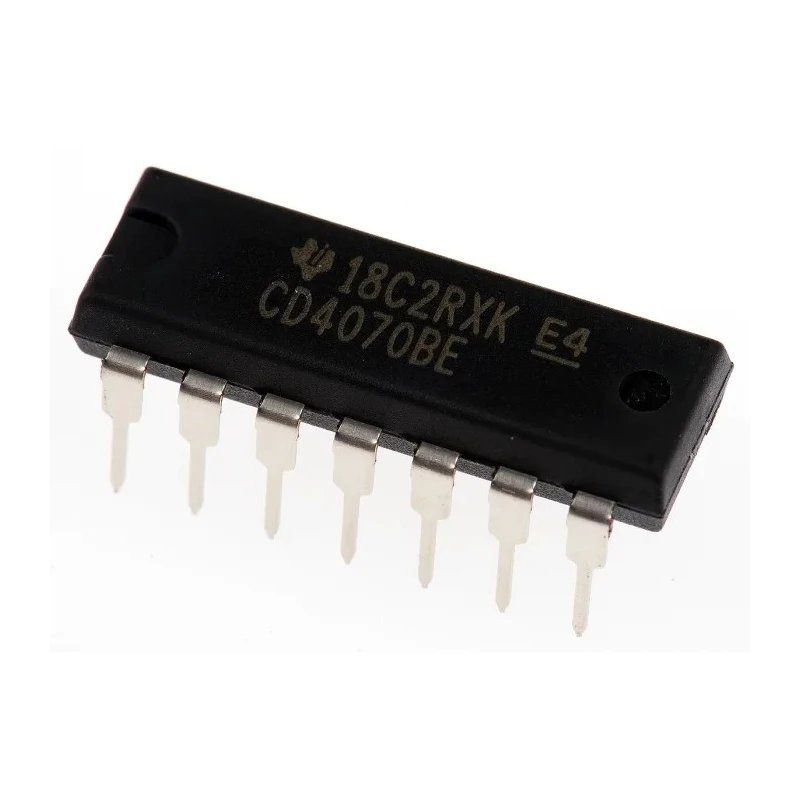

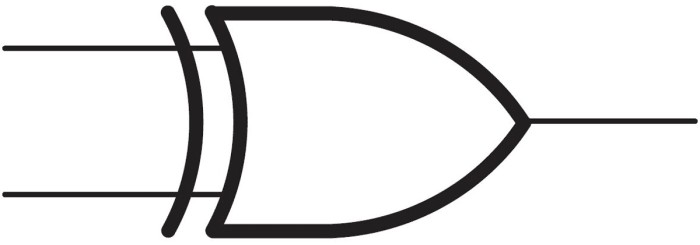

Texas Instruments CD4070BE is a high-quality logic IC featuring four 2-input XOR gates, housed in a 14-pin PDIP package with through-hole mounting. It belongs to the 4000 CMOS logic family, known for low power consumption and reliable digital logic functionality.

This IC supports a wide power supply range from 3V up to 18V, making it versatile for different electronic designs. The device performs with a maximum propagation delay time of 100ns at the specified load capacitance, suitable for various timing-sensitive applications.

Designed to operate over an extended temperature range from -55°C to 125°C, the CD4070BE withstands industrial and demanding environmental conditions. It delivers a maximum high-level output current of -4.2mA and a low-level output current of 4.2mA, suitable for driving typical logic loads.

The device package type is PDIP with 14 pins, facilitating easy integration on breadboards and through-hole PCB designs. It does not include Schmitt trigger inputs, making it appropriate for standard logic gate usage without hysteresis.

The four 2-input XOR gates are often used in digital circuits requiring parity checking, controlled inverters, adders, and various combinational logic operations. The CMOS technology offers low power dissipation and high noise immunity, essential for industrial, computing, and electronic development projects.

Typical applications include electronics prototyping, educational circuit design, automation control, and embedded systems development environments. Explore more logic ICs and components in the Electronics & Electricals semiconductor section for advanced digital logic solutions.

Operates on a wide supply voltage range from 3V to 18V. Maximum propagation delay time of 100 nanoseconds at specified load. Wide operating temperature range of -55°C to 125°C ensuring reliable performance. CMOS logic family 4000 compatible with TTL and CMOS circuits.

Features 4 independent 2-input XOR gates within a single package. Maximum high-level output current of -4.2mA and low-level output current of 4.2mA. Standard 14-pin PDIP package for easy prototyping and breadboard compatibility.

No Schmitt trigger inputs, suitable for standard logic applications. EnvMart offers a broad range of Texas Instruments components and semiconductor devices for industrial, laboratory, and commercial electronics applications.

Explore more products in our Logic Gates category.
