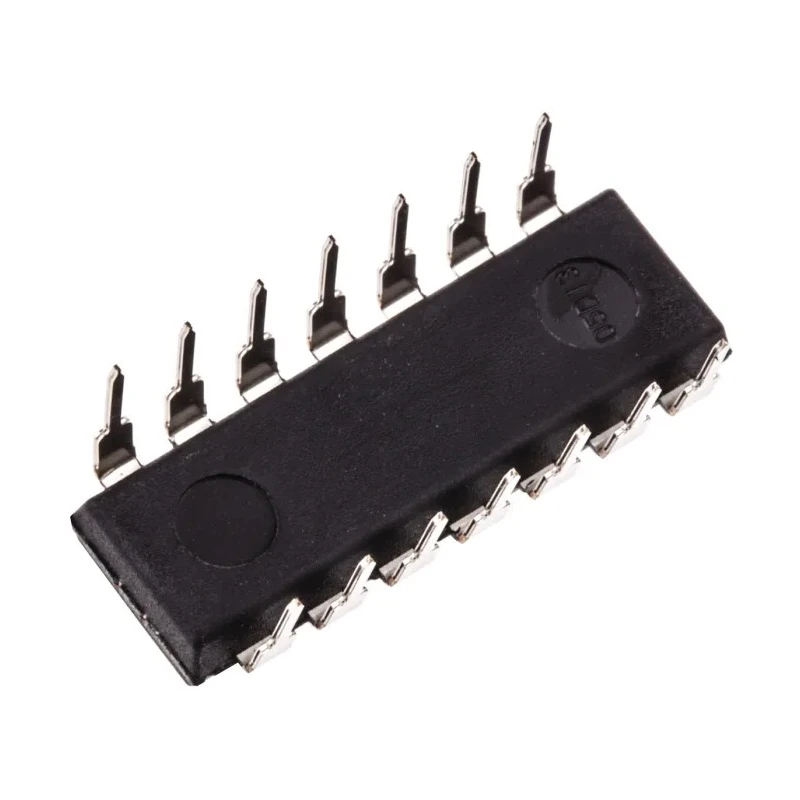

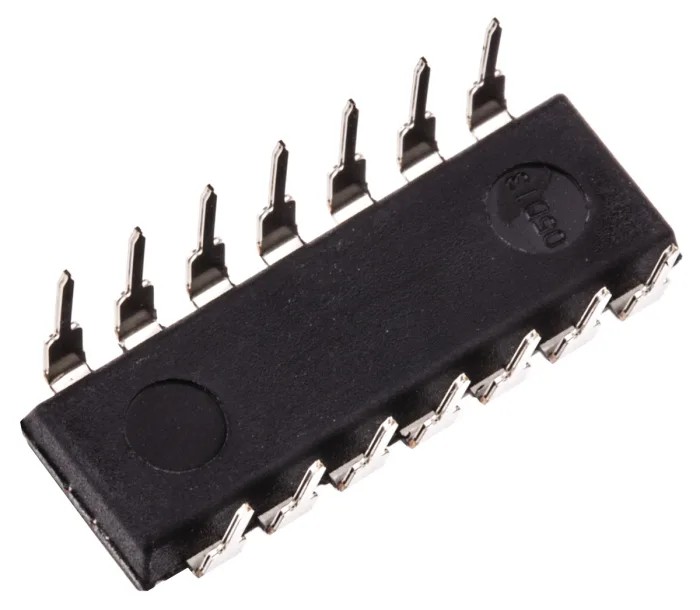

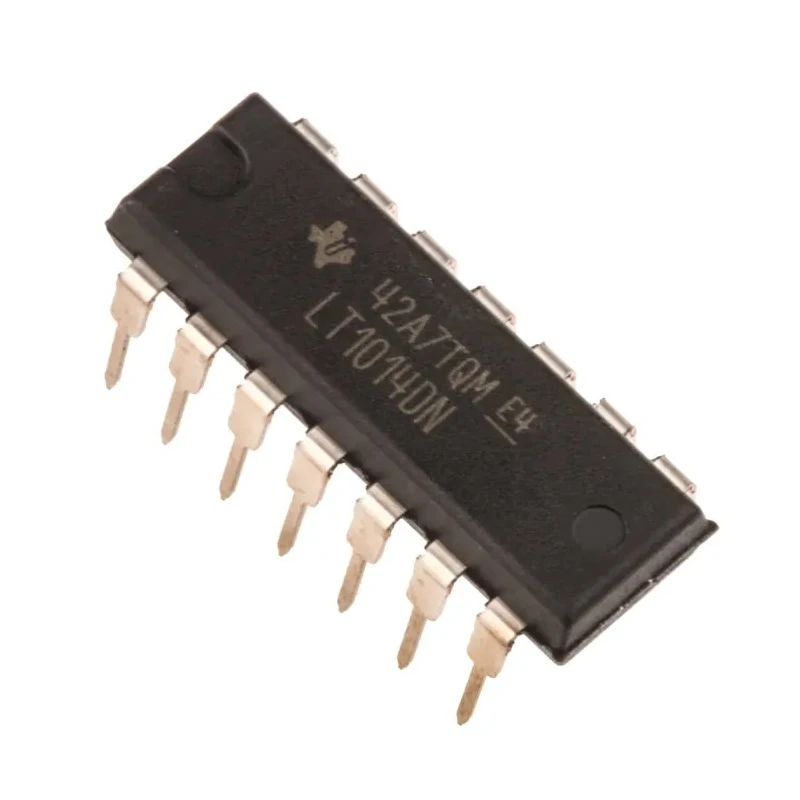

Texas Instruments Precision Operational Amplifier, 1 MHz Gain Bandwidth, 22V Max Supply, 14-Pin PDIP LT1014DN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | LT1014DN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | LT101 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 22V |
| Minimum Supply Voltage | 9V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | -90 nA |
| Slew Rate | 0.4V/μs |
| Input Offset Current | 1.5 nA |
Key Features
- Features four amplifier channels in a single package.
- Suitable for use in demanding electronic circuits requiring stable offset voltage.
- Operates with supply voltages ranging from 9V to 22V.
- Low input bias current of -90 nA and input offset voltage of 300 μV.
- Wide operating temperature range from 0°C to 70°C.
- Slew rate of 0.4 V/μs ensures precise signal amplification.
- Designed with LT101 series technology for quality and reliability.
Product Description
The Texas Instruments LT1014DN is a high precision operational amplifier designed for through-hole mounting, featuring a 14-pin PDIP package. Operating at a gain bandwidth product of 1 MHz and a maximum supply voltage of 22V, this amplifier is ideal for industrial and laboratory electronics applications requiring low offset voltages and stable performance.
With four independent channels per device, it perfectly suits multi-channel signal processing needs. Its low input bias current of -90 nA and minimal input offset voltage of 300 μV make it excellent for circuits where signal integrity is critical. The device reliably operates across a temperature range from 0°C to 70°C, supporting various environmental conditions encountered in industrial and commercial applications.
The LT1014DN’s slew rate of 0.4 V/μs enables effective amplification of rapidly changing signals without significant distortion. Its dimensions of approximately 19.3 mm length, 6.35 mm width, and 4.57 mm height facilitate convenient PCB integration. This operational amplifier does not conform to automotive standards and carries no specific certifications but is made for general semiconductor applications in precision electronic designs.
Typical uses include instrumentation amplifiers, industrial control systems, data acquisition systems, and laboratory equipment requiring precise analog processing. The product is manufactured in India and is supplied new, ensuring reliability for new builds.
Features four amplifier channels in a single package. Low input bias current and offset voltage enhance precision. Wide operating temperature range supports versatile environments. Through-hole mounting and standard PDIP package aid in prototyping and mass production.
Compatible with power supply voltages of 9V to 22V. Explore more Operational Amplifiers and semiconductor products at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LT1014DN has a gain bandwidth product of 1 MHz, making it suitable for various precision applications.
This model can operate with a maximum supply voltage of 22V.
The operational amplifier operates within a temperature range of 0°C to 70°C.
It features four independent amplifier channels in a single package.
The LT1014DN has a low input bias current of -90 nA, which enhances its precision.
The slew rate of this model is 0.4 V/μs, allowing effective amplification of rapidly changing signals.
The dimensions of this operational amplifier are approximately 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
This operational amplifier is designed for through-hole mounting, making it suitable for various PCB applications.
The input offset voltage of this model is 300 μV, contributing to its precision in signal processing.
Typical applications include instrumentation amplifiers, industrial control systems, and laboratory equipment requiring precise analog processing.
It comes in a 14-pin PDIP package, facilitating easy integration into various electronic circuits.
The LT1014DN is manufactured in India.
