Huber+Suhner Series Coaxial Connector Cable Female N Connector 50 Ω Straight Body Solder 24_N-50-3-14/133_NH

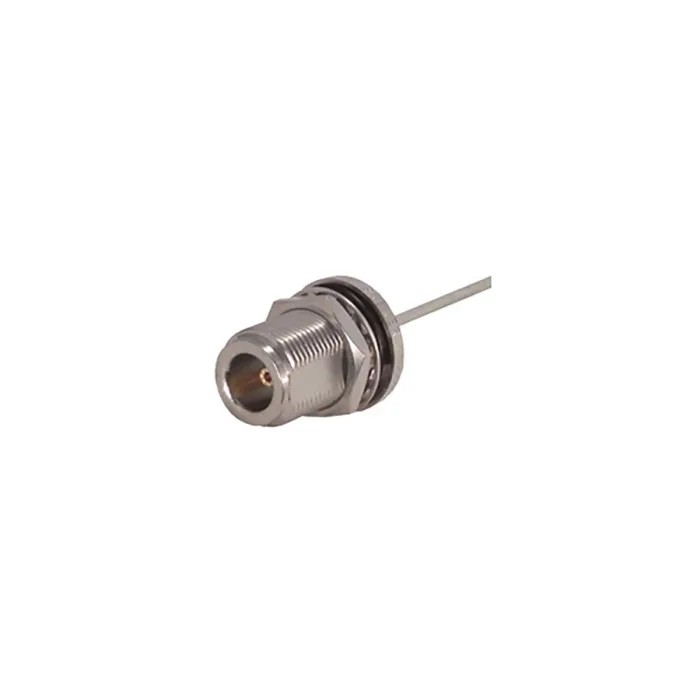

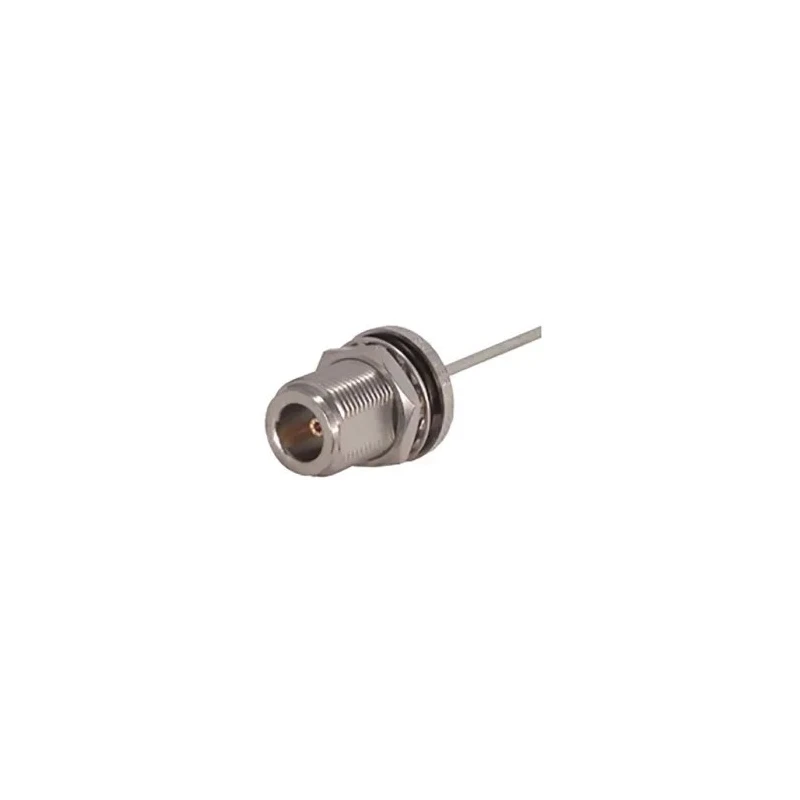

Huber+Suhner 24_N-50-3-14/133_NH series coaxial connector cable features a female N connector with 50 Ω impedance, suitable for demanding RF applications requiring stable and efficient signal transmission. The connector operates efficiently up to 18 GHz, supporting broad frequency applications including telecommunications and industrial electronics.

The connector’s body is made of high-quality brass plated material that provides robustness and resistance to mechanical wear and corrosion. Its contacts are crafted from beryllium copper alloy and plated with gold, enhancing conductivity and minimizing signal loss, critical for precise RF performance.

This cable connector features a solder termination style with a straight orientation, facilitating secure and reliable assembly in cable installations. The design supports a standard coaxial cable size and includes a bulkhead mount option for versatile integration options.

Operating temperature capabilities range from -65°C to 165°C, ensuring stable performance in diverse environments such as telecommunications, laboratory, and industrial use. The connector meets RoHS environmental compliance, supporting eco-friendly manufacturing standards.

Its lightweight construction, weighing approximately 0.0399 kg, eases installation and handling during equipment assembly and maintenance. The cable connector is ideally suited for applications in telecommunications infrastructure, laboratory test setups, and industrial electronics requiring high-frequency signal integrity and durability.

Operates at a maximum frequency of 18 GHz. Body constructed from brass with plating for durability. Beryllium copper alloy contact with gold plating ensures excellent signal conduction. Straight body orientation with female connector gender and solder termination.

Supports operating temperatures from -65°C to 165°C. RoHS compliant for environmental safety. Lightweight at approximately 0.0399 kg.
