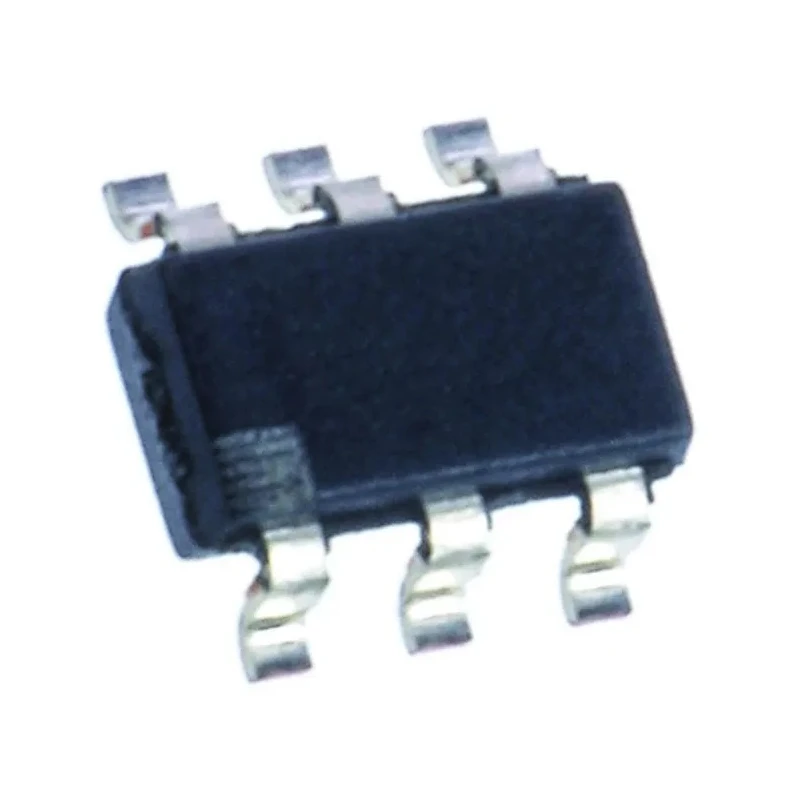

Texas Instruments Operational Amplifier, 135 MHz Gain Bandwidth, 6-Pin TSOT, 3-11 V LMH6611MKE/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.87mm |
| Length | 2.97mm |
| Model | LMH6611MKE/NOPB |
| Width | 1.65mm |
| Mount Type | Surface |
| Series | LMH6611 |
| Output Current | 70mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSOT |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 6 |
| Maximum Supply Voltage | 11V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 135MHz |
| Input Bias Current | -10.1 pA |
| Vos - Input Offset Voltage | 2 mV |
| Slew Rate | 460V/μs |
| Input Offset Current | 0.5 pA |
Key Features
- Features a gain bandwidth product of 135 MHz for high-frequency performance.
- Operates reliably across a supply voltage range of 3 V to 11 V.
- Compact 6-pin TSOT surface mount package for space-saving designs.
- Input offset voltage of 2 mV ensures precision signal amplification.
- Slew rate of 460 V/μs for rapid signal response to input changes.
- Input bias current of -10.1 pA and input offset current of 0.5 pA for low noise operation.
- Wide operating temperature range from -40°C to 125°C for industrial environments.
- Output current capability of 70 mA suitable for driving moderate load circuits.
Product Description
Texas Instruments LMH6611MKE/NOPB operational amplifier is a high-performance device intended for applications requiring low voltage operation and high gain bandwidth. This device features a gain bandwidth product of 135 MHz, making it suitable for high-frequency signal amplification in electronic circuits.
It is supplied in a compact 6-pin TSOT surface mount package, which helps conserve PCB space in densely packed electronic assemblies. The supply voltage range from 3 V to 11 V allows use in various low power applications, maintaining excellent performance and stability.
The input offset voltage of 2 mV, along with low input bias of -10.1 pA, allows precise amplification of low-level signals. Its fast slew rate of 460 V/μs enables quick response to rapid input signal changes, which is important in analog signal processing and communication devices.
With an operating temperature range from -40°C to 125°C, the LMH6611MKE/NOPB is designed to perform reliably in harsh industrial and commercial environments. The output current capability of 70 mA supports driving a variety of loads efficiently.
Typical dimensions of the TSOT package are 2.97 mm in length, 1.65 mm in width, and 0.87 mm in height, making it easy to incorporate in compact designs. This operational amplifier is part of the LMH6611 series specialized for low voltage, high-speed analog applications.
Features a gain bandwidth product of 135 MHz for high-frequency performance. Operates within a broad supply voltage range of 3 V to 11 V for versatile applications. Surface mount 6-pin TSOT package enables compact circuit layouts.
Low input offset voltage and bias current for precision signal processing. Fast slew rate ensures quick response to signal changes. Wide operating temperature range suitable for tough industrial environments. Output current of 70 mA supports moderate load conditions.
Compact physical dimensions allow integration into space-limited systems.
This operational amplifier is widely used in industrial electronics, communication equipment, instrumentation, and other high-performance analog circuit applications. It facilitates reliable and efficient amplification where low voltage and high bandwidth are critical.
For engineers and designers seeking robust Operational Amplifier solutions with well-defined electrical characteristics, the Texas Instruments LMH6611MKE/NOPB is an ideal choice.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LMH6611MKE/NOPB features a gain bandwidth product of 135 MHz, suitable for high-frequency applications.
It operates reliably across a supply voltage range of 3 V to 11 V, making it versatile for various low power applications.
The typical dimensions of the TSOT package are 2.97 mm in length, 1.65 mm in width, and 0.87 mm in height.
The input offset voltage is 2 mV, which allows for precise amplification of low-level signals.
It has a fast slew rate of 460 V/μs, enabling quick response to rapid input signal changes.
The output current capability is 70 mA, which is suitable for driving moderate load circuits.
It operates within a wide temperature range from -40°C to 125°C, making it suitable for industrial environments.
This model has a single channel configuration, as indicated by its specifications.
The input bias current is -10.1 pA, contributing to low noise operation.
It uses a surface mount type, specifically in a 6-pin TSOT package, which is compact for space-saving designs.
This model is part of the LMH6611 series, which is specialized for low voltage, high-speed analog applications.
It is widely used in industrial electronics, communication equipment, and instrumentation where low voltage and high bandwidth are critical.
