| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.7mm |
| Model | BZX384-C2V4,115 |
| Mount Type | Surface |
| Series | BZX384 |
| Maximum Operating Temperature | 150°C |
| Package Type | UMD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50μA |
| Nominal Zener Voltage Vz | 2.4V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 100Ω |
| Typical Voltage Temperature Coefficient | -1.6mV/°C |
| Surface Mount case | SOD-323 (SC-76) |

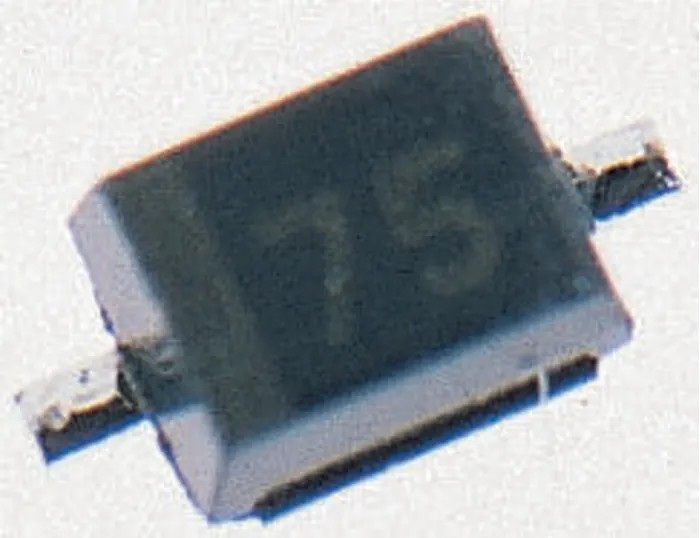

Nexperia BZX384-C2V4,115 Zener Diode is a high-quality single element voltage regulator in a surface mount 2-pin UMD package designed for precision voltage regulation applications. With a nominal Zener voltage of 2.4 V and a power rating of 300 mW, this diode is ideal for use in electronics requiring regulated voltage levels and protection circuits.
This device exhibits excellent electrical characteristics including a voltage tolerance of ±5 %, a maximum Zener impedance of 100 Ω, and a low maximum reverse leakage current of 50 μA, ensuring stable performance across various operating conditions.
Engineered to operate within a temperature range from -65°C up to 150°C, it maintains reliable operation even in harsh environments. The diode meets the rigorous AEC-Q101 automotive standard, making it suitable for automotive and industrial applications demanding durability and high reliability.
The compact SOD-323 (SC-76) surface mount case with a length of 2.7 mm and height of 1.1 mm supports space-efficient PCB assembly. The nominal test current for this device is 5 mA, reflecting typical operational conditions during verification and quality assurance processes.
Single element diode configuration tailored for voltage regulation. 5 % voltage tolerance for precision regulation. 300 mW maximum power dissipation rating. Surface mount design with 2-pin UMD package. Operating temperature range from -65°C to 150°C for broad environmental suitability.
Compliant with AEC-Q101 automotive standard for reliability. Low reverse leakage current and stable impedance for consistent operation. Compact dimensions support dense electronic assemblies.
This Zener diode is widely used in electronics manufacturing, automotive systems, industrial equipment, and other applications requiring stable voltage regulation. It is suitable for integration on printed circuit boards where compact size and performance are critical.
