| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.7mm |
| Model | BZX384-C10,115 |
| Mount Type | Surface |
| Series | BZX384 |
| Maximum Operating Temperature | 150°C |
| Package Type | UMD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 300mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 200nA |
| Nominal Zener Voltage Vz | 10V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 20Ω |
| Typical Voltage Temperature Coefficient | 6.4mV/°C |
| Surface Mount case | SOD-323 (SC-76) |
| onsemi 1, 10 V Zener Diode, Single 200 mW 6 % Surface 2-Pin SOD-323Brand | onsemi |

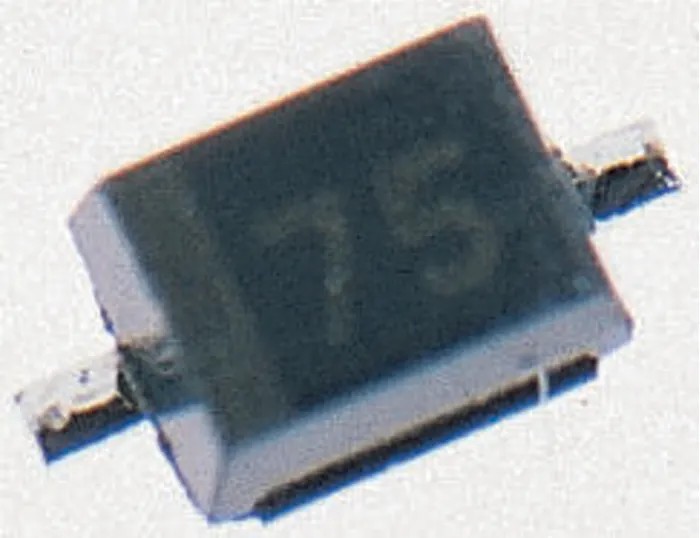

Nexperia BZX384-C10,115 is a high-quality 1.10 V Zener Diode designed for precision voltage regulation in electronic circuits. Encapsulated in a compact UMD (SOD-323) surface mount package with 2 pins, it supports a maximum power dissipation of 300 mW and a voltage tolerance of 5%, making it suitable for a range of electronics applications.
This diode features a single element chip and operates efficiently over a temperature range from -65°C to 150°C, ensuring dependable functionality in harsh environments. Its maximum Zener impedance of 20 ohms guarantees stable voltage regulation, while the low maximum reverse leakage current of 200 nA improves circuit efficiency.
The test current of 5 mA and typical voltage temperature coefficient of 6.4 mV/°C provide predictable performance, critical for automotive and other industrial uses. The diode is fully compliant with the AEC-Q101 automotive standard, underscoring its quality and reliability for stringent use cases.
With dimensions of 2.7 mm length and 1.1 mm height, this diode fits compact PCB layouts where space optimization is essential. Its robust construction and specifications make it ideal for power supply regulation, voltage reference, and protection circuits in consumer electronics, automotive electronics, and industrial equipment.
This diode features a single element chip configuration for precise voltage control. It supports a maximum operating temperature of 150°C and minimum of -65°C. Maximum power dissipation is rated at 300 mW for stable performance.
Designed with 2 pins in a compact UMD (SOD-323) surface mount package. Zener impedance is 20 ohms maximum, ensuring effective voltage regulation. Maximum reverse leakage current is low at 200 nA for improved efficiency. Test current is specified at 5 mA, meeting standard electrical characteristics.
Typical voltage temperature coefficient is 6.4 mV/°C, suitable for automotive and industrial applications. Meets automotive standard AEC-Q101 for quality and reliability.
Explore EnvMart's Electronics & Electricals category for more semiconductor components including Zener Diodes, Rectifiers, and other discrete semiconductors matching your industrial and laboratory requirements.
