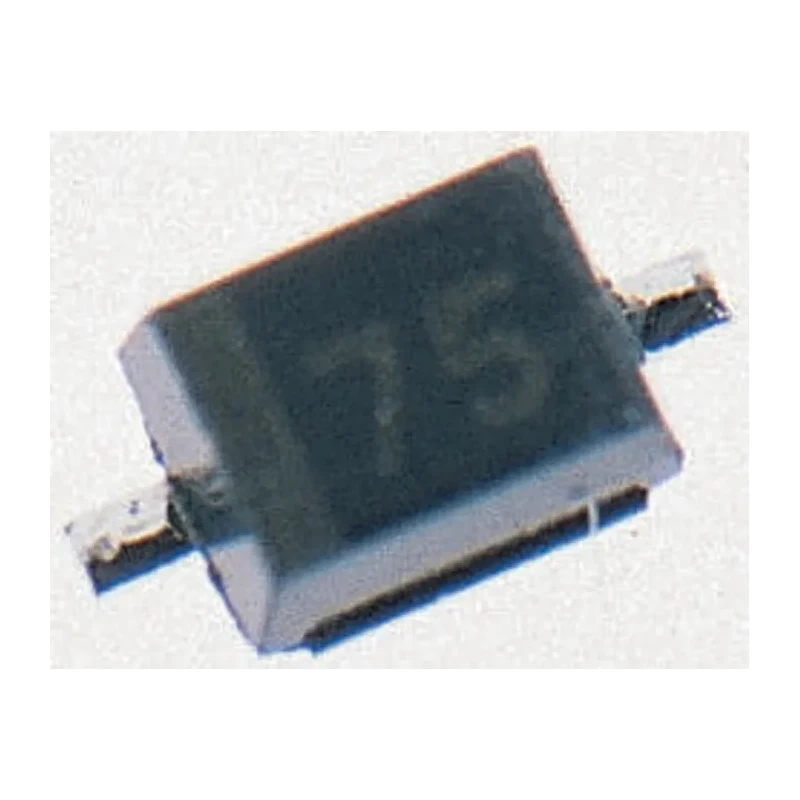

Nexperia 1.3 V Zener Diode Single 300 mW 5% Voltage Regulator Surface Mount 2-Pin UMD BZX384-C3V0,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 1.3 V Zener Diode Single 300 mW 5% Voltage Regulator Surface Mount 2-Pin UMD BZX384-C3V0,115

Name: Nexperia 1.3 V Zener Diode Single 300 mW 5% Voltage Regulator Surface Mount 2-Pin UMD BZX384-C3V0,115
Brand: Nexperia
SKU: 164468
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	2.7mm
Model	BZX384-C3V0,115
Mount Type	Surface
Series	BZX384
Maximum Operating Temperature	150°C
Package Type	UMD
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	300mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	10μA
Nominal Zener Voltage Vz	3V
Zener Type	Voltage Regulator
Maximum Zener Impedance	95Ω
Typical Voltage Temperature Coefficient	-2.1mV/°C
Surface Mount case	SOD-323 (SC-76)
Diodes Inc, 24V Zener Diode 2.5% 500 mW SMT 2-Pin SOD-323FBrand	DiodesZetex

Key Features

Designed for voltage regulation applications in electronic circuits.
Maximum power dissipation of 300 mW ensures reliable operation in compact devices.
Surface mount UMD (SOD-323) package supports automated PCB assembly.
Operates with nominal Zener voltage of 3 V and test current of 5 mA.
Wide operating temperature range from -65°C to 150°C for robust performance.
Low maximum reverse leakage current of 10 μA minimizes power loss.
Automotive standard compliant with AEC-Q101 certification.
Small form factor with dimensions 2.7 mm length and 1.1 mm height.

Product Description

Nexperia BZX384-C3V0,115 is a single Zener diode designed for voltage regulation in electronic semiconductor applications. It features a nominal Zener voltage of 3 V with a voltage tolerance of ±5% and a maximum power dissipation of 300 mW, housed in a compact surface mount UMD (SOD-323 / SC-76) package, making it suitable for automated PCB assembly processes.

This diode supports a test current of 5 mA and exhibits a low maximum reverse leakage current of 10 μA, improving efficiency in power sensitive circuits. The device complies with the automotive standard AEC-Q101, ensuring reliable use in automotive electronics and other high-reliability applications.

Operating temperature ranges from -65°C to 150°C, making it appropriate for harsh industrial and automotive environments. Its small dimensions, 2.7 mm in length and 1.1 mm in height, provide space-saving advantages in compact electronic designs.

Designed for voltage regulation across electronic applications. 300 mW maximum power dissipation for reliable protection. Surface mount assembly with UMD (SOD-323) package. Test current rating of 5 mA ensures stable operation.

Temperature tolerant from -65°C to 150°C for industrial use. Meets automotive reliability standards with AEC-Q101 compliance. Low reverse leakage current minimizes unwanted power drain. Compact size supports high-density circuit layouts.

This Zener diode model BZX384-C3V0,115 by Nexperia is suited for industrial, automotive, and electronic power regulation applications. It is part of the BZX384 series, recognized for consistent performance and quality. Buyers can rely on this component for high efficiency and reliability within their semiconductor circuits.
