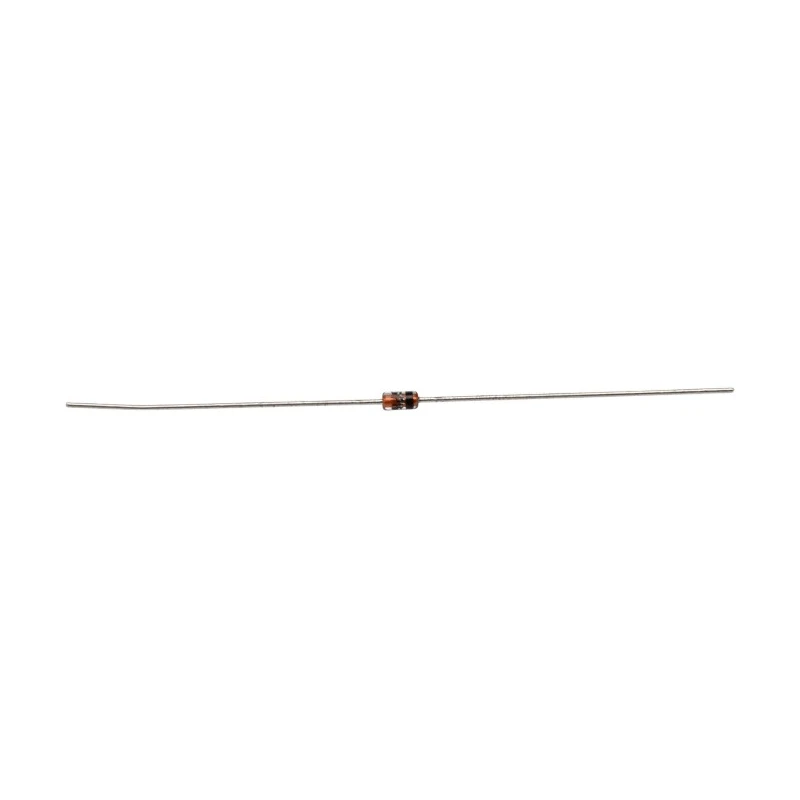

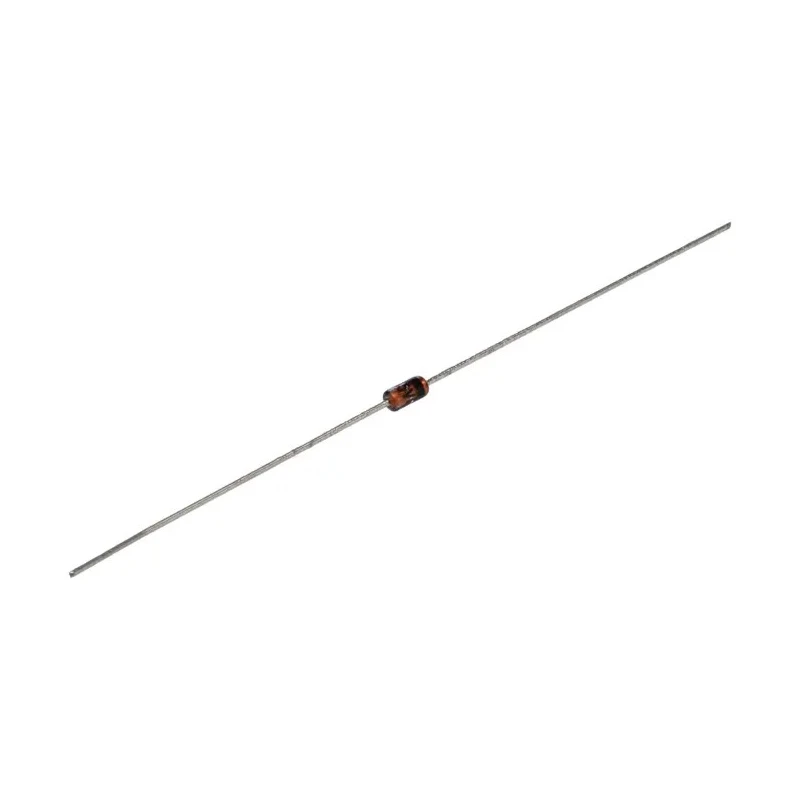

Nexperia 1.56 V 5.6 V Voltage Regulator Zener Diode 500 mW 2% Tolerance 2-Pin Through Hole SOD-27 BZX79-B5V6,113

Nexperia BZX79-B5V6,113 is a high-quality 5.6 V zener diode designed for voltage regulation applications in electronic circuits. It features a single diode configuration with through hole mounting in the compact SOD-27 package, making it ideal for traditional PCB assembly.

This zener diode supports a maximum power dissipation of 500 mW, which enables it to operate effectively under low to moderate load conditions. Its nominal zener voltage is precisely controlled at 5.6 V with a tolerance of ±2%, providing accurate voltage stabilization in power supply circuits.

The diode's operational temperature range spans from -65°C to 200°C, ensuring dependable functionality across harsh industrial, automotive, and electronic environments. A low maximum reverse leakage current of 1 μA helps minimize power loss and enhances overall circuit efficiency.

Physically, the diode measures 4.25 mm in length and 1.85 mm in height, allowing for compact design layouts. With a maximum zener impedance of 40 Ω tested at a 5 mA current and a typical voltage temperature coefficient of 1.2 mV/°C, it maintains stability in varying temperatures.

Such specifications make this zener diode suitable for voltage regulation, reference voltage generation, waveform clipping, and surge protection in consumer electronics, automotive electronics, telecommunications, and instrumentation.

The diode configuration is single, offering precise voltage regulation. Maximum power dissipation is rated at 500 mW, suitable for low power applications. The package type is SOD-27 with 2 pins for through hole mounting.

It has a nominal zener voltage of 5.6 V with ±2% tolerance ensuring voltage stability. Operating temperature ranges from -65°C to 200°C making it suitable for diverse environmental conditions. Maximum reverse leakage current is low at 1 μA contributing to efficient performance.

Maximum zener impedance is 40 Ω at test current of 5 mA. The diode length is 4.25 mm and height is 1.85 mm, compact for PCB designs. Typical voltage temperature coefficient is 1.2 mV/°C for operational consistency. It is ideal for use in industrial electronics, automotive circuitry, laboratory instruments, and general electronic applications.
