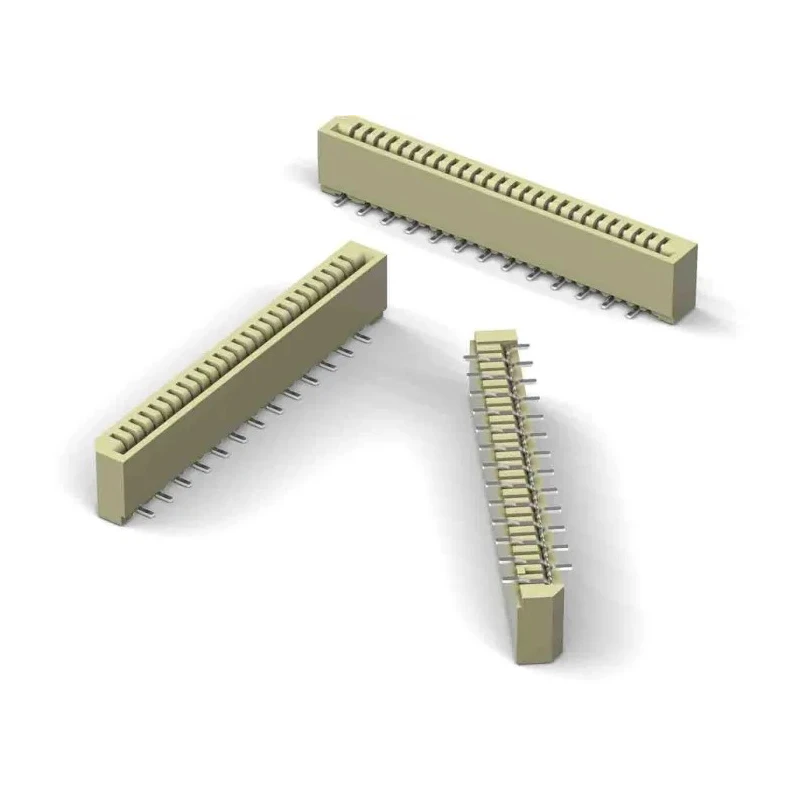

Wurth Elektronik WR-FPC Series Horizontal Surface PCB Header 24 Contacts 1 mm Pitch 1 Row Shrouded 686124188622

Wurth Elektronik model 686124188622 is a horizontal surface mount PCB header from the WR-FPC Series, featuring a compact 1 mm pitch and 24 contact points arranged in a single row. This shrouded connector is designed for wire-to-board applications and is manufactured with high-quality liquid crystal polymer housing, making it both durable and reliable.

The connector's contacts are made from phosphor bronze and plated with 2.032 μm of tin over 1.27 μm nickel, ensuring excellent electrical conductivity and resistance to corrosion. The stamped contact type offers precise mating and stable connections.

Rated to operate at a working voltage of 125 V AC and a current carrying capacity of 1 A, it is suitable for various industrial electronics uses including power supply and signal transmission. Its operating temperature range from -25°C to 85°C supports robust environmental adaptability.

This component’s solder termination type and surface mount design facilitate easy integration into PCB layouts. The shrouded design provides protection against accidental shorts and enhances safety in densely packed circuits.

Widely used in industrial, manufacturing, and electronic assembly processes, this PCB header meets RoHS environmental standards, aligning with global compliance for hazardous substances.

Durable liquid crystal polymer housing provides mechanical strength. Phosphor bronze stamped contacts maximize electrical performance. Shrouded body adds insulation and protection. Surface mount horizontal orientation for compact PCB design.

RoHS compliant for environmental safety.

Set your designs up for success with Wurth Elektronik’s reliable WR-FPC Series PCB headers. Explore more products in Electronics Components and PCB Headers at EnvMart to complete your project requirements.
