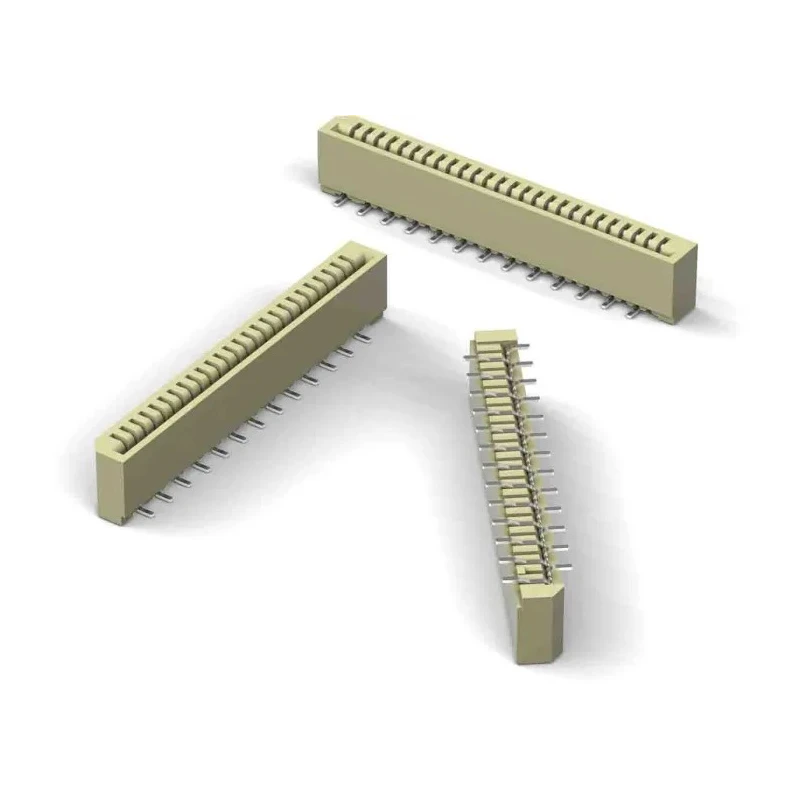

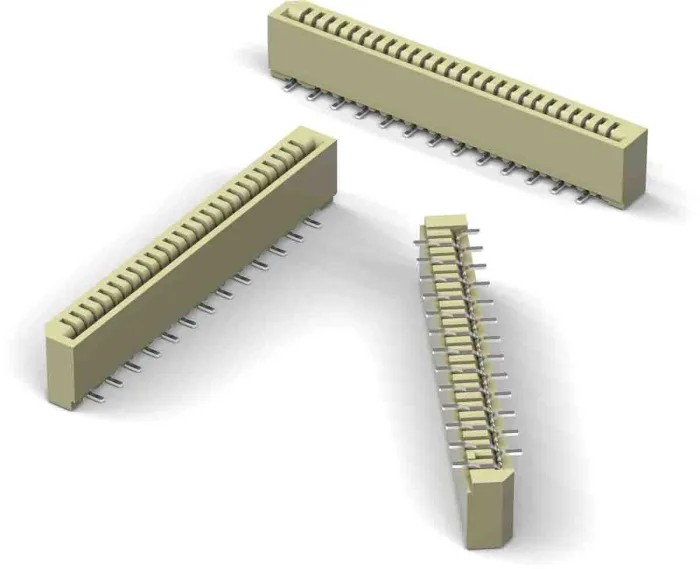

Wurth Elektronik WR-FPC Series Vertical Surface PCB Header, 18 Contacts, 1 mm Pitch, 1 Row, Shrouded 686118188822
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Contact Type | Stamped |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 18 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Shrouded design for increased contact protection and signal integrity.
- Single-row vertical orientation compatible with surface mount technology.
- Constructed with Liquid Crystal Polymer housing for high durability.
- Phosphor bronze contacts with tin over nickel plating ensure corrosion resistance and conductivity.
- Rated for up to 125 V AC voltage and 1 A current handling capacity.
- Suitable operating temperature range from -25°C to 85°C for flexible usage environments.
- Solder termination type provides secure board connection.
- Contact resistance is low at 30 milliohms enhancing electrical efficiency.
Product Description
Wurth Elektronik 686118188822 WR-FPC Series Vertical Surface PCB Header is engineered for robust wire-to-board connections requiring compact 1 mm pitch spacing. It features 18 stamped phosphor bronze contacts plated with 2.032 μm tin over 1.27 μm nickel for optimum conductivity and corrosion resistance typical to high-quality PCB connectors.
The connector’s housing is crafted from Liquid Crystal Polymer (LCP), providing excellent mechanical stability and thermal endurance necessary for industrial electronics applications. Shrouded contact design further safeguards against accidental short circuits and ensures precise mating alignment.
This surface mount vertical header supports current ratings up to 1A and operating voltages up to 125 V AC. The product operates reliably across an industrial temperature range of -25°C to +85°C, making it suitable for a wide array of environments including industrial automation, instrumentation, telecommunications, and computing hardware.
Shrouded design for increased contact protection and signal integrity. Single-row vertical orientation compatible with surface mount technology. Constructed with Liquid Crystal Polymer housing for high durability. Phosphor bronze contacts with tin over nickel plating ensure corrosion resistance and conductivity.
Rated for up to 125 V AC voltage and 1 A current handling capacity. Suitable operating temperature range from -25°C to 85°C for flexible usage environments. Solder termination type provides secure board connection. Contact resistance is low at 30 milliohms enhancing electrical efficiency.
The WR-FPC series is compliant with RoHS directives, facilitating environmentally responsible manufacturing and disposal. Designed and manufactured in China, this connector is ideal for quality-conscious electronics manufacturing industries seeking reliable and compact PCB interconnect solutions.
Browse EnvMart's Electronics Components categories for related Wurth Elektronik products and advanced PCB connector technologies suited to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 125 V AC.
This unit has a current handling capacity of up to 1 A.
The housing is constructed from Liquid Crystal Polymer (LCP), which provides high durability.
It features 18 contacts.
The contact pitch is 1 mm.
The suitable operating temperature range is from -25°C to 85°C.
It uses a solder termination type for secure board connection.
Yes, it is compliant with RoHS directives.
The contacts are made of phosphor bronze with tin over nickel plating.
This model has a vertical orientation.
It supports a wire-to-board connector system.
This product is designed and manufactured in China.
