Tektronix Oscilloscope Probe Current Type 1 GHz CT1

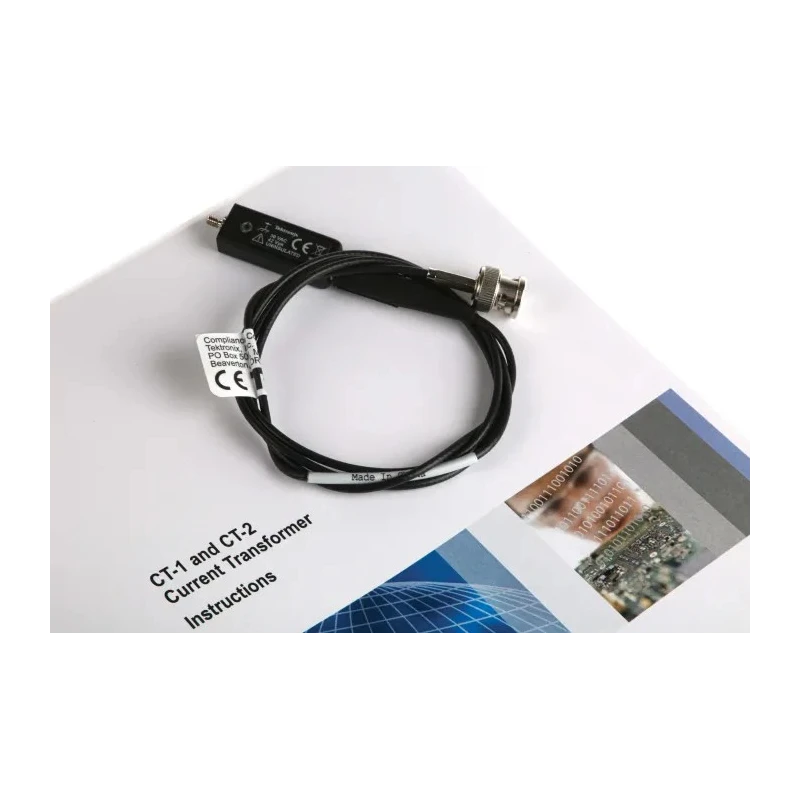

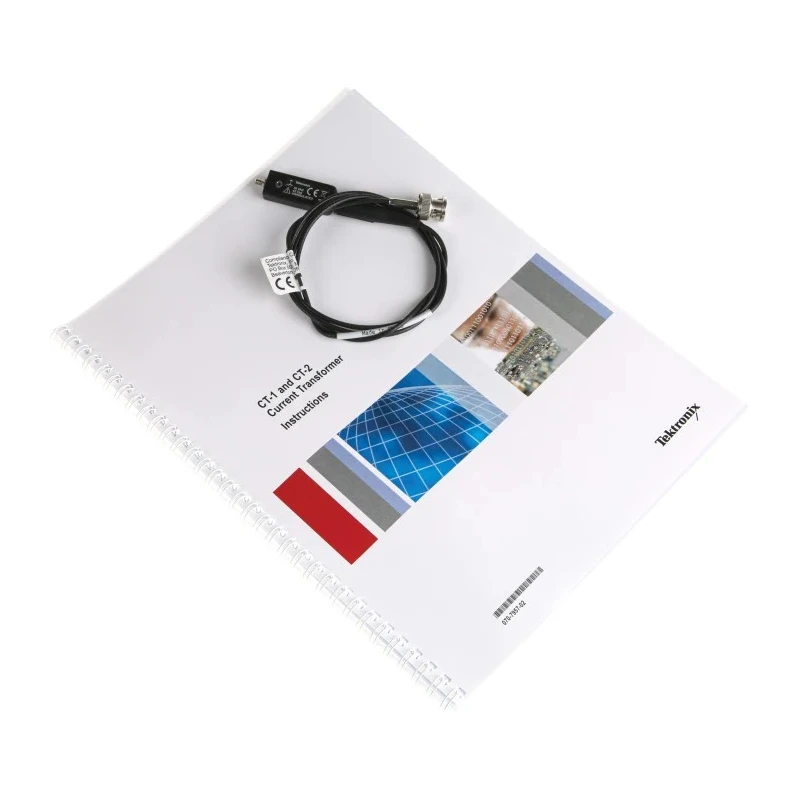

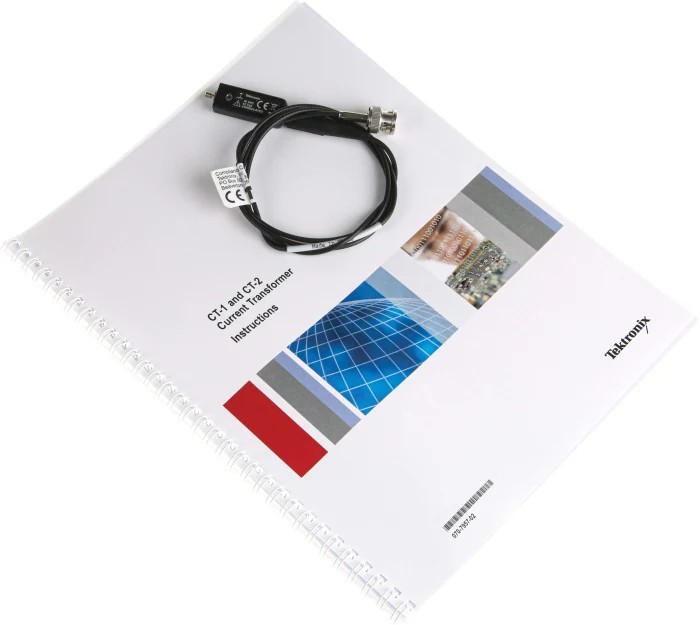

Tektronix CT1 Oscilloscope Probe is a current-type probe designed for accurate characterization of current waveforms up to 1 GHz bandwidth. The probe consists of a solid core high-bandwidth current transformer and interconnecting cable, enabling semi-permanent in-circuit installation. Its small form factor and ultra-low inductance minimize loading on the circuit under test, making it suitable for use in dense and closely spaced electronic designs.

With a rise time of 175 ns and sensitivity of 5 mV/mA, the CT1 supports precise differential current measurements and high-frequency analog design validation. It withstands a maximum pulse current of 450 mA and continuous current up to 12 A, ensuring reliable operation across a range of testing scenarios.

The probe is safety rated at CAT I with a voltage limit of 175 V, making it appropriate for laboratory and industrial environments. Applications include data storage read channel design, silicon characterization, electromagnetic compatibility testing including ESD, signal injection, and single-shot low repetition rate pulse measurements. The probe's construction and design targets enhanced propagation delay measurement capabilities for intricate testing protocols.

Bandwidth: 1 GHz for high frequency current measurements. Pulse and continuous current handling capabilities of 450 mA and 12 A respectively. Accuracy maintained at ±3% for trustworthy data analysis. Compact solid core design reduces impact on circuit performance.

Excellent for high-frequency analog and semiconductor device testing. Safety compliant with CAT I 175 V standards. Applications in laboratory, industrial testing, and electronics manufacturing.

The Tektronix CT1 Oscilloscope Probe supports high precision current measurement tasks critical in industrial, laboratory, and electronics testing sectors. It offers robust performance for researchers, technicians, and engineers requiring well-defined signal insights. Explore the full range of precise Oscilloscope Probes on EnvMart to match your specialized testing requirements.
