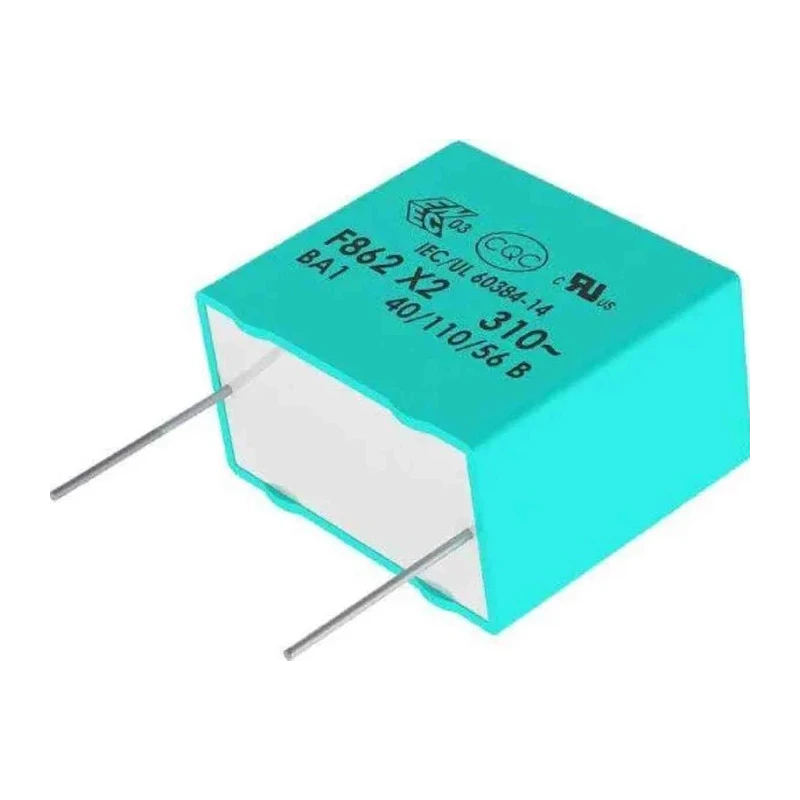

KEMET F862 Film Capacitor X2 560nF 630V DC 310V AC Through Hole Tolerance 10% F862DO564K310ZV054
Specifications
| Country of Origin | China |
|---|---|
| Brand | KEMET |
| Height | 18.5mm |
| Length | 26mm |
| Model | F862DO564K310ZV054 |
| Packaging | Pizza Pack |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | F862 |
| Maximum Operating Temperature | 110°C |
| Tolerance | 10 % |
| Capacitance | 560nF |
| Minimum Operating Temperature | -40°C |
| Dissipation Factor | 0.2% |
| Lead Length | 4mm |
| Standards/Approvals | CQC, cUL, ENEC, UL |
| Package/Case | Molded Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 22.5mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Rated for 630V DC and 310V AC voltage operation.
- 10% capacitance tolerance ensures precise electrical performance.
- Constructed with molded plastic case for robust protection.
- Designed for a wide temperature range of -40°C to 110°C.
- Lead pitch of 22.5mm and lead length of 4mm facilitate easy PCB installation.
- Complies with automotive standard AEC-Q200 for quality assurance.
- Suppression class X2 suitable for connection in series with the mains supply.
- Compact dimensions with length 26mm, width 10mm, and height 18.5mm.
Product Description
KEMET F862DO564K310ZV054 film capacitor is designed for reliable EMI suppression and stable performance in electronic circuits. It features a capacitance of 560nF with a tolerance of 10%, suitable for various industrial and automotive applications requiring precise filtering and power conditioning.
This film capacitor supports rated DC voltage of 630V and AC voltage of 310V, making it ideal for power supply stabilization and noise reduction. The encapsulated polypropylene construction with self-extinguishing molded plastic case ensures durability and safety during operation.
The component conforms to automotive standard AEC-Q200, underscoring its suitability for high-quality automotive electronic systems. Its operating temperature range from -40°C to +110°C enables use in demanding environmental conditions.
The capacitor's through-hole mount style with a lead pitch of 22.5mm and lead length of 4mm facilitates secure and stable installation on printed circuit boards. The compact size (26mm long, 10mm wide, 18.5mm high) enables space-efficient PCB design.
Rated for 630V DC and 310V AC operation. Capacitance tolerance is ±10% for accuracy in filtering applications. Constructed from molded plastic for durability and safety. Designed to meet automotive quality standards (AEC-Q200).
Operates reliably across a wide temperature range of -40°C to 110°C. Ideal for EMI suppression in industrial and automotive environments. Compact through-hole mounting with 2 pins and 22.5mm lead pitch. Molded encapsulation provides flame retardance and protection.
This film capacitor is suited for use in industrial electronics, automotive power supplies, energy meters, and other applications where noise reduction and voltage stability are critical. Its high-quality materials and certifications ensure compliance with global electrical safety standards including CQC, cUL, ENEC, and UL.
Explore more Film Capacitors and passive electronic components in our Electronics Components category at EnvMart for your next project or industrial requirement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 560nF with a tolerance of ±10%.
It is rated for a DC voltage of 630V and an AC voltage of 310V.
This unit operates within a temperature range of -40°C to +110°C.
The lead pitch is 22.5mm and the lead length is 4mm, facilitating easy PCB installation.
The dimensions are 26mm in length, 10mm in width, and 18.5mm in height.
It uses a through-hole mounting style with 2 pins.
It complies with the automotive standard AEC-Q200, ensuring quality for automotive applications.
This capacitor is constructed with a molded plastic case, providing robust protection.
It meets several standards including CQC, cUL, ENEC, and UL for electrical safety compliance.
The suppression class is X2, suitable for connection in series with the mains supply.
The dissipation factor for this model is 0.2%.
It is suitable for industrial electronics, automotive power supplies, and energy meters, particularly for EMI suppression and voltage stability.
