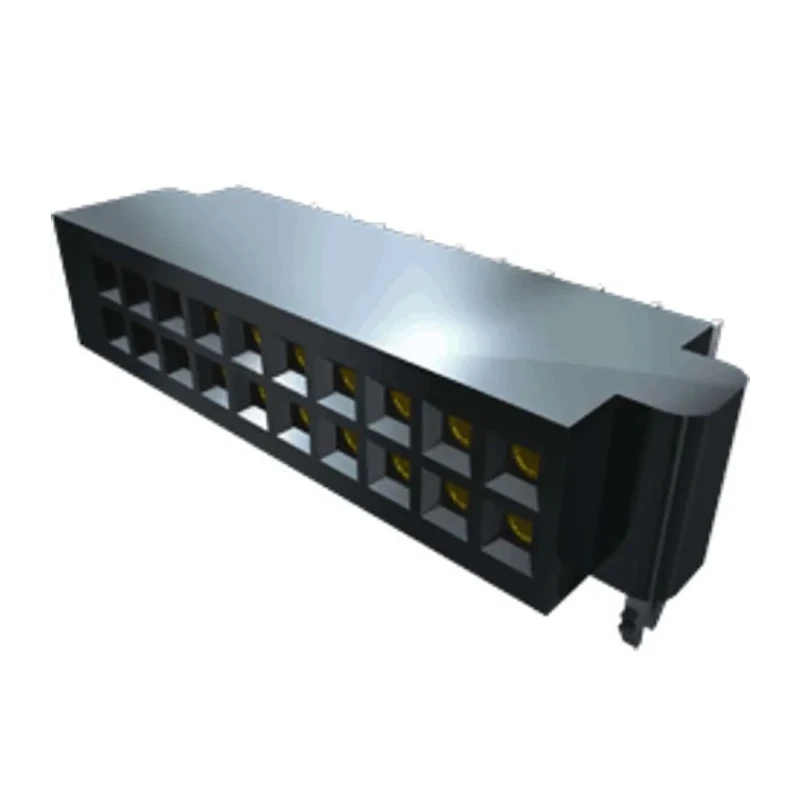

Samtec PCB Header Horizontal Surface Mount 10 Contacts 1.27 mm Pitch 2 Row Shrouded SFMH-105-02-L-D-WT-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 2.6A |
| Model | SFMH-105-02-L-D-WT-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SFMH |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Silver, Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Designed for horizontal board-to-board connections.
- Utilizes phosphor bronze contacts for durability and conductivity.
- Features silver and tin plating for reliable contact surface.
- Housing made of black liquid crystal polymer for high-temperature resistance.
- Rated for a current of 2.6 A per pin with 2 pins powered.
- Operates reliably between -55°C to +125°C temperature range.
- Shrouded design for secure mating and protection.
- Solder termination type suitable for surface mount technology.
Product Description
Samtec SFMH-105-02-L-D-WT-TR is a high-reliability horizontal surface mount PCB header designed for board-to-board connector applications. It features 10 male contacts arranged in 2 rows with a 1.27 mm pitch, ensuring compact and efficient interconnections.
The connector housing is constructed from black liquid crystal polymer, providing excellent thermal stability and robustness, while the contacts are made of phosphor bronze plated with silver and tin to guarantee durability and low contact resistance.
Its shrouded design offers protection and ensures secure mating, enhancing reliability in demanding industrial and electronic environments. The solder termination type supports effective surface mounting for integration into complex PCB assemblies.
Rated for a current capacity of 2.6 amperes per pin with two pins powered, it can operate reliably in a wide temperature range from -55°C up to 125°C, making it suitable for harsh industrial, laboratory, and electronic manufacturing scenarios.
This connector is RoHS compliant, supporting environmentally safe manufacturing processes. It is widely used in electronics manufacturing, assembly of industrial control equipment, instrumentation, and other commercial electrical devices requiring board-to-board connections.
Designed for horizontal board-to-board connections. Utilizes phosphor bronze contacts for durability and conductivity. Features silver and tin plating for reliable contact surface. Housing made of black liquid crystal polymer for high-temperature resistance.
Rated for a current of 2.6 A per pin with 2 pins powered. Operates reliably between -55°C to +125°C temperature range. Shrouded design for secure mating and protection. Solder termination type suitable for surface mount technology.
Offers 1.27 mm row pitch for compact PCB layouts. Ideal for electronic applications requiring high-reliability connections. Explore more PCB Headers and connectors suitable for various electronics applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2.6 A per pin with two pins powered.
It features a pitch of 1.27 mm and has 10 male contacts arranged in 2 rows.
The housing is made of black liquid crystal polymer, while the contacts are made of phosphor bronze with silver and tin plating.
It operates reliably between -55°C to +125°C.
Yes, it features a solder termination type that is suitable for surface mount technology.
This connector uses a board-to-board connector system.
The orientation of this model is horizontal.
It has a shrouded design that provides secure mating and protection.
The country of origin for this PCB header is India.
It is widely used in electronics manufacturing, assembly of industrial control equipment, and instrumentation.
The contact gender for this model is male.
The contacts are plated with silver and tin to ensure reliable contact surfaces.
