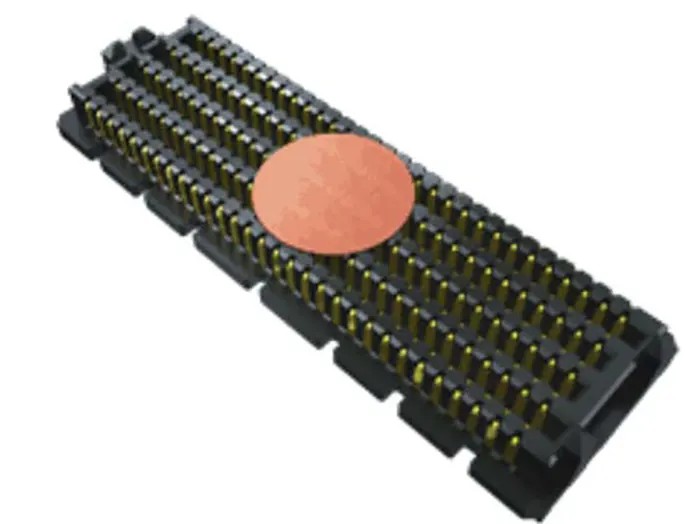

Samtec SEAM Series Straight Surface PCB Header 120 Contacts 1.27 mm Pitch 4 Row Shrouded SEAM-30-11.0-L-04-2-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.7A |
| Model | SEAM-30-11.0-L-04-2-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SEAM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 4 |
| Pitch | 1.27mm |
| Contact Plating | Silver, Tin |
| Number of Contacts | 120 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- High-density configuration with 120 male contacts ensuring robust electrical connectivity.
- 1.27 mm pole pitch suitable for compact PCB designs.
- Constructed with Liquid Crystal Polymer housing with excellent insulating properties.
- Copper alloy contacts plated with silver and tin for enhanced conductivity and corrosion resistance.
- Supports operating temperatures from -55°C to 125°C for broad environmental compatibility.
- Surface mount board-to-board connector system for easy PCB assembly.
- Designed for 240 VAC voltage rating, meeting typical electronic component requirements.
- Shrouded contact system enhances durability and prevents damage during handling.
Product Description
Samtec SEAM-30-11.0-L-04-2-A-K-TR is a high-speed, high-density straight surface-mount PCB header featuring 120 male contacts arranged in four rows with a 1.27 mm pitch. The connector housing is manufactured from black Liquid Crystal Polymer (LCP), providing excellent electrical insulation along with high mechanical and thermal stability.
The individual contacts are made of copper alloy and are plated with silver and tin, ensuring superior conductivity and protection against corrosion. This connector supports a voltage rating of 240 V AC and a current rating of 2.7 A, making it suitable for various industrial, electronic, and communication applications.
Operating temperature ranges from -55°C to 125°C, allowing performance in extreme environmental conditions typical in industrial electronics and automotive systems.
The device is designed for surface mount board-to-board connections, enabling compact and reliable PCB assemblies. The shrouded design offers mechanical protection for the pins, minimizing risk of damage during installation or operation.
High-density 120 pole configuration enhances circuit complexity management. Liquid Crystal Polymer housing for superior insulation and durability. Copper alloy contacts with silver and tin plating for longevity and signal integrity.
Wide operating temperature supports harsh environments. 240 V AC voltage rating suitable for common electronic system standards. Surface mount termination facilitates automated PCB assembly processes. Shrouded contact system improves mechanical resilience.
This PCB Header is ideal for industrial electronics manufacturing, telecommunications equipment, computer hardware, and other high-reliability electronic systems requiring dense, durable interconnects. Explore more PCB connector solutions and related components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a voltage rating of 240 V AC, suitable for common electronic system standards.
The current rating for this unit is 2.7 A, making it appropriate for various applications.
The contacts in this connector are arranged with a pitch of 1.27 mm, allowing for high-density configurations.
The housing is made from Liquid Crystal Polymer, while the contacts are copper alloy plated with silver and tin for enhanced conductivity and corrosion resistance.
It supports an operating temperature range from -55°C to 125°C, suitable for extreme environmental conditions.
This model features 120 male contacts arranged in four rows, enhancing circuit complexity management.
The termination type for this unit is solder, designed for surface mount applications.
Yes, it is designed as a board-to-board connector, facilitating compact and reliable PCB assemblies.
The orientation of this model is straight, allowing for straightforward installation.
The shrouded design enhances mechanical protection for the pins, minimizing the risk of damage during installation or operation.
This product is manufactured in India, ensuring quality in production.
It is suitable for various industrial, electronic, and communication applications requiring dense, durable interconnects.
