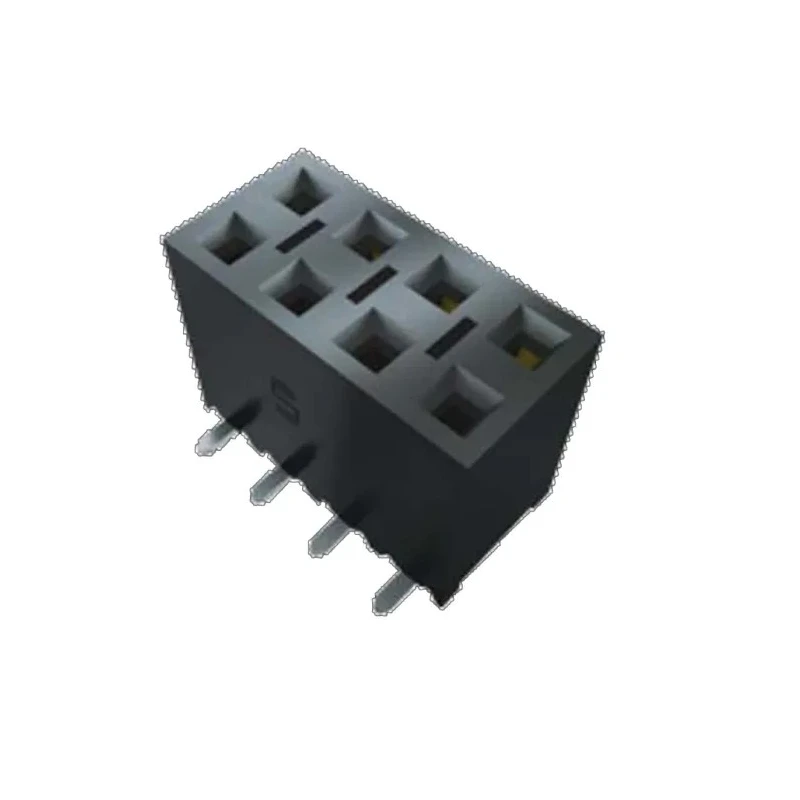

Samtec SSM Series Straight Surface PCB Socket, 40-Contact, 2 Row, 2.54 mm Pitch Surface Mount SSM-120-L-DV-BE-LC
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 572V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | SSM-120-L-DV-BE-LC |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Current Rating | 5.2A per pin(2 pins powered) |
| Series | SSM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
| Normal Force | 125grams (1.21N) average |
Key Features
- This PCB socket has 40 contacts arranged in 2 rows for effective connection.
- The pitch of 2.54 mm ensures compatibility with standard PCB layouts.
- Constructed with a black liquid crystal polymer housing for high durability.
- Contacts are made from phosphor bronze with gold plating to ensure excellent conductivity.
- Rated for a current capacity of 5.2 A per pin with two pins powered.
- Designed for surface mount termination and a straight orientation.
- Operating temperature ranges from -55°C to 125°C for versatile environmental tolerance.
- Normal operating force averages 125 grams (1.21 N) ensuring reliable contact.
Product Description
The Samtec SSM Series Straight Surface PCB Socket model SSM-120-L-DV-BE-LC is engineered to provide secure board-to-board electrical connections. This 40-contact, 2-row socket has a precise 2.54 mm pitch, compatible with a wide range of printed circuit board designs. The housing is made from high-quality black liquid crystal polymer, offering excellent mechanical strength and thermal stability.
Phosphor bronze contacts with a gold plating deliver superior conductivity and resistance to corrosion, adhering to industrial electronics standards. The socket supports a continuous current rating of 5.2 A per pin, with two pins powered simultaneously. It is rated for operating voltages up to 572 V, suitable for demanding electronic control and communication devices.
Designed for surface mount technology (SMT), the socket offers a straight orientation to simplify assembly and improve electrical integrity. The operating temperature range extends from -55°C to 125°C, making it suitable for industrial, laboratory, manufacturing, and commercial electronics applications with wide ambient conditions.
The normal force exerted by the contact system is approximately 125 grams (1.21 N), ensuring reliable electrical contact without excessive wear on mating components. This product is ideal for applications requiring robust and durable PCB connections, including telecommunications equipment, instrumentation, and computing hardware.
40 contacts arranged in 2 rows with 2.54 mm pitch. Black liquid crystal polymer housing for durability and heat resistance. Phosphor bronze contacts with gold plating for conductivity and corrosion resistance. Rated current of 5.2 A per pin with two pins powered simultaneously.
Surface mount termination with straight orientation. Voltage rating up to 572 V AC/DC. Operating temperature range from -55°C to 125°C. Normal contact force averaging 125 grams for reliable connection. Explore Samtec connectors and related PCB Sockets on EnvMart to support your electronic design and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SSM-120-L-DV-BE-LC socket has a current rating of 5.2 A per pin, with two pins powered simultaneously.
The contacts in this PCB socket are arranged with a pitch of 2.54 mm, ensuring compatibility with standard PCB layouts.
This model can operate at a maximum temperature of 125°C, making it suitable for various environmental conditions.
The SSM-120-L-DV-BE-LC socket uses surface mount termination, designed for straightforward assembly.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity.
This PCB socket features 40 contacts arranged in 2 rows.
The socket is designed with a straight orientation, which simplifies the assembly process.
The normal contact force averages 125 grams (1.21 N), ensuring reliable electrical contact without excessive wear.
The SSM-120-L-DV-BE-LC socket is rated for operating voltages up to 572 V AC/DC.
This socket can operate at a minimum temperature of -55°C, allowing it to function in extreme conditions.
The connector system for this model is board-to-board, facilitating effective electrical connections between PCBs.
The SSM-120-L-DV-BE-LC socket is manufactured in India.
