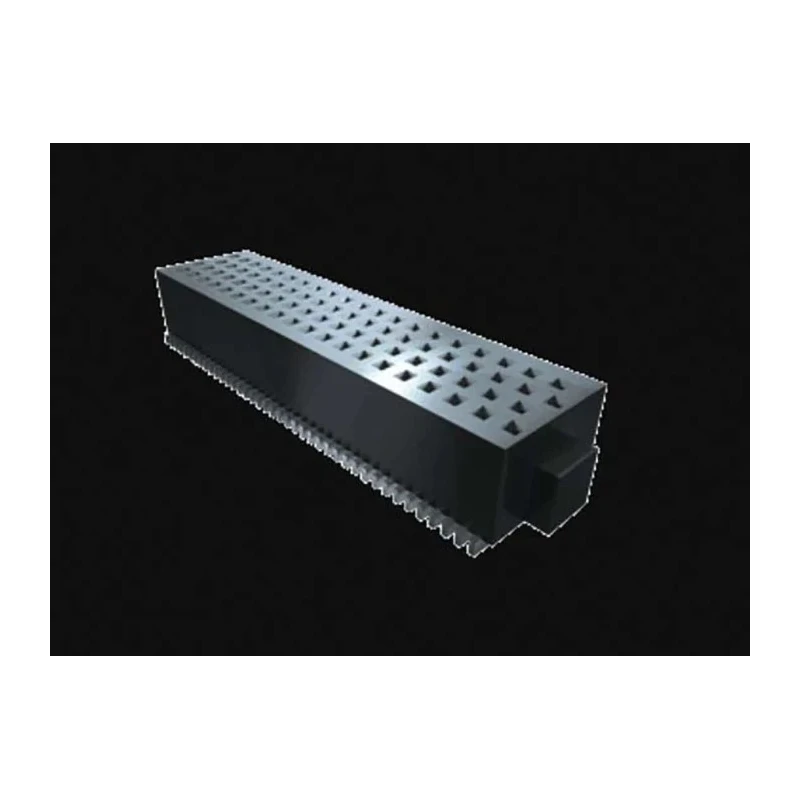

Samtec PCB Socket 160-Contact 4 Row 1.27 mm Pitch Straight Surface Mount Solder SOLC-140-02-L-Q-LC

The Samtec SOLC-140-02-L-Q-LC is a high-performance PCB socket designed to provide reliable board-to-board connections in electronic systems. It features 160 contacts arranged in 4 rows with a 1.27 mm pitch, offering a compact yet efficient solution for high-density applications.

Constructed with a liquid crystal polymer housing material, this socket ensures excellent durability and thermal stability. The contacts are made from phosphor bronze with 0.25 μm gold plating, providing superior conductivity and resistance to corrosion. The gold flash on the tail improves solderability, making it compatible with lead-free solder processes.

With a current rating of 2.4 A per pin (for 6 adjacent pins powered), the socket supports moderate power applications while maintaining compact dimensions. It is designed for surface mount technology (SMT) and features a straight orientation, enabling easy integration into PCB layouts.

The operating temperature range from -55°C to +125°C makes this socket suitable for demanding industrial, manufacturing, and electronics environments where temperature extremes may be encountered.

The socket supports 160 contacts enabling complex electronic interfacing. Housing and contact materials provide robustness and reliable electrical performance. Solder termination and surface mount design enable efficient PCB assembly.

Operating temperature range and current rating ensure suitability for industrial applications. Gold plated contacts provide excellent durability and low contact resistance.

This Samtec SOLC series socket is ideal for use in industrial controls, communication equipment, and other electronic systems requiring high-density, durable, and stable board-to-board connections.
