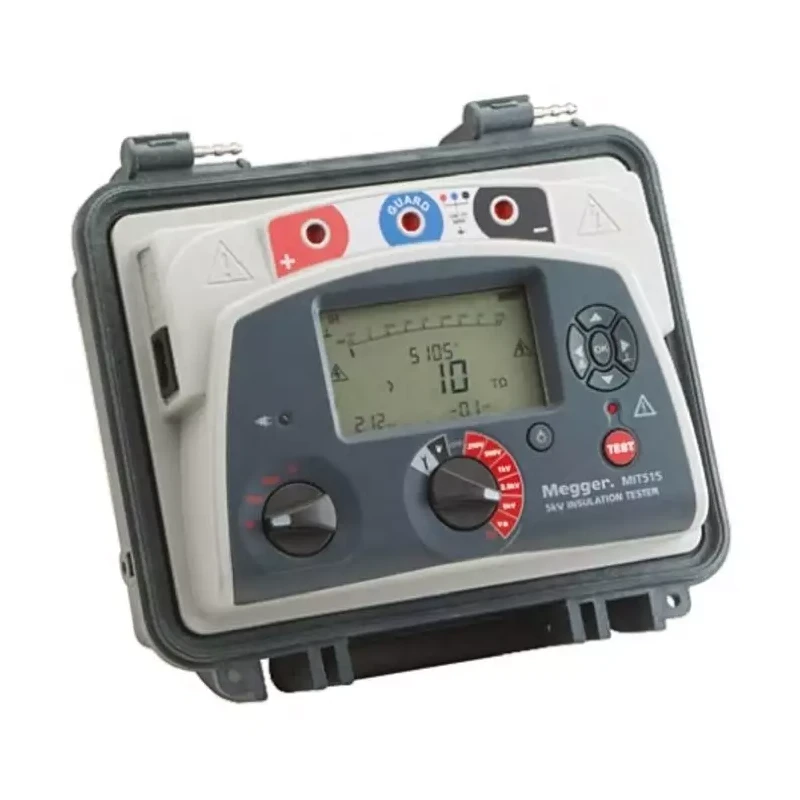

Megger Insulation Resistance Tester MIT515
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Megger MIT515 Insulation Resistance Tester / Accessories Included |
| Current Range | 0.01 nA to 6 mA |
| Display | Large backlit LCD (Analogue- 100 kΩ–10 TΩ) |
| Brand | Megger |
| Battery type | 10.8 V/ 5.2 Ah Li-ion (IEC 62133-2003) |
| Model | MIT515 |
| Timer Range | Up to 99 min 59 sec/ min setting 15 sec |
| IP Rating | IP65 (lid closed)/ IP40 (lid open) |
| Test Modes | IR/ IR(t)/ DAR/ PI |
| Charging Time | 2 hrs (normal discharge) | 2.5 hrs (deep discharge) |
| Short Circuit Current | 3 mA |
| Operating temp. range | -20 °C to +50 °C |
| Current Accuracy | ±5% ±0.2 nA (at all voltages/ 20 °C) |
| Safety Rating | CAT IV 600 V |
| Dimensions (L × W × H) | 315 mm × 285 mm × 181 mm |
| Capacitance Accuracy | ±10% ±5 nF |
| Guard Terminal Performance | Guards out parallel leakage down to 500 kΩ with max 1% additional error @ 100 MΩ load |
| Voltmeter Range | 30 V to 660 V AC/DC/ 45–65 Hz |
| Voltmeter Accuracy | ±3%/ ±3 V |
| Capacitance Measurement | 10 nF – 25 μF (above 500 V). |
| Noise Rejection | 3 mA from 450 V to 5 kV |
| Test Voltage Ranges | 250 V/ 500 V/ 1000 V/ 2500 V/ 5000 V/ User defined |
| User Defined Voltage Range | 40 V–1 kV in 10 V steps | 1 kV–5 kV in 25 V steps |
| Max Insulation Resistance | 10 TΩ @ 5 kV |
| Battery Life (Typical) | 6 hrs @ 5 kV/ 100 MΩ load |
| AC Power Input | 90–264 V rms/ 47–63 Hz/ 100 VA |
| Storage Temp. Range | -25 °C to +65 °C |
| Humidity Rating | 90% RH non-condensing @ 40 °C |
| Max Altitude | 3000 m |
| Weight (approx.) | ~4.5 kg (with battery) |
| Resistance Range (Digital) | 10 kΩ to 15 TΩ |
| Display Range (Analogue) | 100 kΩ to 10 TΩ |
| Accuracy (±5%) | Up to 1 TΩ @ 5 kV |
| Accuracy (±20%) | Up to 10 TΩ |
| Capacitor Charge Time | Less than 3 s/μF @ 5 kV |
| Capacitor Discharge Time | Less than 250 ms/μF (5 kV to 50 V) |
| Insulation Test Alarm Range | 100 kΩ to 10 GΩ |
Key Features
- Resistance Range: Up to 10 TΩ
- Test Voltage: Up to 5 kV
- Test Functions:
Product Description
The Megger MIT525 is a high-performance 5 kV DC insulation resistance tester engineered for professional insulation diagnostics in industrial, OEM, and utility sectors. It supports multiple test modes, including PI, DAR, DD, SV, and Ramp tests, allowing detailed insulation evaluation across electrical assets. Built-in memory and USB connectivity enable efficient test documentation, while integration with PowerDB and CertSuite software streamlines data reporting. The MIT525 features a rapid-charge battery, large backlit display, and an intuitive control layout for ease of use. Its rugged, IP65-rated housing and CAT IV 600 V protection ensure long-term durability and operator safety. Designed for serious professionals, it offers unmatched reliability and accuracy for insulation condition monitoring and predictive maintenance.
Available on EnvMart, these Insulation Testers are engineered for accurate and reliable insulation resistance measurements. Megger Insulation Testers ensure precision, durability, and safety for electrical, industrial, and maintenance applications.
