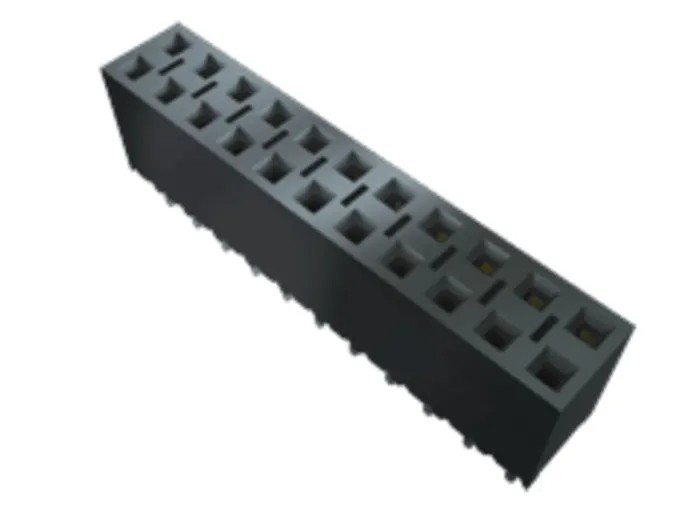

Samtec BCS Series Straight Through Hole Board-to-Board PCB Socket 8-Contact 2 Row 2.54 mm Pitch Solder BCS-104-F-D-TE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Current | 4.6A |
| Model | BCS-104-F-D-TE |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | BCS |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold over Tin |
| Number of Contacts | 8 |
Key Features
- The housing is made from durable black glass filled polyester material.
- Phosphor bronze is used for contact material with gold over tin plating for reliable conductivity.
- Rated for 4.6A current per contact allowing for efficient power handling.
- The socket is designed for through hole mounting and straight orientation for easy PCB assembly.
- Operating temperature range is from -55°C to 125°C ensuring robust performance in varied environments.
- The BCS series provides a Tiger Claw pass through socket strip ensuring secure electrical connections.
- Compliance with RoHS standards guarantees environmental safety.
- Suitable for industrial and electronic component assembly applications requiring reliable board connections.
Product Description
Samtec BCS-104-F-D-TE Straight Through Hole Board-to-Board PCB Socket is engineered as part of the BCS series to provide reliable electrical connections with 8 contacts in 2 rows using a 2.54 mm pitch. It is designed for through hole mounting with solder termination, making it ideal for robust PCB assemblies.
The socket housing is constructed from black glass filled polyester, which offers excellent mechanical strength and durability. Contacts are made of phosphor bronze and plated with gold over tin to ensure low resistance and corrosion resistance, supporting a current rating of 4.6A per pin. This assembly supports operation in harsh temperature environments between -55°C and 125°C.
Its Tiger Claw pass through design offers secure and stable board connections commonly used in industrial electronics manufacturing, telecommunications, instrumentation, and control system assemblies. The straight contact orientation facilitates straightforward circuit board integration with high reliability.
RoHS compliance affirms that this PCB socket meets environmental directives restricting hazardous substances, making it suitable for eco-conscious production requirements. The housing material is black glass filled polyester providing durability.
Contact material is phosphor bronze with gold over tin plating for conductivity and corrosion resistance. Rated current is 4.6 amperes per contact ensuring performance under electrical load. Operating temperature range from -55°C to 125°C allows for use in extreme conditions.
The product includes 8 contacts arranged in 2 rows with 2.54 mm pitch spacing. Designed for through hole solder termination providing secure PCB attachment. Series BCS features a Tiger Claw pass through socket design for secure connection.
Compliance with RoHS standards supports environmental safety requirements.
This PCB Socket is a vital component in industrial electronics, telecom equipment, industrial automation, and laboratory instrumentation where precise, reliable board-to-board connections are critical. EnvMart offers this high-quality Samtec socket ensuring industrial-grade reliability and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BCS-104-F-D-TE PCB socket is rated for 4.6A current per contact, allowing for efficient power handling.
This model features a contact pitch of 2.54 mm, which is standard for board-to-board connections.
The housing is made from black glass filled polyester, while the contacts are made of phosphor bronze with gold over tin plating for reliable conductivity.
It operates within a temperature range of -55°C to 125°C, ensuring robust performance in varied environments.
This socket is equipped with 8 contacts arranged in 2 rows, making it suitable for various connection needs.
The BCS-104-F-D-TE is designed for through hole mounting, which provides secure attachment to the PCB.
Yes, it complies with RoHS standards, which restrict the use of hazardous substances in electronic components.
The termination type for the BCS-104-F-D-TE is solder, facilitating a strong electrical connection.
The contacts in this model are oriented straight, which aids in straightforward integration with circuit boards.
This PCB socket is suitable for industrial electronics, telecommunications, instrumentation, and control system assemblies.
The Tiger Claw design provides a pass-through socket strip that ensures secure and stable board-to-board connections.
The country of origin for this PCB socket is India.
