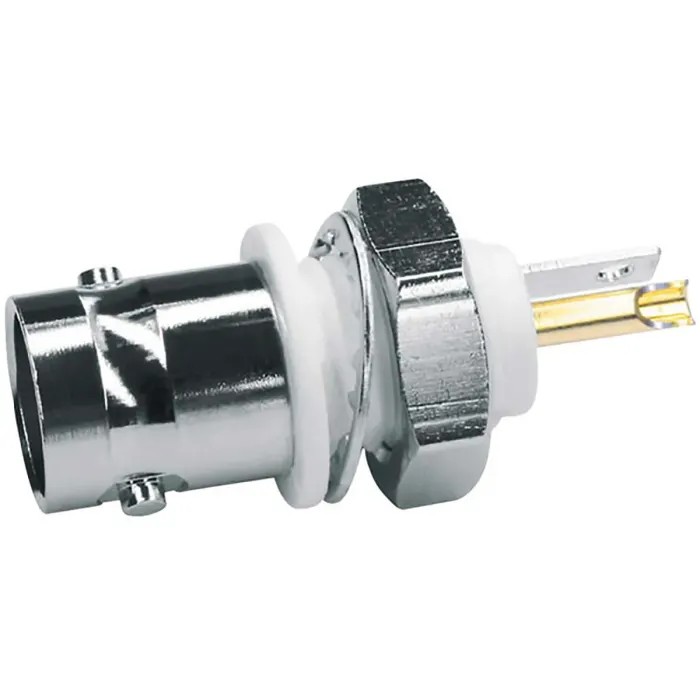

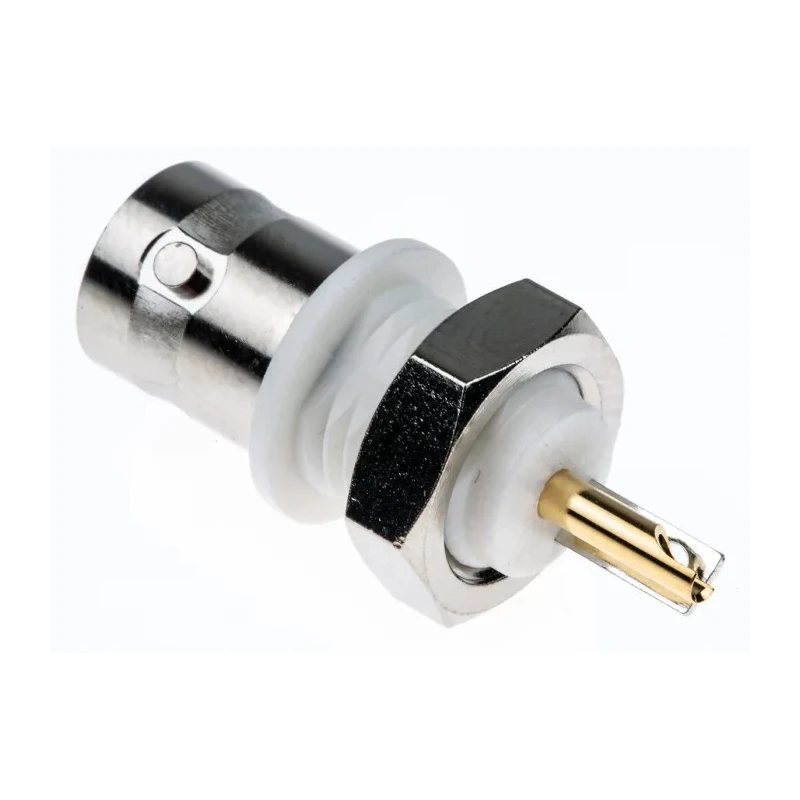

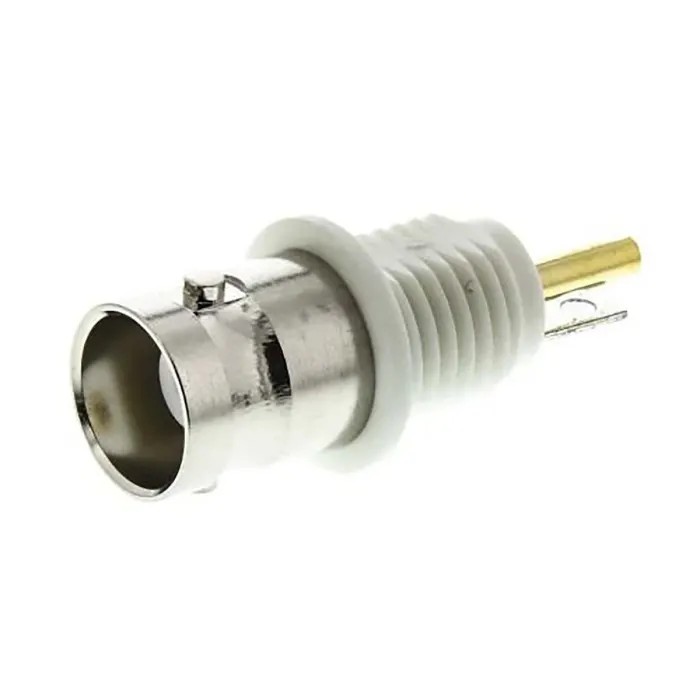

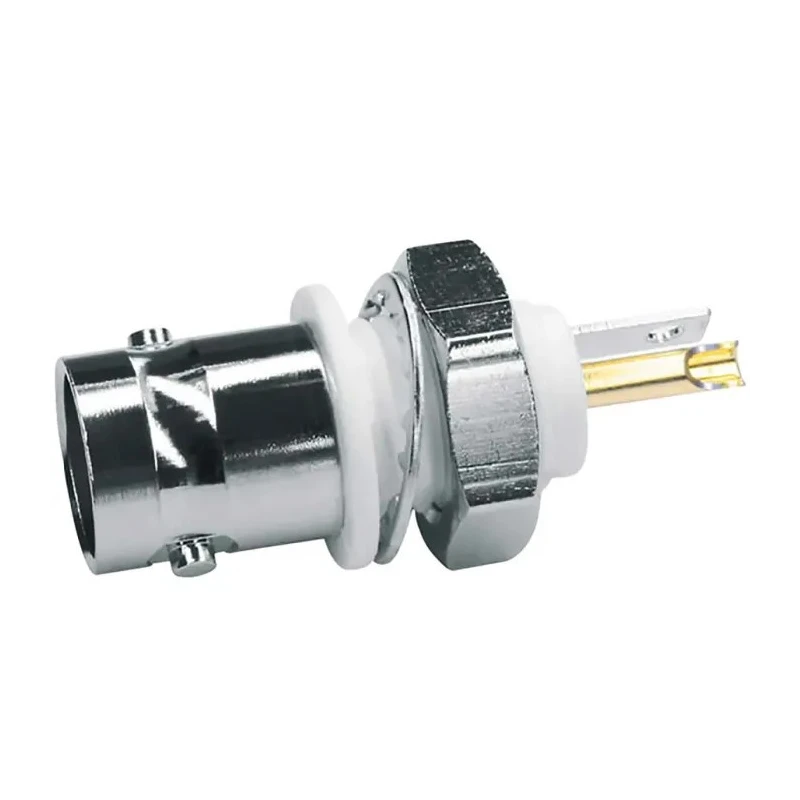

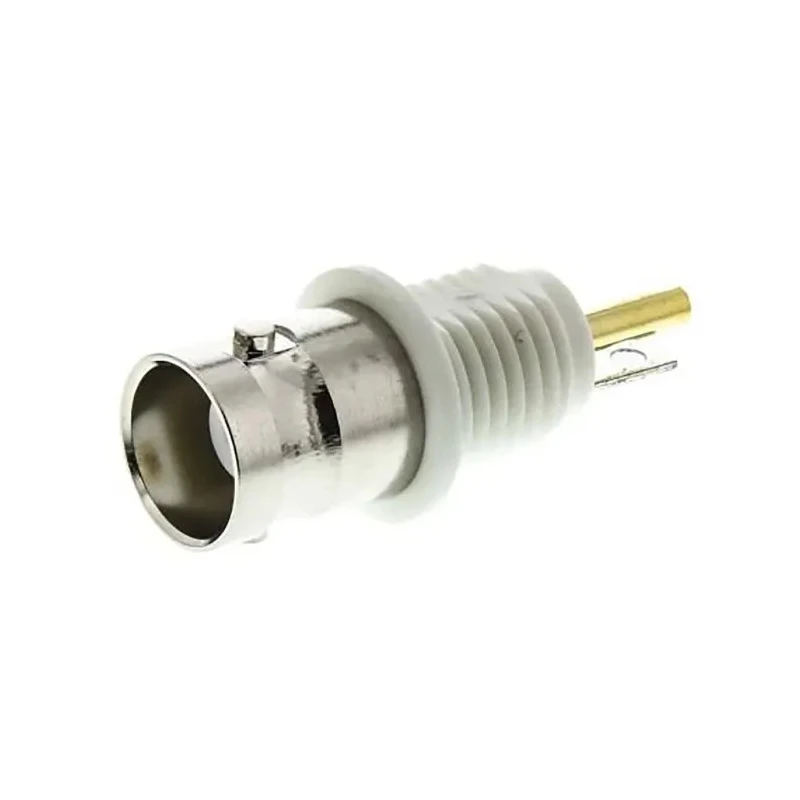

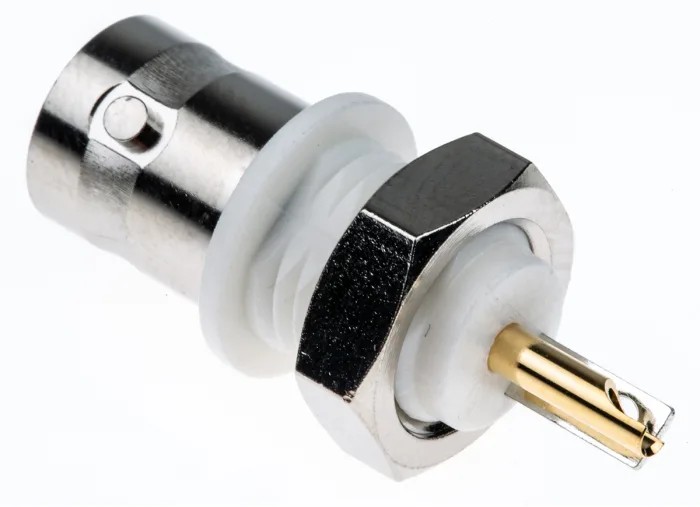

Telegartner BNC Series Coaxial Connector Panel Mount Female, 50 Ω, Straight Body Solder J01001A0043

Free Delivery in India | Lowest Global Shipping Charges

Telegartner BNC Series Coaxial Connector Panel Mount Female, 50 Ω, Straight Body Solder J01001A0043

Name: Telegartner BNC Series Coaxial Connector Panel Mount Female, 50 Ω, Straight Body Solder J01001A0043
Brand: Telegartner
SKU: 160989
Price: 12.6 USD
Availability: InStock



Category Coaxial Connector Brand Telegartner Condition New

Specifications

Country of Origin	Germany
Size	Standard
Brand	Telegartner
Orientation	Straight
Model	J01001A0043
Mount Type	Panel Mount
Operating Frequency	4GHz
Contact Material	Beryllium Copper
Series	BNC
Termination Type	Solder
Maximum Operating Temperature	165°C
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	BNC
Body Plating	Nickel
binder, jack Panel Mount, 50Ω, Solder Termination, Straight BodyBrand	Telegartner

Key Features

This connector features a panel mount type suitable for secure installations.
The body is nickel plated offering durability and corrosion resistance.
Gold plated beryllium copper contact ensures reliable conductivity and signal integrity.
Operates effectively from -65°C up to 165°C temperature range.
Supports frequencies up to 4 GHz, suitable for high-frequency RF applications.
The connector is a standard size with an insulated bulkhead design for added safety.
It provides a normal polarity female contact gender configuration.
Manufactured in Germany ensuring high-quality standards.

Product Description

Telegartner J01001A0043 BNC Series Coaxial Connector is a panel mount female type designed for reliable RF applications requiring 50 Ohm impedance. This connector features a straight body with solder termination, providing secure and stable electrical connections for electronic, industrial, and communication equipment.

The connector body is nickel plated, delivering excellent corrosion protection and mechanical strength. The contact material is beryllium copper plated with gold for superior conductivity and minimal signal loss, ensuring optimal performance in demanding environments.

Designed to operate within a wide temperature range from -65°C to 165°C, this component is suitable for harsh industrial conditions and high-frequency applications up to 4 GHz.

The insulated bulkhead socket design offers enhanced insulation and mounting security on panels. Its bayonet coupling mechanism facilitates quick and reliable mating and unmating, minimizing downtime during maintenance or equipment changes.

Manufactured with high precision in Germany, the connector meets stringent quality standards with a normal polarity configuration and standard size ensuring compatibility with a broad range of coaxial cable assemblies and equipment.

This connector features a panel mount type suitable for secure installations. The body is nickel plated offering durability and corrosion resistance. Gold plated beryllium copper contact ensures reliable conductivity and signal integrity.

Operates effectively from -65°C up to 165°C temperature range. Supports frequencies up to 4 GHz, suitable for high-frequency RF applications. The connector is a standard size with an insulated bulkhead design for added safety.

It provides a normal polarity female contact gender configuration. Manufactured in Germany ensuring high-quality standards. Designed with a bayonet coupling mechanism for quick and secure connections.

This coaxial connector is suitable for electronics manufacturing, telecommunications, test and measurement equipment, and other industrial applications where high-frequency signal integrity is required.

Explore a wide range of Coaxial Connectors in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum operating frequency of this connector is 4 GHz, making it suitable for high-frequency RF applications.

This connector operates effectively within a temperature range of -65°C to 165°C, suitable for harsh industrial conditions.

It uses a solder termination type, providing secure and stable electrical connections.

The impedance of this connector is 50 Ohm, which is standard for RF applications.

The contact is made of beryllium copper plated with gold for superior conductivity, while the body is nickel plated for corrosion resistance.

This model features a panel mount type, suitable for secure installations.

It has a female contact gender configuration, designed for compatibility with standard coaxial cable assemblies.

This connector is manufactured in Germany, ensuring high-quality standards.

The orientation of this connector is straight, which is typical for panel mount applications.

It is suitable for electronics manufacturing, telecommunications, test and measurement equipment, and other industrial applications requiring high-frequency signal integrity.

The connector features an insulated bulkhead design that offers enhanced insulation and mounting security on panels.

This coaxial connector belongs to the BNC series, which is commonly used in RF applications.
