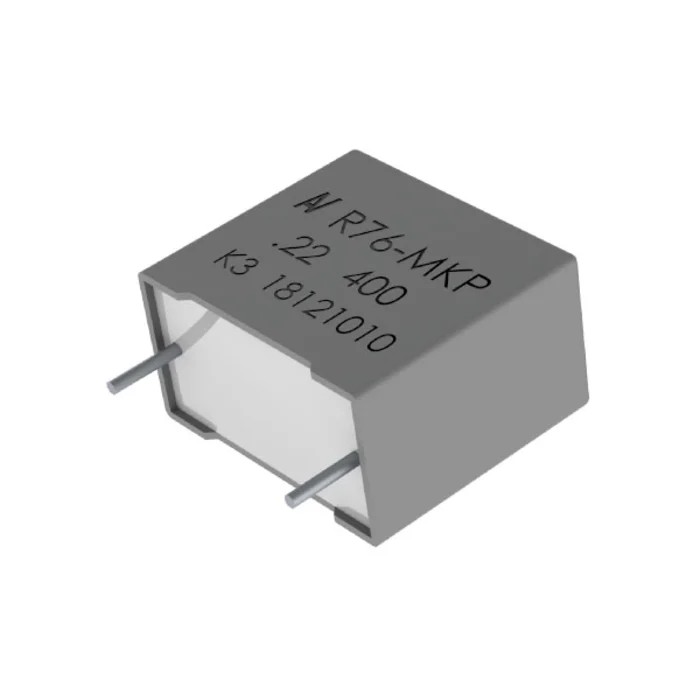

KEMET Film Capacitor 6.8 nF ±5% 630 V dc 400 V ac Through Hole R76PF168050H0J
Specifications
| Country of Origin | China |
|---|---|
| Capacitance Range | 100 pF - 15 μF |
| Brand | KEMET |
| Height | 9mm |
| Length | 13mm |
| Model | R76PF168050H0J |
| Packaging | Bag |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | R76_125C |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 6.8nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Solder |
| Dissipation Factor | 0.1% |
| Lead Length | 25mm |
| Standards/Approvals | RoHS, IEC 60286-2 |
| Pin Count | 2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Automotive Standard | AEC-Q200 |
| Capacitance tolerance | ±2.5%, ±5%, ±10% |
| Lead Spacing | 10 mm - 37.5 mm |
| Equivalent Series Resistance ESR | 94mΩ |
Key Features
- Constructed using polypropylene film and double metallized polyester film electrodes for reliability.
- Features radial leads of tinned wire with 10 mm lead pitch and 25 mm lead length.
- Encapsulated in self-extinguishing, solvent-resistant plastic case with thermosetting resin material.
- Suitable for high frequency and high current applications with operating temperature range from -55°C to +125°C.
- Complies with RoHS and IEC 60286-2 standards and meets automotive AEC-Q200 requirements.
- Applications include resonant circuits, snubber circuits, silicon-controlled rectifier commutation, and circuits requiring high voltage at elevated temperatures.
- Lead-free solder terminal type ensures environmental compliance.
- Equivalent Series Resistance (ESR) of 94 mΩ and low dissipation factor of 0.1% enhance performance.
Product Description
KEMET R76PF168050H0J Film Capacitor is a high quality passive electronic component designed for applications requiring stability and performance in harsh environments. This capacitor offers a capacitance value of 6.8 nF with a precise tolerance of ±5%, and is rated for operation at 630 V dc and 400 V ac, ensuring suitability for demanding voltage conditions.
Constructed from polypropylene film and double metallized polyester film electrodes, it features radial leads made of tinned wire with a lead pitch of 10 mm and lead length of 25 mm. The component is encapsulated within a self-extinguishing plastic case that is resistant to solvents, providing durability and safety in industrial and automotive applications.
With an operating temperature range from -55°C to +125°C, this capacitor supports high-frequency, high-current circuits including resonant and snubber circuits, as well as silicon-controlled rectifier (SCR) and insulated-gate bipolar transistor (IGBT) commutation circuits. Suitable for use in power electronics, industrial electronics, automotive systems, and electronic manufacturing.
The capacitor complies with RoHS and IEC 60286-2 standards and meets automotive AEC-Q200 qualification. Its terminal type is solder, featuring lead-free terminations for environmentally friendly assembly processes. It has a compact form factor with dimensions measuring 13 mm in length, 9 mm in height, and 4 mm in width, and a lead diameter of 0.6 mm.
Constructed of polypropylene film and double metallized polyester film electrodes for reliable performance. Radial lead design with 10 mm pitch ideal for through hole mounting. Encapsulated in a self-extinguishing, solvent-resistant plastic case with thermosetting resin.
Operating temperature range from -55°C to +125°C supports harsh environments. Complies with RoHS and IEC 60286-2 standards and automotive AEC-Q200. Applications include resonant circuits, snubber, SCR/IGBT commutation, and high voltage high current circuits.
Lead-free solder terminals for eco-friendly manufacturing. Compact dimensions of 13x9x4 mm and lead diameter of 0.6 mm. Equivalent Series Resistance (ESR) of 94 mΩ and dissipation factor of 0.1% promote efficiency. Packaged in bags and manufactured in China.
Ideal for industrial electronics, automotive electronics, power supplies, and electronic manufacturing. Explore more Film Capacitors and related components at EnvMart’s Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this film capacitor is 6.8 nF with a tolerance of ±5%.
It is rated for operation at 630 V dc and 400 V ac, making it suitable for demanding voltage conditions.
The operating temperature range is from -55°C to +125°C, allowing it to function in harsh environments.
This model supports through hole mounting, featuring radial leads with a lead pitch of 10 mm.
It is constructed using polypropylene film and double metallized polyester film electrodes, encapsulated in a self-extinguishing plastic case.
The capacitor has dimensions of 13 mm in length, 9 mm in height, and 4 mm in width, with a lead diameter of 0.6 mm.
The Equivalent Series Resistance (ESR) is 94 mΩ, which enhances its performance in high-frequency applications.
It complies with RoHS and IEC 60286-2 standards and meets automotive AEC-Q200 requirements.
It is suitable for high-frequency and high-current applications, including resonant circuits, snubber circuits, and SCR commutation.
This model features lead-free solder terminals, ensuring environmental compliance during assembly.
It is packaged in bags for convenient handling and storage.
The lead length is 25 mm, allowing for flexible installation options.
