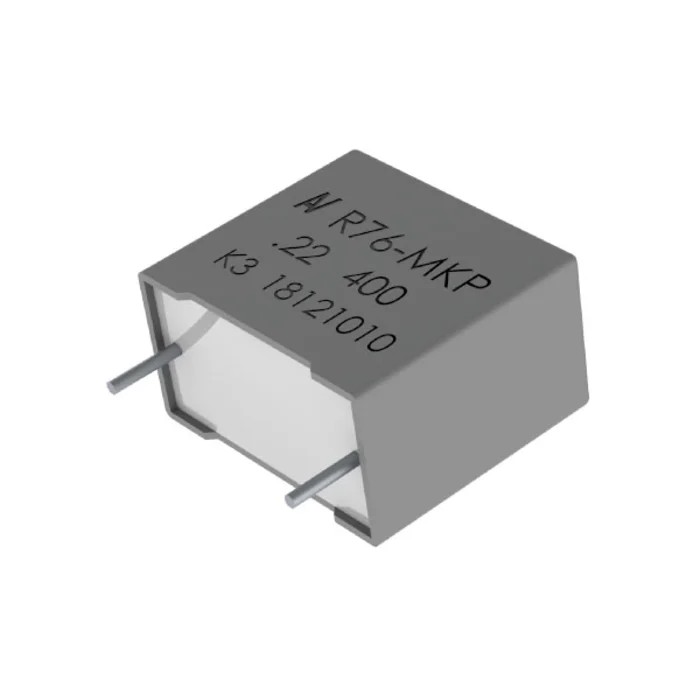

KEMET Film Capacitor 15 nF ±5 %, 400 V dc 250 V ac Through Hole R76MF215050H3J

KEMET R76MF215050H3J film capacitor offers a capacitance of 15 nF with a precise ±5 % tolerance, supporting a rated DC voltage of 400 V and AC voltage of 250 V. It features a through-hole mounting style with a 10 mm lead pitch, making it suitable for various electronic assembly requirements in industrial and laboratory environments.

The capacitor uses polypropylene film and double metallized polyester film electrodes with tinned wire radial leads, providing excellent electrical connection and durability. Its encapsulation in a self-extinguishing, solvent-resistant plastic case with thermosetting resin ensures robustness and safety in harsh environments.

Designed with an operating temperature range from -55°C up to 125°C, this capacitor is ideal for high frequency, high current, and elevated temperature applications typical in resonant circuits, snubber and silicon-controlled rectifier (SCR) circuits, as well as insulated-gate bipolar transistor (IGBT) and SiC MOSFET commutation circuits.

The capacitor features low dissipation factor (0.1 %) and a low equivalent series resistance (42 mΩ), optimizing energy efficiency and reducing heat generation. Lead length is 25 mm with a 0.6 mm lead diameter for ease of soldering. With pin count of 2 and compliance to automotive standard AEC-Q200, this component meets stringent quality and safety requirements.

Capacitance value is 15 nanofarads with ±5 % tolerance. Rated DC voltage of 400 V and AC voltage of 250 V. Through hole mounting with 10 mm lead pitch. Constructed using polypropylene and metallized polyester films. Operating temperature range from -55°C to 125°C.

Low ESR of 42 milliohms and dissipation factor of 0.1%. Leads are tinned wire radial with 25 mm length and 0.6 mm diameter. Meets RoHS and IEC 60286-2 standards and AEC-Q200 automotive certification. Suitable for resonant, snubber, SCR, IGBT, and SiC MOSFET applications.

Encapsulated in a self-extinguishing plastic case with thermosetting resin.

This film capacitor is widely used in industrial electronics, automotive systems, HVAC controls, telecommunications, and power electronics requiring reliable, high performance capacitors. Its robust design ensures longevity even under high voltage, current, and temperature stresses.
