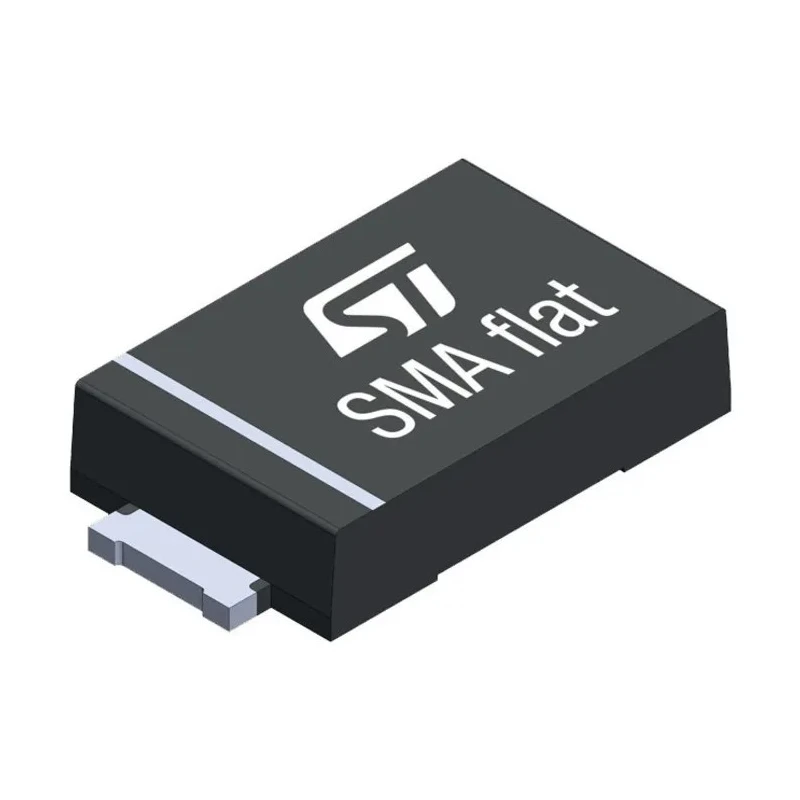

STMicroelectronics 1-Element Uni-Directional TVS Diode 600 W, 2-Pin SMA Flat SMA6F23A

STMicroelectronics SMA6F23A is a single-element, uni-directional Transient Voltage Suppressor (TVS) diode with a peak pulse power dissipation of 600 W, designed to protect sensitive electronic circuits and components from voltage spikes caused by transient surges. This surface mount diode is packaged in a flat SMA package with two pins, making it suitable for modern compact PCBs in industrial and commercial electronics applications.

The SMA6F23A features a minimum breakdown voltage of 25.7 V and a maximum reverse stand-off voltage of 23 V, ensuring precise surge clamping at 49.2 V clamping voltage. Its low leakage currents of approximately 0.2 μA at room temperature help maintain energy efficiency in the circuit.

With an operating temperature range of -55°C to 175°C, the diode is robust for harsh environments requiring high reliability. The peak pulse current is rated at 81 A, allowing it to absorb high transient energy events typical in electrical and power semiconductor assemblies.

The diode’s planar technology provides compatibility with high-end circuits demanding low leakage and high junction temperature performance, guaranteeing long-term stability. Matte tin plating on the leads ensures excellent solderability and connection stability.

Typical applications include industrial electronic equipment, power supplies, communication equipment, and automotive electronics (note: this specific part is not compliant with automotive standard). The device’s slim profile, 1.05 mm height, and its compact 4.6 mm by 2.9 mm footprint enable space-efficient circuit design while retaining strong protection capabilities.

This TVS diode is manufactured in Morocco and is offered as a new product ensuring fresh inventory and quality assurance. It supports electrostatic discharge (ESD) protection to guard against damaging static surges in manufacturing or handling.

Surface mount SMA flat package allows integration in space-constrained applications. Uni-directional device optimizes protection for polarized circuits. High peak power rating of 600 W permits handling of large transient surges.

Wide operating temperature range suitable for industrial conditions. Low leakage current minimizes energy waste and thermal stress. Matte tin plating enhances solder joint reliability over time. ESD protection included to safeguard against electrostatic events.
