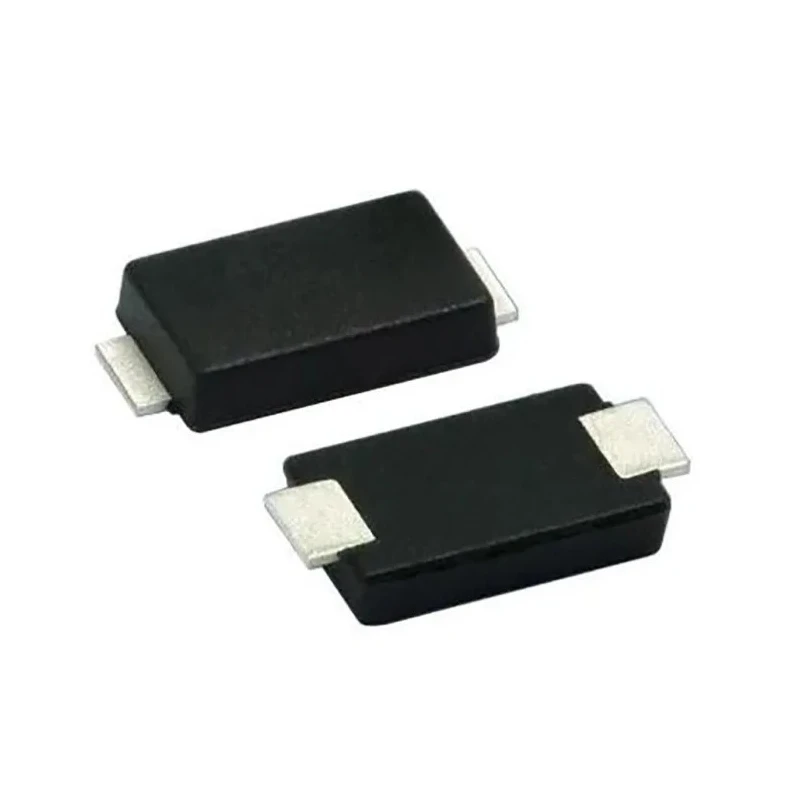

STMicroelectronics 1-Element Uni-Directional 600W TVS Diode, 2-Pin SMA Flat SMA6F36A
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 4.6mm |
| Model | SMA6F36A |
| Width | 2.9mm |
| Mount Type | Surface |
| Series | SMA6FxxA |
| Maximum Operating Temperature | 175°C |
| Package Type | SMA Flat |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 58.1V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 44.2V |
| Maximum Reverse Stand-off Voltage Vwm | 36V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 10.3A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single element diode designed for uni-directional transient voltage suppression.
- Surface mount SMA flat package with 2 pins for easy PCB integration.
- Provides peak pulse power dissipation of 600 watts to protect sensitive circuits.
- Minimum breakdown voltage of 44.2 volts with a clamping voltage of 58.1 volts.
- Maximum reverse stand-off voltage of 36 volts suitable for various power electronics.
- Operates reliably within a temperature range from -55°C to 175°C.
- Features low maximum reverse leakage current of 1 microampere to minimize power loss.
- Designed with matte tin plating lead finish for durability and long-term stability.
Product Description
STMicroelectronics SMA6F36A is a high-performance 1-element uni-directional TVS (Transient Voltage Suppressor) diode rated at 600 watts pulse power dissipation. Packaged in a compact 2-pin SMA flat surface mount form factor, it is ideal for safeguarding sensitive electronic circuits from transient voltage surges and spikes.
Utilizing planar technology, this diode provides a low leakage current and a high junction temperature tolerance up to 175°C, ensuring reliability and stability in demanding industrial, automotive, and telecommunications applications.
Key technical specifications include a minimum breakdown voltage of 44.2V, a maximum reverse stand-off voltage of 36V, and a clamping voltage of 58.1V. It supports a maximum peak pulse current of 10.3A with a test current of 1mA.
The device is suitable for protecting power supply lines and sensitive semiconductor devices against ESD, lightning, and other transient surges. Its matte tin plated leads provide robust solderability and environmental resistance.
Single element uni-directional configuration for effective transient suppression. High peak pulse power rating of 600W provides strong surge protection. Wide operating temperature from -55°C to 175°C meets industrial standards.
Compact SMA flat package ideal for space-constrained PCB layouts. Low reverse leakage current minimizes power dissipation during normal operation. Matte tin plating ensures solderability and corrosion resistance. Compliance with required quality and reliability standards for semiconductor devices.
This TVS Diode from STMicroelectronics is a trusted solution for transient voltage protection in electronics manufacturing, electrical systems, automotive control units, and industrial equipment. It helps ensure device longevity and system integrity by providing robust surge immunity.
Explore more STMicroelectronics semiconductor solutions and transient voltage protection devices in related product categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMA6F36A TVS diode has a peak pulse power dissipation of 600 watts, providing strong surge protection for sensitive circuits.
The minimum breakdown voltage for this model is 44.2 volts, which helps in effectively suppressing transient voltages.
The clamping voltage of the SMA6F36A is 58.1 volts, ensuring that the voltage does not exceed this level during transient events.
The maximum reverse stand-off voltage of the SMA6F36A is 36 volts, making it suitable for various power electronics applications.
This model supports a maximum peak pulse current of 10.3 amperes, which is critical for handling transient surges.
The dimensions of this diode are 4.6mm in length, 2.9mm in width, and 1.05mm in height, making it compact for PCB integration.
The operating temperature range for this diode is from -55°C to 175°C, allowing it to function reliably in extreme conditions.
This model comes in a surface mount SMA flat package, which is designed for easy integration onto PCBs.
The maximum reverse leakage current for the SMA6F36A is 1 microampere, which helps minimize power loss during normal operation.
This TVS diode is suitable for protecting power supply lines and sensitive semiconductor devices against ESD, lightning, and other transient surges.
The SMA6F36A is a single element diode, designed specifically for uni-directional transient voltage suppression.
The leads of the SMA6F36A are finished with matte tin plating, providing robust solderability and corrosion resistance.
