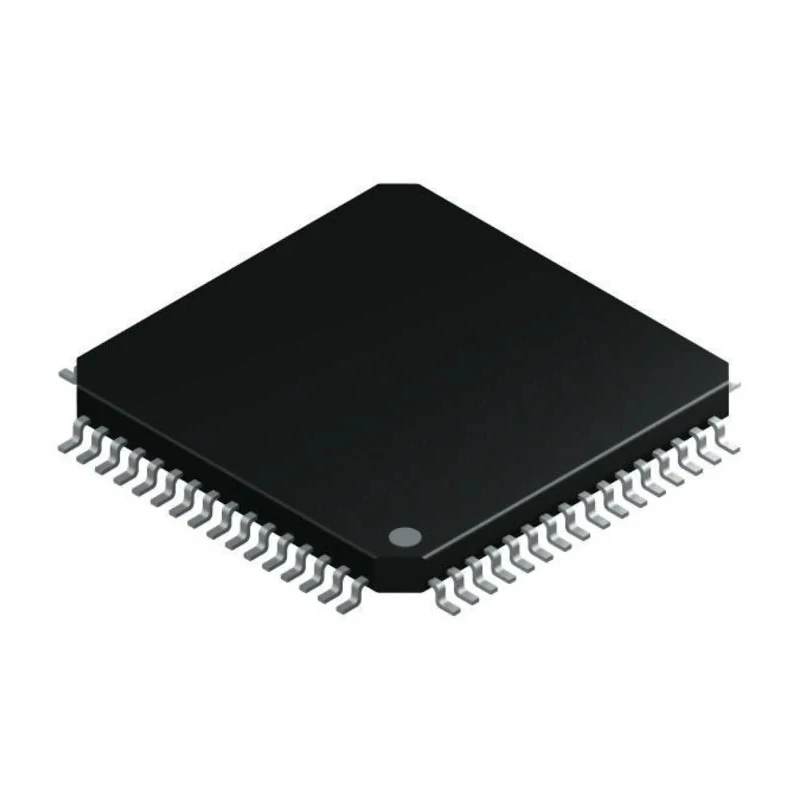

Microchip 16 bit Digital Signal Processor 40 MHz 256kB FLASH 64-Pin TQFP DSPIC33FJ256GP506-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | DSPIC33FJ256GP506-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 19bit |
| Timer Resolution | 16bit |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 9 |
| Instruction Set Architecture | Modified Harvard |
| Program Memory Type | FLASH |
| Device Million Instructions per Second | 70MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
Key Features
- Operates at a maximum clock frequency of 40 MHz ensuring efficient processing performance.
- Features 256kB of FLASH program memory and 16kB of RAM for flexible application development.
- Equipped with a 16-bit data bus and a Modified Harvard architecture for optimized instruction handling.
- Includes multiple peripherals such as 18 channel 19-bit ADC, 9 timers, 1 PWM unit and advanced communication modules.
- Designed for reliability with automotive standard AEC-Q100 certification and operating temperature range from -40°C to 85°C.
- Comes in a compact 64-pin TQFP surface mount package, measuring 10 mm by 10 mm with 1.05 mm height.
- Supports a rich instruction set with 83 base instructions optimized for DSP and MCU integration.
Product Description
Microchip DSPIC33FJ256GP506-I/PT is a high-performance 16 bit Digital Signal Processor operating at 40 MHz with 256kB FLASH memory, designed for use in industrial, automotive, consumer electronics, and embedded control applications requiring advanced DSP performance combined with MCU simplicity.
This device integrates a Modified Harvard architecture with 16 bit data bus width, 24 bit instructions, and linear program memory addressing up to 4 million instructions. The internal RAM size is 16kB to support complex computation and data storage.
Notable peripherals include a 12/10-bit ADC with up to 32 channels (19 bit ADC resolution, 18 channels on this model), multiple 16-bit timers and PWM units, communication interfaces such as SPI, I2C, UART, and an enhanced CAN controller. The processor features 70 MIPS performance, enabling demanding signal processing tasks.
The 64-pin TQFP package is compact and suitable for surface mounting on PCBs, measuring 10 mm in length and width, with a height of 1.05 mm. It operates across a wide temperature range from -40°C to 85°C, making it viable for automotive and harsh environment use, certified to the AEC-Q100 standard.
This processor is ideal for applications such as motor control, power conversion, audio processing, and industrial automation where precise timing, high processing power, and integrated peripherals are required.
Operates at 40 MHz maximum clock frequency delivering 70 MIPS CPU speed. 256kB FLASH program memory with linear addressing supporting complex firmware. 16kB RAM size for data storage and manipulation. Advanced analog and digital peripherals including 19-bit ADC resolution and multiple timers.
Compliant with automotive standards (AEC-Q100) ensuring robustness and reliability. Compact 64-pin TQFP surface mount package suitable for high-density PCB applications. Wide operating temperature range from -40°C to 85°C for industrial and automotive environments.
Explore a wide selection of Microchip Digital Signal Processors and microcontrollers for advanced embedded system designs on EnvMart.
