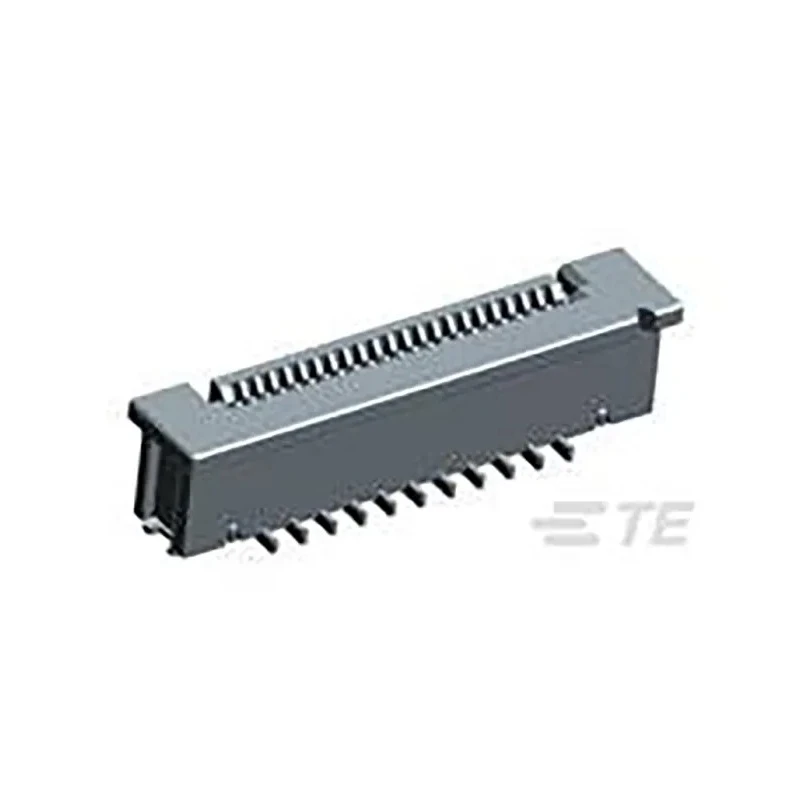

TE Connectivity 0.5 mm Pitch 40 Way Vertical Female FPC Connector ZIF Vertical Contact 4-1734742-0

TE Connectivity 4-1734742-0 is a high-quality 0.5 mm pitch 40 way vertical female FPC Connector that features a zero insertion force (ZIF) vertical contact design. This connector is engineered for dependable and easy-to-install surface mount FPC connections, suitable for a wide range of electronic devices including laptops, printers, medical equipment, and communication equipment.

The connector utilizes phosphor bronze contact material plated with gold to provide excellent electrical conductivity and corrosion resistance. It is designed with a vertical orientation and contacts positioned at the bottom, facilitating seamless integration with flexible printed circuits. The connector incorporates a locking mechanism to ensure secure mating and prevent accidental disconnections during operation.

Capable of handling a current rating of 5 amperes and operating at voltages up to 50 volts AC, this connector is reliable under typical industrial and commercial use conditions. Its temperature tolerance ranges from minus 20 degrees Celsius to 85 degrees Celsius, making it fit for diverse environmental conditions.

Structurally, the housing is constructed from durable polyamide, providing mechanical strength while maintaining a lightweight profile. The ZIF termination reduces wear on mating contacts by allowing easy insertion and removal without excessive force. This contributes to longer connector lifespan and reduced maintenance requirements.

Typically, this connector is utilized in computing devices such as laptops and notebooks, as well as in peripherals like disk drives, printers, copiers, and cellular phones. Its compact form factor and precise pitch spacing accommodate modern miniaturized electronics demanding reliable interconnection solutions.

Supports 40 female contacts with 0.5 mm pitch spacing. Phosphor bronze contacts plated with gold ensure excellent conductivity and corrosion resistance. Vertical orientation with bottom contact position for flexible PCB applications.

Zero insertion force (ZIF) vertical termination supports easy mating and reduces contact wear. Current rating of 5A and voltage rating of 50V AC suitable for various electronic applications. Durable polyamide housing with a locking mechanism for secure connection.

Operating temperature range from -20°C to 85°C enables versatile usage environments. Single row connector design optimized for surface mount PCB assembly. Extensively used in industrial, computing, communication, and medical equipment.

For more detailed technical information, consult manufacturers' datasheets and related documentation. Explore the Electronics & Electricals category on EnvMart for additional high-quality connectors and components.
