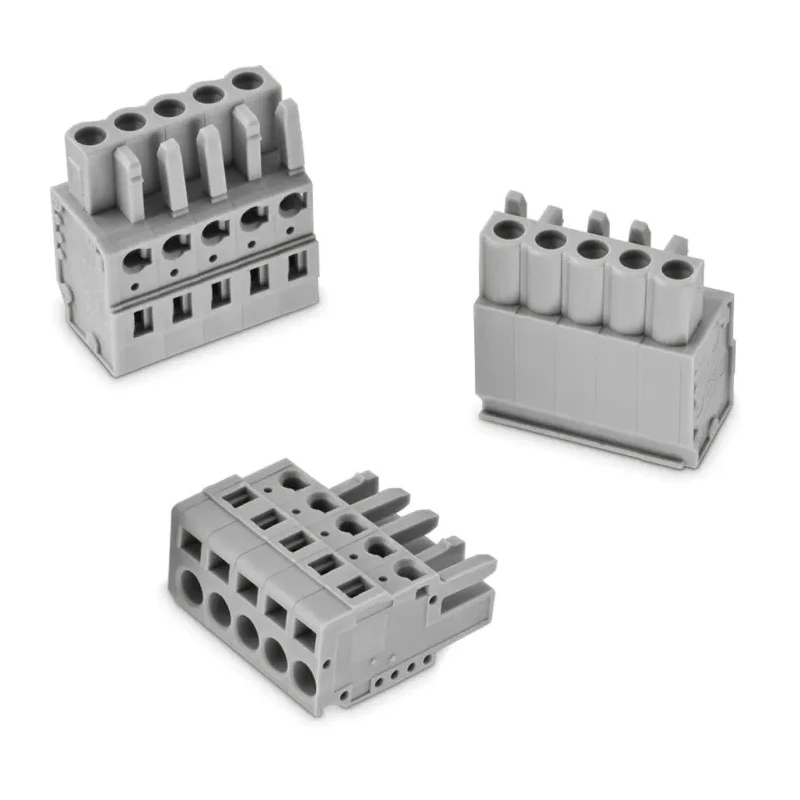

Wurth Elektronik 369B Series Pluggable Terminal Block 5-Contact 5 mm Pitch 1 Row 2.5kV 16A Polyamide 66 691369700005B
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 2.5kV |
| Brand | Wurth Elektronik |
| Colour | Grey |
| Orientation | Horizontal |
| Current | 16A |
| Length | 26.5mm |
| Model | 691369700005B |
| Depth | 26.5mm |
| Width | 14.6mm |
| Housing Material | Polyamide 66 |
| Series | 369B |
| Number of Rows | 1 |
| Pitch | 5mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 5 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.081mm² |
| Maximum Wire Size mm² | 3.31mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 12AWG |
Key Features
- Supports a current rating of 16A for robust electrical applications.
- Constructed with durable Polyamide 66 housing for enhanced insulation and longevity.
- Designed with a horizontal orientation and male connector gender for versatile PCB mounting.
- Compatible with wire sizes ranging from 0.081 mm² (28 AWG) to 3.31 mm² (12 AWG).
- Operates safely at voltage levels up to 2.5 kV.
- Compact dimensions measuring 26.5 mm in length, 14.6 mm in width, and 26.5 mm in depth.
- RoHS compliant ensuring environmental safety and adherence to standards.
Product Description
Wurth Elektronik 691369700005B Pluggable Terminal Block is engineered for high-performance electronic component applications requiring reliable, efficient connections. With 5 contacts arranged in a single row at a 5 mm pitch, this terminal block supports current ratings up to 16 amperes, making it suitable for industrial and commercial PCB integration.
The terminal block housing is made from Polyamide 66 material, offering excellent durability, chemical resistance, and electrical insulation. Its horizontal orientation and male connector design facilitate easy installation and secure connections in various circuit board assemblies.
This component accepts wire sizes from 0.081 mm² (28 AWG) up to 3.31 mm² (12 AWG), providing versatility for different wiring configurations. It supports high-voltage operation up to 2.5 kV, ensuring safety and reliability in demanding electrical environments.
Measuring 26.5 mm length, 14.6 mm width, and 26.5 mm depth, the compact footprint enables efficient use of PCB space. The product complies with RoHS standards, guaranteeing it meets environmental regulations for hazardous substances.
Wurth Elektronik’s 369B Series offers reliable terminal block solutions ideal for electronic component manufacturing, power and connectors assembly, automation, and industrial control systems. The robust construction and precise engineering make it a dependable choice for electronics designers requiring secure and efficient power connections.
Supports current rating of 16A for durable electrical performance. Polyamide 66 housing material provides strong insulation and stability. Horizontal orientation with male connector gender facilitates PCB mounting. Accommodates wire sizes from 0.081 mm² to 3.31 mm² (28 AWG to 12 AWG).
Voltage rating up to 2.5 kV for safe high-voltage applications. Compact size dimensions: 26.5 x 14.6 x 26.5 mm (L x W x D). RoHS compliant for environmental safety and regulatory adherence.
Discover the full range of Wurth Elektronik terminal blocks and components with EnvMart’s industrial and electronic components catalog for comprehensive design and manufacturing support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block supports a current rating of 16A, making it suitable for robust electrical applications.
It operates safely at voltage levels up to 2.5 kV, ensuring reliability in high-voltage applications.
This model accommodates wire sizes ranging from 0.081 mm² (28 AWG) to 3.31 mm² (12 AWG), providing versatility for different wiring configurations.
The compact dimensions of the terminal block are 26.5 mm in length, 14.6 mm in width, and 26.5 mm in depth.
The housing is constructed from Polyamide 66, which offers excellent durability and electrical insulation.
This terminal block features 5 contacts arranged in a single row.
It is designed with a horizontal orientation, facilitating easy installation on PCBs.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
The contacts are arranged at a pitch of 5 mm, which is standard for many PCB applications.
This model features a male connector gender, which is suitable for various circuit board assemblies.
The country of origin for this terminal block is China.
This terminal block is part of the Wurth Elektronik 369B Series, known for its reliable terminal block solutions.
