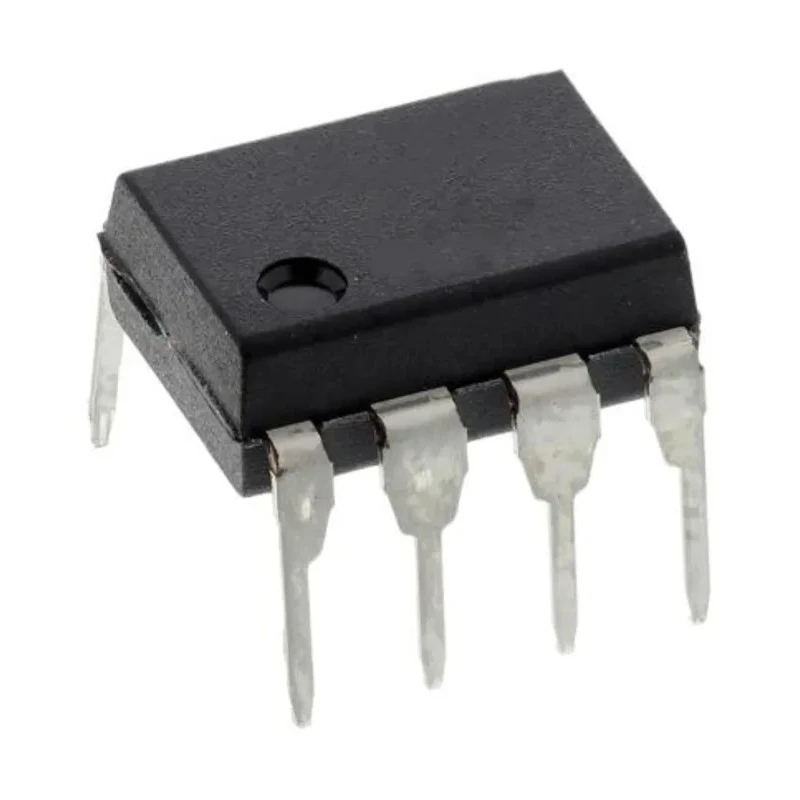

Maxim Integrated 8-Bit 2-Channel SPI Serial DAC, Surface Mount DIP Package MAX522CPA+

Free Delivery in India | Lowest Global Shipping Charges

Maxim Integrated 8-Bit 2-Channel SPI Serial DAC, Surface Mount DIP Package MAX522CPA+

Name: Maxim Integrated 8-Bit 2-Channel SPI Serial DAC, Surface Mount DIP Package MAX522CPA+
Brand: Maxim Integrated
SKU: 159368
Price: 11.49 USD
Availability: InStock



Category Digital to Analogue Converter Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Resolution	8 bit
Brand	Maxim Integrated
Height	5.08mm
Length	9.9mm
Model	MAX522CPA+
Width	8.2mm
Mount Type	Surface
Settling Time	70μs
Output type	Analogue Voltage
Maximum Operating Temperature	70°C
Package Type	DIP
Minimum Operating Temperature	0°C
Number Of Channels	2
Interface Type	SPI Serial
Architecture	R-2R
Pin Count	8
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.7V

Key Features

Operates from a single 2.7V to 5.5V supply voltage.
Features R-2R architecture with dual buffered voltage outputs.
Low power consumption with 1mA operating and under 1μA shutdown current.
Independently programmable shutdown mode increases power efficiency.
Supports SPI, QSPI, and Microwire compatible serial interfaces at 5MHz.
Compact 8-pin DIP surface mount package with 8.2mm width and 9.9mm length.
Operating temperature range of 0°C to 70°C for reliable commercial use.
Ideal for digital gain and offset control and power amplifier bias applications.

Product Description

Maxim Integrated MAX522CPA+ is a high precision 8-bit, 2-channel digital-to-analogue converter designed for reliable operation in electronic circuits requiring accurate analogue voltage output through a serial SPI interface. Operating from a single supply voltage ranging between 2.7V and 5.5V, this DAC features an R-2R architecture with dual buffered voltage outputs to ensure low noise and high integrity signal generation.

The device boasts low power consumption with just 1mA operating current and an ultra-low shutdown current below 1μA, featuring independently programmable shutdown modes to accommodate power-sensitive applications. The MAX522CPA+ supports SPI, QSPI, and Microwire compatible serial interfaces running at up to 5MHz, simplifying integration in a wide variety of electronic systems.

Housed in a compact 8-pin DIP package measuring 8.2mm in width, 9.9mm in length, and 5.08mm in height, this DAC fits in designs requiring space efficiency. Its standardized temperature operation window from 0°C to 70°C ensures robust performance across commercial temperature ranges.

This DAC is well-suited for industrial, laboratory, and consumer electronics applications including digital gain and offset control, power amplifier bias control, programmable current and voltage sources, and voltage-controlled oscillator tuning. Its precision and serial interface versatility make it an essential component in instrumentation and control systems.

Operates from a single 2.7V to 5.5V supply voltage. Dual buffered voltage output with low noise. Low operating current of 1mA and shutdown current less than 1μA. Programmable shutdown modes for enhanced power savings. Compatible with SPI, QSPI, and Microwire interfaces at up to 5MHz.

Compact 8-pin DIP surface mount package with precise dimensions. Operating temperature range of 0°C to 70°C for commercial use. Applications include digital gain, offset control, power amplifier bias, programmable sources, and VCO tuning.

This product is a standard component in digital-to-analogue converter category from Maxim Integrated, trusted in the semiconductor industry. Explore more semiconductor and DAC components in EnvMart for various electronic and industrial design needs.

Explore more products in our Digital to Analogue Converter category.
