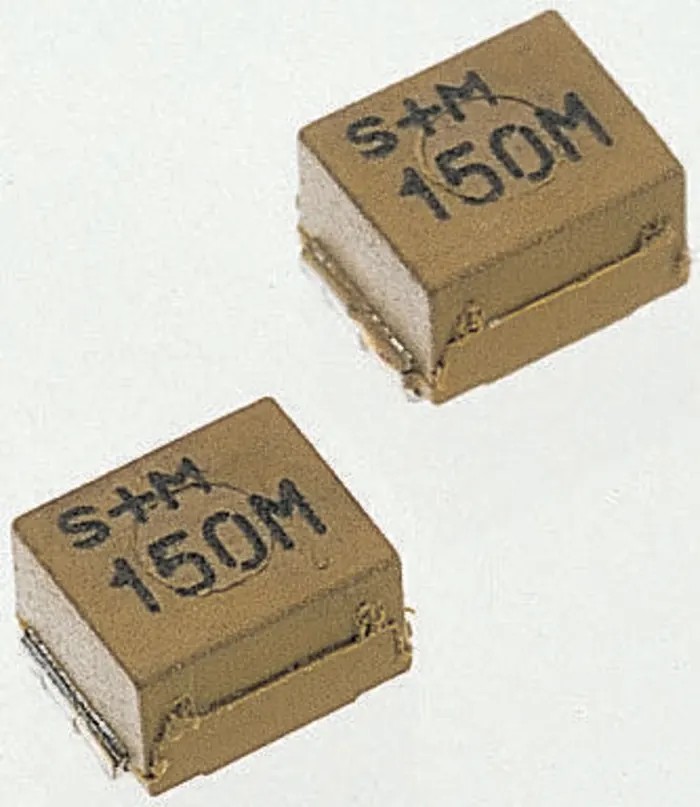

TDK Unshielded Wirewound Surface Mount Inductor with Ceramic Core 100 nH ±10% 440 mA Idc Q25 1210 B82422A3101K100

TDK B82422A3101K100 is an unshielded wirewound surface mount inductor featuring a ceramic core, designed for precise inductance in demanding electronic applications. It delivers an inductance value of 100 nH with a tolerance of ±10%, making it suitable for high-frequency circuits that require reliable performance.

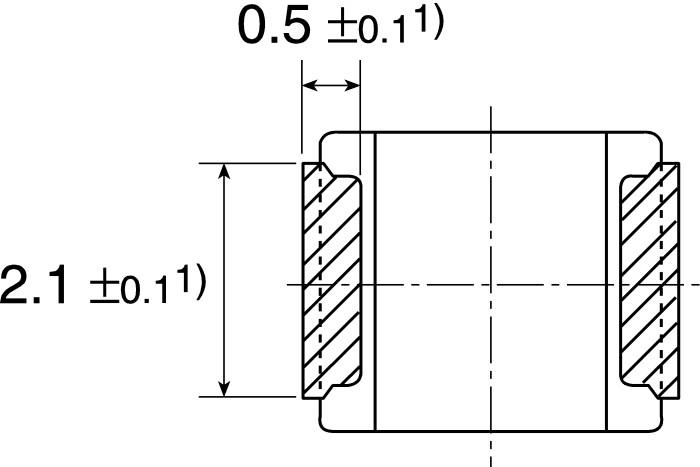

The 1210 package size, with compact dimensions of 3.2mm length, 2mm height, and 2.5mm depth, allows for efficient PCB space utilization. The inductor supports a maximum DC current of 440 mA and exhibits a maximum DC resistance of 260 mΩ, ensuring minimal power loss during operation.

Constructed with a wirewound inductor architecture and a ceramic core, this component provides high Q factor stability, minimum quality factor rating of 25, and a maximum self-resonant frequency up to 1 GHz. It is RoHS compliant and meets the automotive industry standard AEC-Q200, affirming its reliability for automotive and industrial environments.

The termination style of solder makes it well-suited for surface mount technology, providing excellent mechanical and electrical connection on PCBs. This inductor tolerates operating temperatures from -55°C to 125°C, handling a broad range of industrial and commercial conditions.

Its construction supports solder reflow processes, including infrared and vapor phase, as well as wave soldering, facilitating integration into automated manufacturing lines. The absence of magnetic shielding assists in applications where external magnetic interference needs consideration.

High-quality wirewound construction with ceramic core for stability. 1210 package size with dimensions 3.2mm x 2mm x 2.5mm. Maximum DC current of 440 mA ensuring reliable operation. RoHS compliant and automotive standard AEC-Q200 certified.

Reflow and wave soldering compatible termination style. Maximum self-resonant frequency of 1 GHz for high-frequency use. Inductance tolerance of ±10% for precision. Minimum quality factor of 25 for efficient energy storage.

Maximum DC resistance 260 mΩ minimizes power loss. Operating temperature range from -55°C to 125°C.

This TDK wirewound Surface Mount Inductor is ideal for use in industrial electronics, automotive circuits, power supplies, telecommunications, and high-frequency applications requiring precision and reliability.
