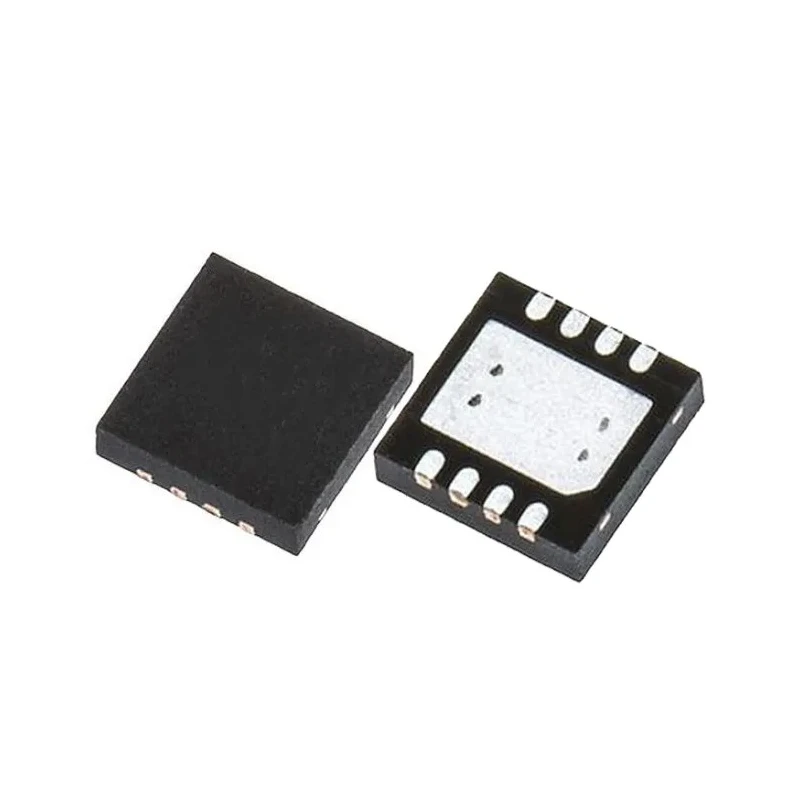

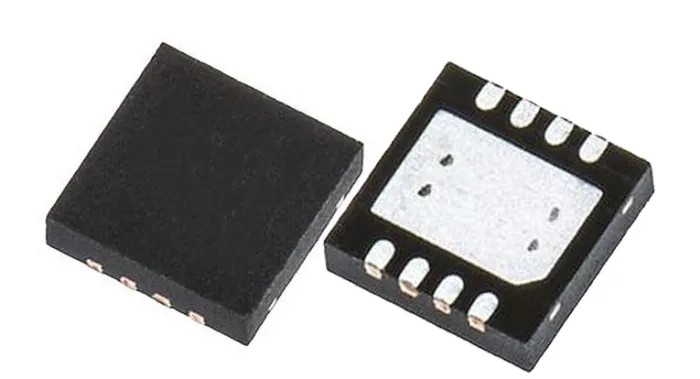

STMicroelectronics 64 kB EEPROM 900 ns 8-Pin UFDFPN Serial-I2C Memory M24SR64-YMC6T/2
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 600μm |
| Length | 2.1mm |
| Model | M24SR64-YMC6T/2 |
| Width | 3mm |
| Mount Type | Surface |
| Series | ST2.5 |
| Maximum Operating Temperature | 85°C |
| Package Type | UFDFPN |
| Minimum Operating Temperature | -40°C |
| Memory size | 64kB |
| Interface Type | Serial-I2C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 100mA |
| Maximum Clock Frequency | 1MHz |
| Organisation | 8K x 8 bit |
| Number of Bits per Word | 8 |
| Maximum Random Access Time | 900ns |
| Number of Words | 8K |
| Single supply voltage | 2.7 V to 5.5 V |
| Internal tuning capacitance | 25 pF |
| GPO | configurable General Purpose Output |
| RF disable | activation/deactivation of RF commands |
Key Features
- Features a two-wire I2C serial interface supporting 1 MHz protocol.
- Operates with single supply voltage from 2.7 V to 5.5 V.
- Includes contactless interface with 106 Kbps data rate and internal tuning capacitance of 25 pF.
- Offers 8-Kbyte (64-kbit) EEPROM memory with 200-year data retention.
- Supports 1 million write cycles at 25 °C with robust endurance at elevated temperatures.
- Equipped with 7-byte unique identifier (UID) and 128-bit password protection.
- Compact 8-lead UFDFPN surface mount package.
- Configurable General Purpose Output and RF disable features.
Product Description
STMicroelectronics M24SR64-YMC6T/2 is a high-performance 64 kB EEPROM memory device with an ultra-fast 900 ns maximum random access time. It comes in an 8-Pin UFDFPN package with a serial I2C interface, ideal for industrial, automotive, and consumer electronics applications requiring reliable non-volatile memory storage.
This memory chip supports a two-wire I2C protocol with a maximum clock frequency of 1 MHz and operates on a single supply voltage from 2.7 V to 5.5 V. It features an internal tuning capacitance of 25 pF and a contactless interface capable of 106 Kbps data rate, facilitating advanced communication methods.
The 8-Kbyte EEPROM memory offers exceptional data retention up to 200 years and an impressive endurance of 1 million write cycles at room temperature. Security features include a 7-byte unique identifier (UID) and 128-bit password protection, ensuring data integrity and secure access.
The device supports reading and writing up to 246 bytes in a single command and includes configurable digital pads such as a General Purpose Output (GPO) and RF disable functionality for enhanced control over RF commands.
Designed to meet the automotive standard AEC-Q100, this EEPROM provides durable performance in harsh environments with an operating temperature range from -40 °C to 85 °C. Its compact UFDFPN package allows for space-efficient surface mounting on PCBs.
This EEPROM is suitable for use in automotive electronics, industrial control systems, consumer electronics, and secure identification applications. Features a two-wire I2C serial interface supporting 1 MHz protocol. Operates with single supply voltage from 2.7 V to 5.5 V.
Includes contactless interface with 106 Kbps data rate and internal tuning capacitance of 25 pF. Offers 8-Kbyte (64-kbit) EEPROM memory with 200-year data retention. Supports 1 million write cycles at 25 °C with robust endurance at elevated temperatures.
Equipped with 7-byte unique identifier (UID) and 128-bit password protection. Compact 8-lead UFDFPN surface mount package. Configurable General Purpose Output and RF disable features. Certified to automotive standard AEC-Q100.
Wide temperature range from -40 °C to 85 °C supporting automotive and industrial use cases. Explore more semiconductor memory components from STMicroelectronics and find reliable industrial-grade EEPROM solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This EEPROM has a memory size of 64 kB (8 K x 8 bit).
The maximum operating temperature for this model is 85 °C.
It uses a two-wire I2C serial interface with a maximum clock frequency of 1 MHz.
The EEPROM operates on a single supply voltage ranging from 2.7 V to 5.5 V.
The maximum random access time for this EEPROM is 900 ns.
The dimensions of the 8-lead UFDFPN package are 2.1 mm in length, 3 mm in width, and 600 μm in height.
It supports up to 1 million write cycles at 25 °C.
Yes, it includes a 7-byte unique identifier (UID) and 128-bit password protection.
The minimum operating temperature is -40 °C.
The EEPROM offers exceptional data retention of up to 200 years.
It is suitable for automotive electronics, industrial control systems, consumer electronics, and secure identification applications.
It includes configurable General Purpose Output (GPO) and RF disable features for enhanced control over RF commands.
