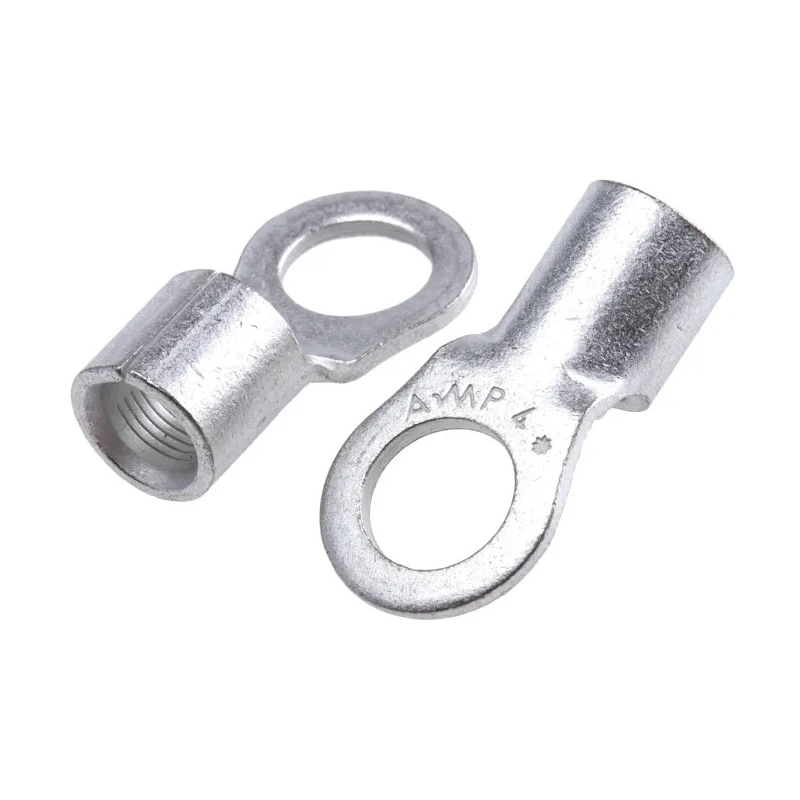

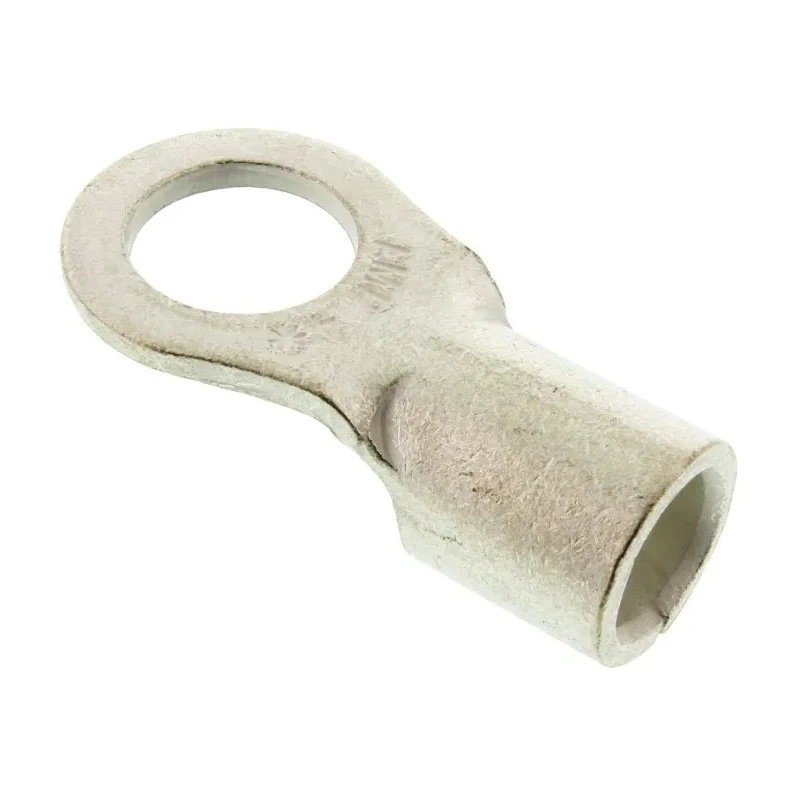

RS PRO Solistrand Uninsulated Crimp Ring Terminal M10 Stud Size 4 AWG Wire Size 26.7 mm² 170°C 160075
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| THICKNESS | 1.78mm |
| Model | 160075 |
| Insulation | Uninsulated |
| Overall Length | 33.2mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 16.8mm² |
| Maximum Wire Size mm² | 26.7mm² |
| Maximum Wire Size AWG | 4AWG |
| Outer Ring Diameter | 16.66mm |
| Inner Ring Diameter | 10.49mm |
| Stud Size | M10 |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
Key Features
- Constructed from fine grade high conductivity copper for optimal electrical performance.
- Electro tin plating enhances resistance to corrosion.
- Robust design suitable for harsh industrial environments and high tensile strength.
- Brazed seams increase barrel strength and durability.
- Dimpled and serrated barrel maximizes electrical contact area and tensile strength after crimping.
- Bell shaped barrel entrance facilitates quick and easy wire insertion, reducing installation time.
- Applicable in materials handling equipment, motors, heavy equipment, transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and control instruments.
Product Description
TE Connectivity 160075 Solistrand uninsulated crimp ring terminal is engineered for terminating solid and stranded wire with M10 stud size and 4 AWG wire capacity. It features a robust copper construction with tin plating, delivering excellent electrical conductivity and corrosion resistance. The ring terminal is designed for superior performance in demanding environments, with brazed seams reinforcing barrel strength and serrated barrel surfaces enhancing tensile strength and electrical contact reliability.
The bell-shaped barrel mouth allows for straightforward wire insertion, reducing assembly time. Rated for a maximum operating temperature of 170°C, this terminal complies with ANSI/ESD S20.20:2021 Electrostatic Control standards and is RoHS compliant, ensuring safety and environmental compliance in industrial applications.
These Solistrand Ring Terminals are broadly utilized across various sectors including materials handling equipment, motors, heavy industrial machinery, pad and pole mount transformers, switchgear, telecommunications, household appliances, control panels, power supply units, and instrumentation controls. Their durability and electrical reliability make them ideal for harsh or industrial environments.
Constructed from fine grade high conductivity copper for optimal electrical performance. Electro tin plating enhances resistance to corrosion. Robust design suitable for harsh industrial environments and high tensile strength.
Brazed seams increase barrel strength and durability. Dimpled and serrated barrel maximizes electrical contact area and tensile strength after crimping. Bell shaped barrel entrance facilitates quick and easy wire insertion, reducing installation time.
Meets ANSI/ESD S20.20:2021 Electrostatic Control Standard and RoHS compliant.
Applicable in materials handling equipment, motors, heavy equipment, transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and control instruments.
Explore more high-quality wire terminals and connectors in the Electronics & Electricals category at EnvMart for all your industrial and manufacturing needs.
