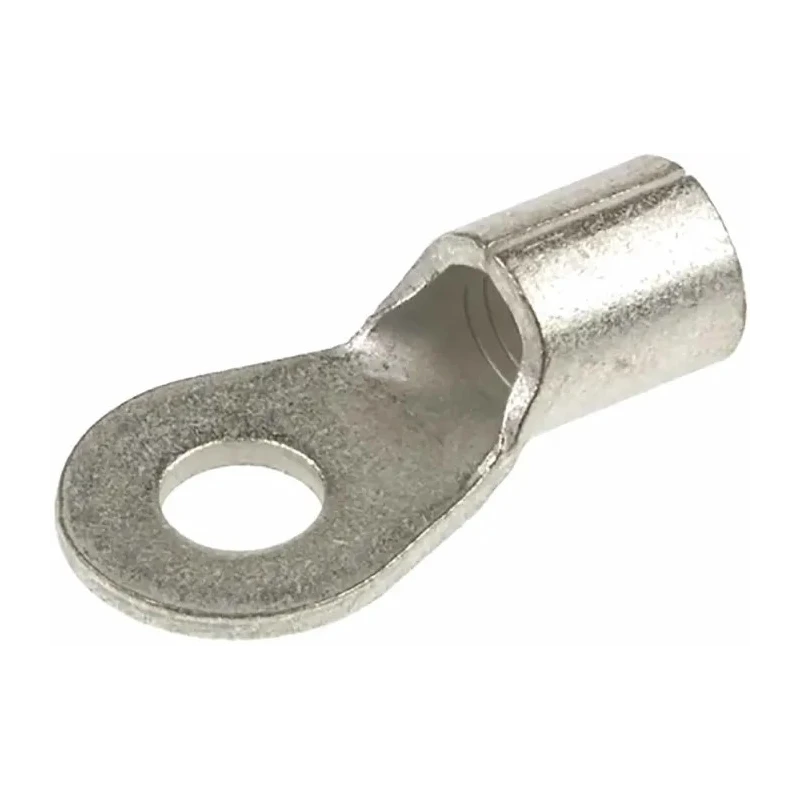

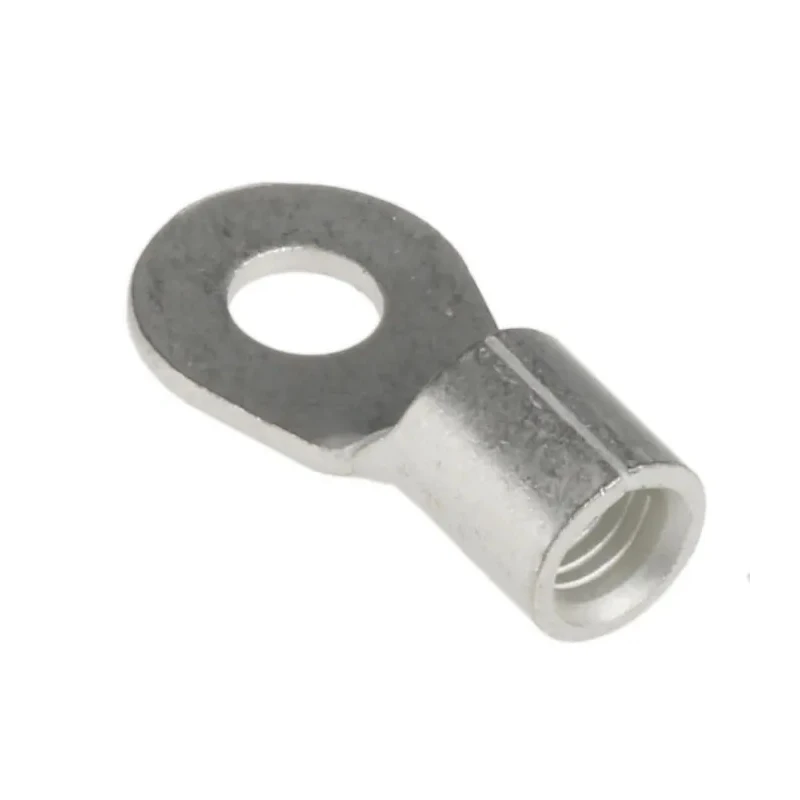

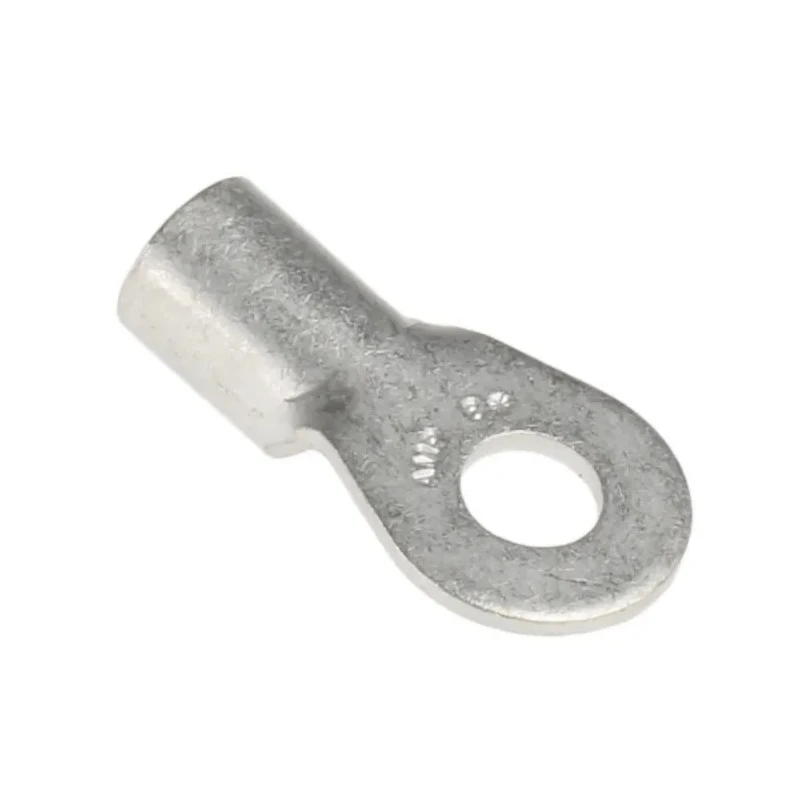

RS PRO Solistrand Uninsulated Crimp Ring Terminal M5 Stud Size 8 AWG Wire Size 160013
Specifications
| Country of Origin | United States |
|---|---|
| Brand | RS PRO |
| THICKNESS | 0.79mm |
| Model | 160013 |
| Insulation | Uninsulated |
| Overall Length | 23.7mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | UL, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Minimum Wire Size AWG | 8AWG |
| Outer Ring Diameter | 11.9mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- Constructed from high conductivity copper for optimal electrical performance.
- Electro tin plating enhances corrosion resistance for extended service life.
- Uninsulated design suitable for a wide range of industrial applications.
- Closed barrel with brazed seams provides increased mechanical strength.
- Serrated inner barrel surface maximizes tensile strength and electrical contact area.
- Bell shaped barrel entrance simplifies wire insertion and reduces installation time.
- Rated for maximum operating temperature of 170°C for reliability under standard conditions.
- Complies with UL and RoHS standards ensuring quality and safety compliance.
Product Description
TE Connectivity 160013 Solistrand Uninsulated Crimp Ring Terminal is engineered for dependable termination of solid and stranded wires with an M5 stud size and 8 AWG wire compatibility. Manufactured from fine grade high conductivity copper and electro tin plated to resist corrosion, this terminal combines electrical efficiency with mechanical robustness.
The terminal features a closed barrel with brazed seams, enhancing metal strength around the barrel, making it resistant to harsh industrial environments. The inner surface is serrated to increase tensile strength and maximize electrical contact area after crimping. The bell shaped barrel entrance facilitates easy wire insertion, optimizing installation efficiency and reducing labor time.
Designed to withstand a maximum operating temperature of 170°C, this uninsulated ring terminal is suitable for diverse industrial applications such as materials handling machinery, motors, heavy equipment, pad and pole mount transformers, switchgear, telecommunications, appliances, panel boxes, power supplies, and instrumentation control systems.
The product meets rigorous UL and RoHS standards, ensuring compliance with industrial safety and environmental regulations. Its robust construction and reliable performance make it ideal for demanding electrical installation tasks.
Constructed from high conductivity copper for optimal electrical performance. Electro tin plating enhances corrosion resistance for extended service life. Uninsulated design suitable for a wide range of industrial applications.
Closed barrel with brazed seams provides increased mechanical strength. Serrated inner barrel surface maximizes tensile strength and electrical contact area. Bell shaped barrel entrance simplifies wire insertion and reduces installation time.
Rated for maximum operating temperature of 170°C for reliability under standard conditions. Complies with UL and RoHS standards ensuring quality and safety compliance.
Explore the TE Connectivity Ring Terminal range and other wire terminal solutions within the Electronics & Electricals category at EnvMart for reliable connectors tailored to industrial and commercial needs.
