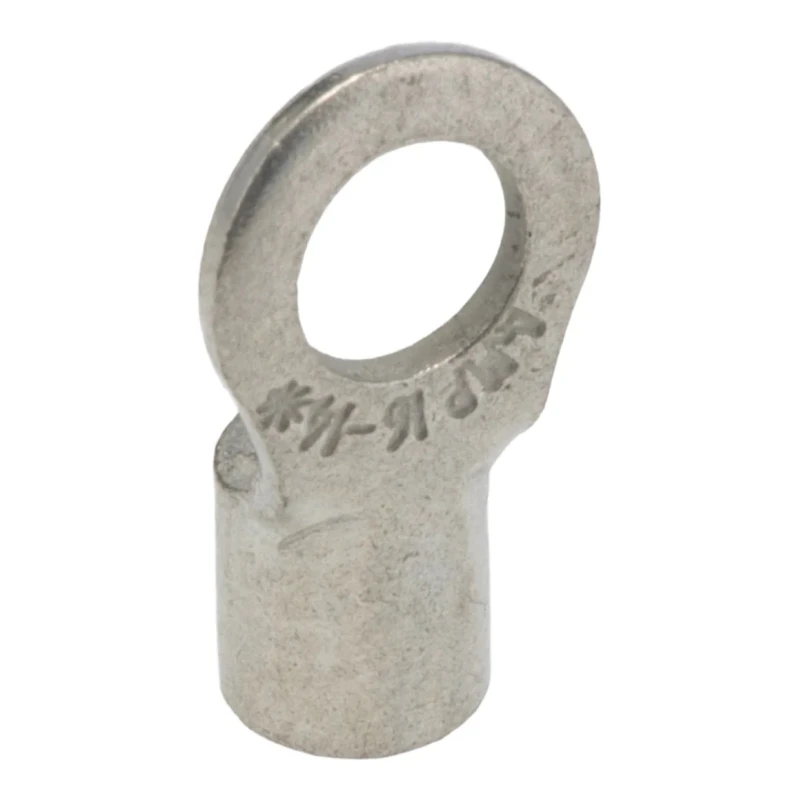

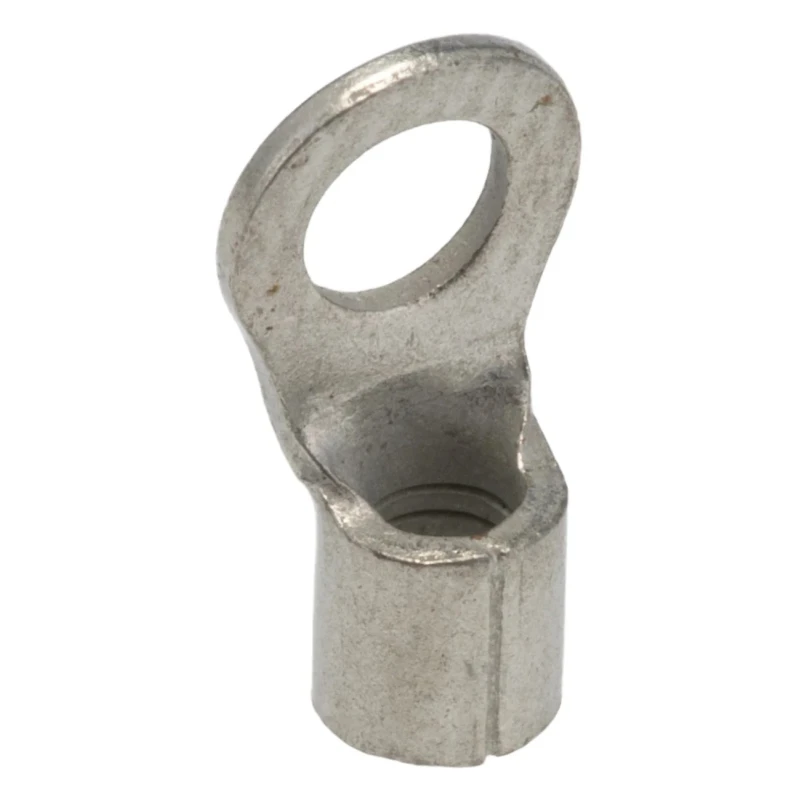

RS PRO Uninsulated Crimp Ring Terminal M3.5 Stud Size 16 AWG 14 AWG Wire Size 34120
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| THICKNESS | 0.79mm |
| Model | 34120 |
| Insulation | Uninsulated |
| Overall Length | 12.19mm |
| Contact Material | Copper |
| Series | Solistrand |
| Maximum Operating Temperature | 170°C |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard, RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 6.35mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
| Standards/Approvals ANSI/ESD S20.20 | 2021 Electrostatic Control Standard, RoHS |
| RS PRO Uninsulated Ring Terminal, M3.5 Stud Size 16 AWG 14 AWG Wire SizeBrand | RS PRO |
Key Features
- Constructed from high conductivity copper for excellent electrical performance.
- Electro tin plated for superior corrosion resistance.
- Uninsulated design with brazed barrel seams for increased strength.
- Bell shaped barrel entrance allows easy wire insertion.
- Serrated inner barrel surface enhances tensile strength and electrical contact.
- Rated for maximum operating temperature of 170°C.
- Ideal for use in harsh industrial environments.
- Compatible with SOLISTRAND crimping tools for optimal installation.
Product Description
TE Connectivity 34120 Solistrand uninsulated crimp ring terminal is designed for reliable electrical connections in industrial, manufacturing, and electronic applications. It supports M3.5 stud size and wire sizes ranging from 16 AWG to 14 AWG (1mm² to 2.6mm²).
Manufactured from fine-grade high conductivity copper, it ensures optimal electrical conductivity and durable mechanical strength. The tin electroplating provides excellent corrosion resistance, enhancing the product's lifespan even in challenging environments.
The robust barrel features brazed seams for enhanced strength, while the inner serrated surface improves tensile strength and maximizes the electrical contact area after crimping. A bell-shaped barrel entrance facilitates quick and easy wire insertion, reducing installation time.
This terminal can withstand operating temperatures up to 170°C, making it suitable for demanding industrial applications. It is ideal for materials handling equipment, motors, heavy machinery, transformers, switchgear, telecommunications, appliances, control panels, and power supplies.
TE Connectivity SOLISTRAND Ring Terminals are designed to maintain superior performance under harsh conditions and promote long service life. They are recommended for use with proprietary SOLISTRAND crimping tools available separately.
Constructed of high conductivity copper for superior electrical performance. Electro tin plating enhances corrosion resistance. Brazed seams provide barrel strength for harsh environments. Bell mouth barrel allows fast wire insertion.
Serrated barrel inner surface maximizes tensile strength. Rated maximum operating temperature of 170°C. Suitable for a wide range of industrial and commercial applications. Compatible with SOLISTRAND crimping tools for best results.
This product is part of TE Connectivity's trusted SOLISTRAND series and complies with ANSI/ESD S20.20:2021 Electrostatic Control Standard and RoHS directives, ensuring safety and environmental standards compliance.
Explore TE Connectivity and other premium electrical connectors at EnvMart for reliable wire termination solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp ring terminal is compatible with wire sizes ranging from 16 AWG to 14 AWG, which corresponds to 1mm² to 2.6mm².
The maximum operating temperature for this terminal is rated at 170°C, making it suitable for demanding industrial applications.
It is constructed from high conductivity copper, and features electro tin plating for enhanced corrosion resistance.
The stud size for this terminal is M3.5, which is designed for reliable connections in various applications.
The overall length of this terminal is 12.19mm, with an outer ring diameter of 6.35mm and an inner ring diameter of 3.68mm.
Key features include a bell-shaped barrel for easy wire insertion, serrated inner barrel surface for enhanced tensile strength, and brazed barrel seams for increased strength.
This terminal complies with the ANSI/ESD S20.20:2021 Electrostatic Control Standard and RoHS directives, ensuring safety and environmental compliance.
It is suitable for applications in materials handling equipment, motors, heavy machinery, transformers, switchgear, telecommunications, appliances, control panels, and power supplies.
Yes, it is compatible with SOLISTRAND crimping tools for optimal installation and performance.
The thickness of this terminal is 0.79mm, which contributes to its mechanical strength.
The serrated inner barrel surface enhances tensile strength and maximizes the electrical contact area after crimping, improving overall performance.
This crimp ring terminal is manufactured in India, ensuring compliance with industry standards.
