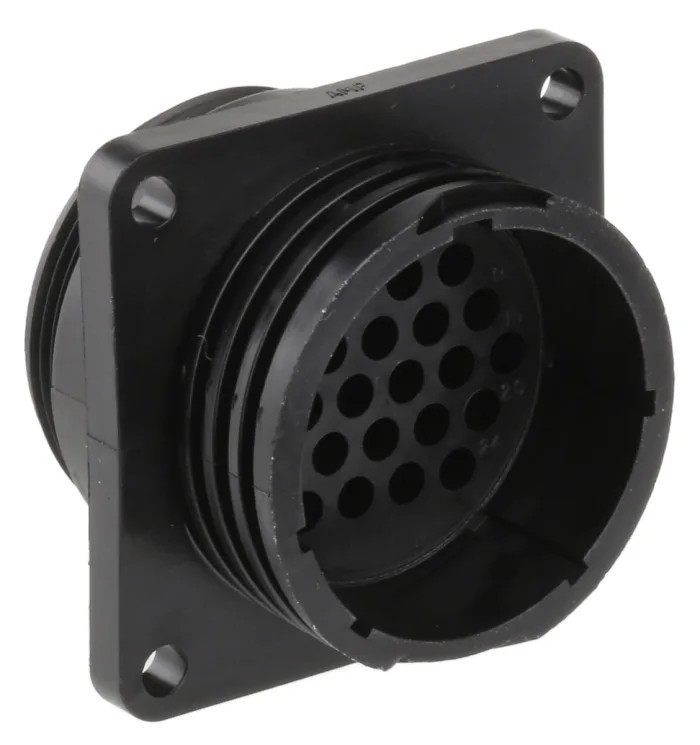

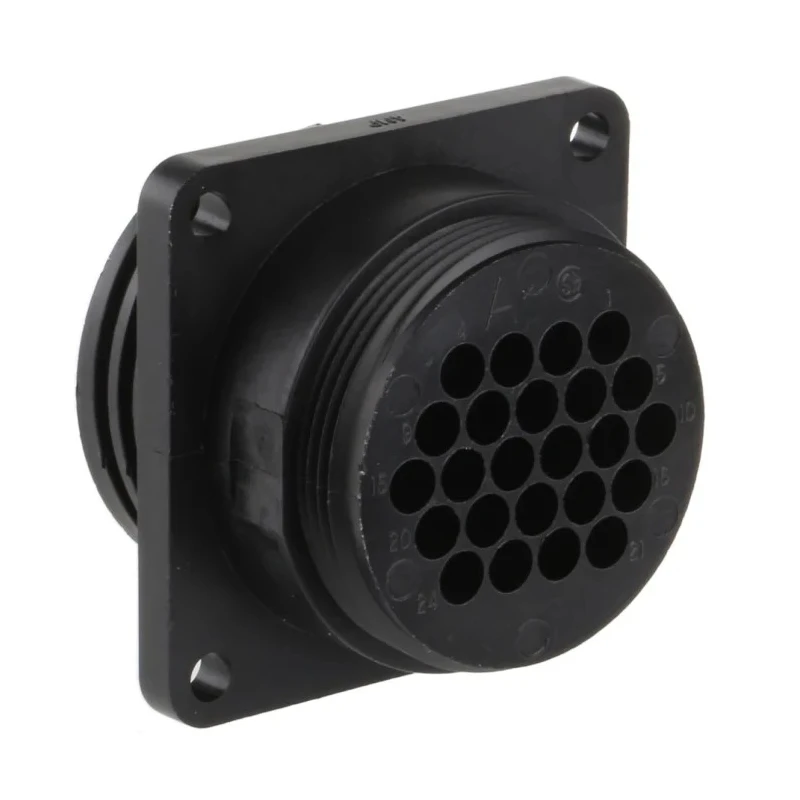

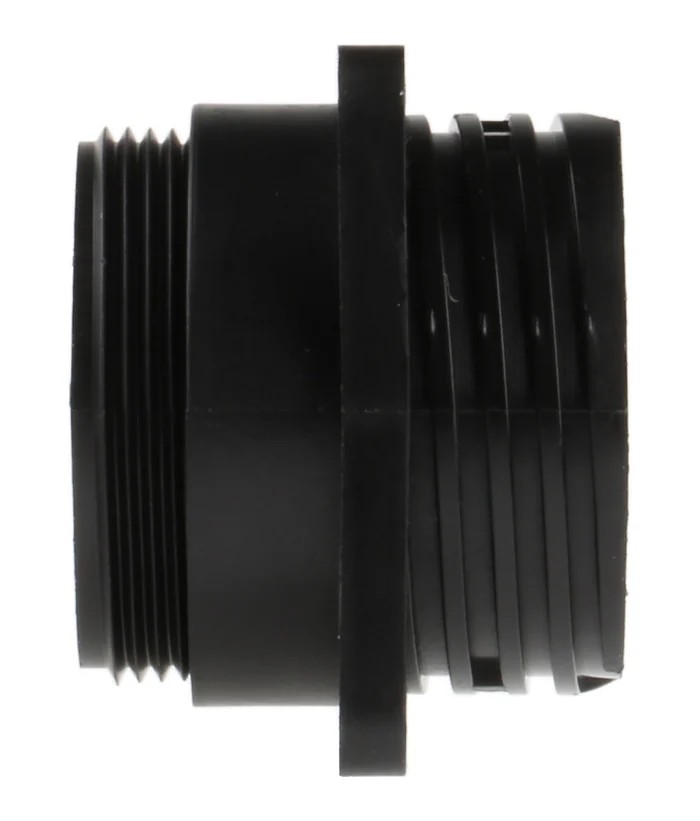

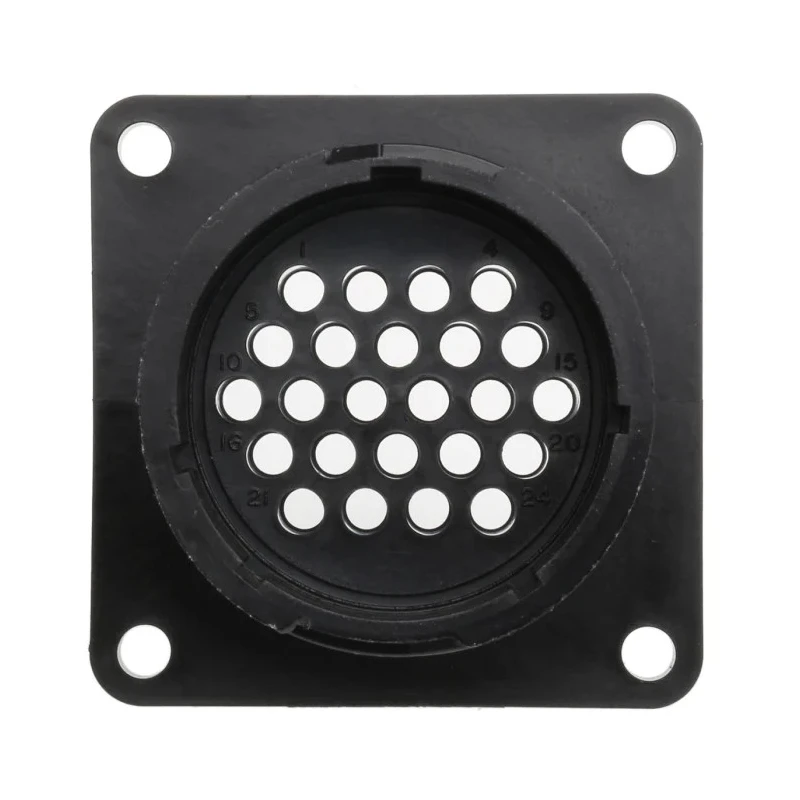

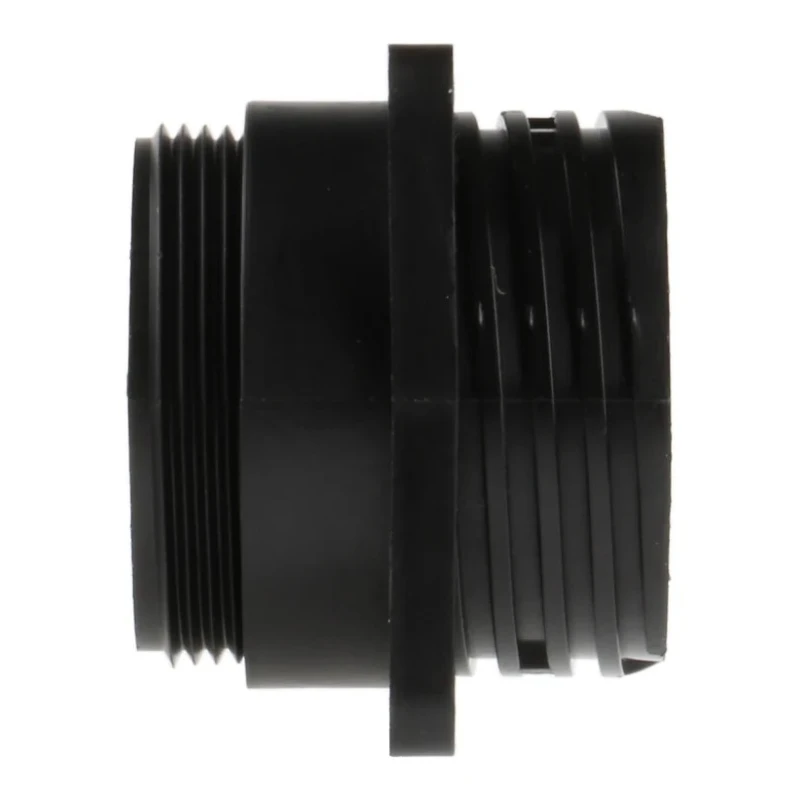

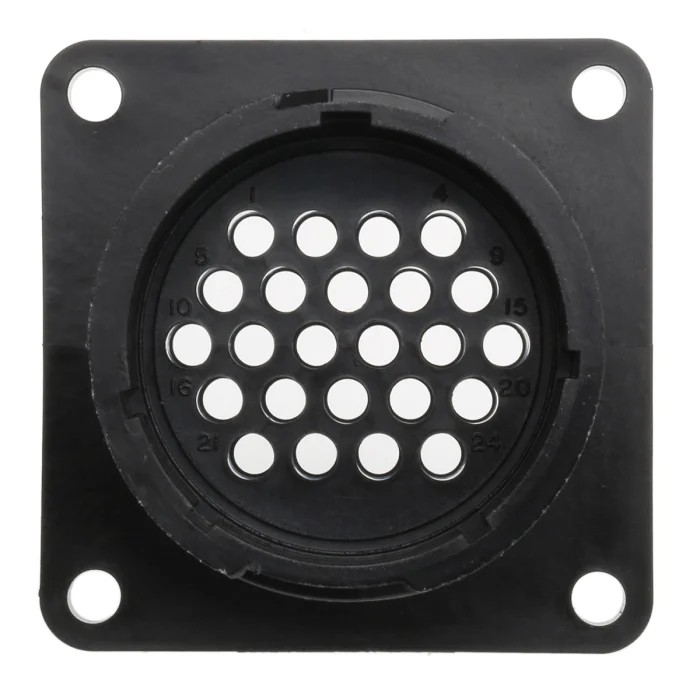

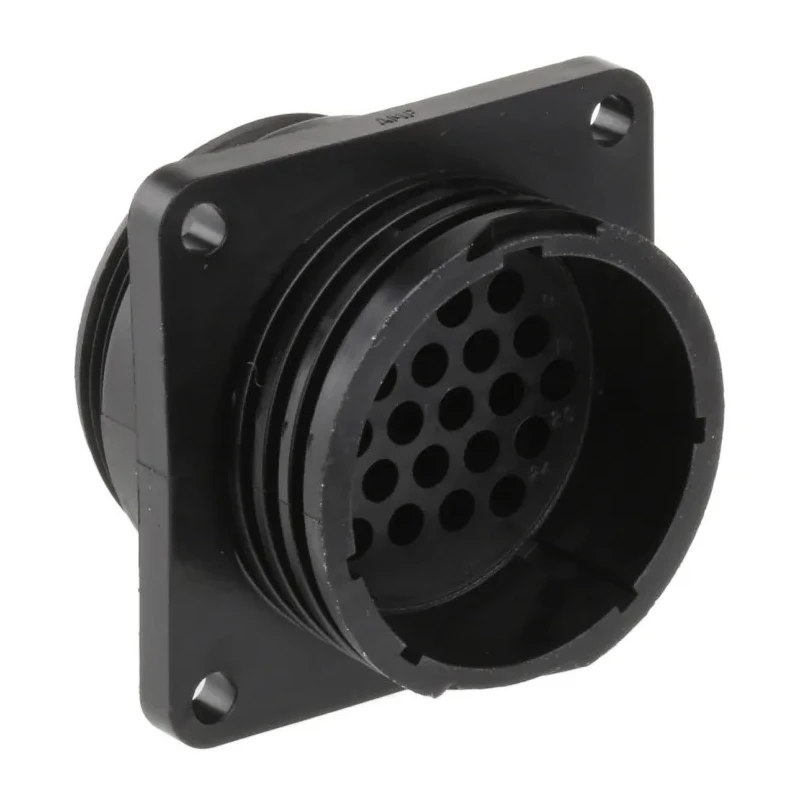

TE Connectivity Circular Connector 24 Contacts Panel Mount Socket Male Nylon Housing 250V 13A CPC Series 206838-1
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 206838-1 |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 24 |
| Contact Gender | Male |
| Shell Size | 23 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | A |
| Series 1 | Standard density. Specifically designed for signal and low power current applications. Series 1 connectors are available in 4-37 pole with signals up to 13A |
Key Features
- Constructed from UL94V-0 rated nylon, offering high resistance to heat and shock.
- Supports up to 13A current and operates at 250V for reliable signal and power transmission.
- Features a bayonet mating type for secure and quick connect/disconnect functionality.
- Designed to withstand a broad temperature range from -55°C to +105°C for harsh environments.
- Standard-sized connector with straight orientation and crimp termination for ease of assembly.
- Polarized to ensure proper mating and prevent misconnection.
- Suitable for industrial machinery, process control systems, and transportation applications.
- Lightweight, all-plastic construction reduces cost compared to metal alternatives.
Product Description
TE Connectivity 206838-1 Circular Connector is a robust panel mount socket with 24 contacts from the CPC Series 1 lineup, manufactured with high-grade nylon housing providing UL94V-0 flame retardant rating. Rated for 13A current and 250V voltage, this connector is ideally suited for signal and low power current applications in various industrial sectors, including machinery, instrumentation, process control, automation, and transportation.
The connector features a bayonet mating type with a straight orientation and male contact gender, ensuring a secure and reliable connection. Its crimp termination allows for simple and effective assembly in the field. The connector is engineered to operate across a wide temperature range from -55°C to 105°C, making it suitable for harsh environmental conditions.
The Series 1 CPC connectors accept size 16 MultiMate contacts and offer polarization for proper alignment, preventing accidental mismating. The lightweight, all-plastic design reduces overall cost and resists vibration and shock effectively.
This connector is ideal for industrial and commercial uses, including agricultural equipment, HVAC systems, industrial automation, and lighting sectors. Contacts are removable facilitating easy repair and maintenance, which significantly reduces downtime in critical applications.
Constructed from UL94V-0 rated thermoplastic nylon housing. Supports current up to 13A and voltage of 250V. Bayonet connect type ensures quick and secure mating. Operates reliably from -55°C to 105°C ambient temperature.
Polarized connector design for proper mating alignment. Crimp termination type for convenient assembly and maintenance. Suitable for industrial, process control, automotive, and HVAC applications. Lightweight plastic design offers cost-effective and reliable performance.
Explore more Industrial Circular Connectors and accessories at EnvMart to support your electrical connectivity needs with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current of up to 13A and operates at a voltage of 250V.
It operates reliably within a temperature range of -55°C to +105°C, making it suitable for harsh environments.
It features a crimp termination type, allowing for convenient assembly and maintenance.
This connector has 24 contacts, designed for signal and low power current applications.
The housing is constructed from nylon, which is rated UL94V-0 for flame retardancy.
It features a bayonet mating type, ensuring a secure and quick connect/disconnect functionality.
This model has a straight orientation, suitable for panel mounting applications.
Yes, it is polarized to ensure proper mating and prevent misconnection.
It is suitable for various applications, including industrial machinery, process control systems, and transportation.
The connector is manufactured in Mexico.
The shell size of this connector is 23.
It is a panel mount socket with a male contact gender, designed for use in various industrial applications.
