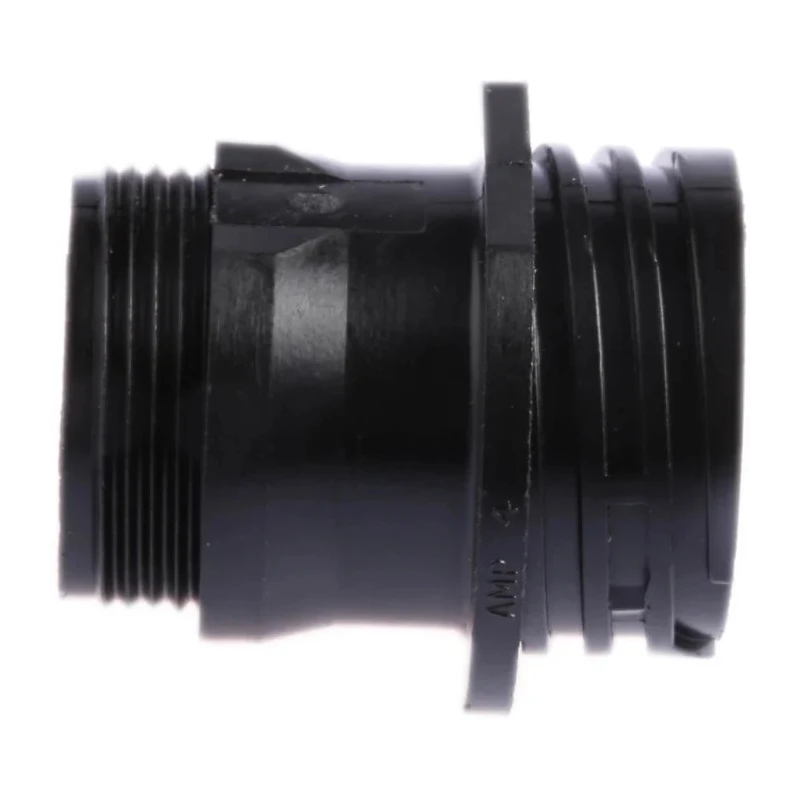

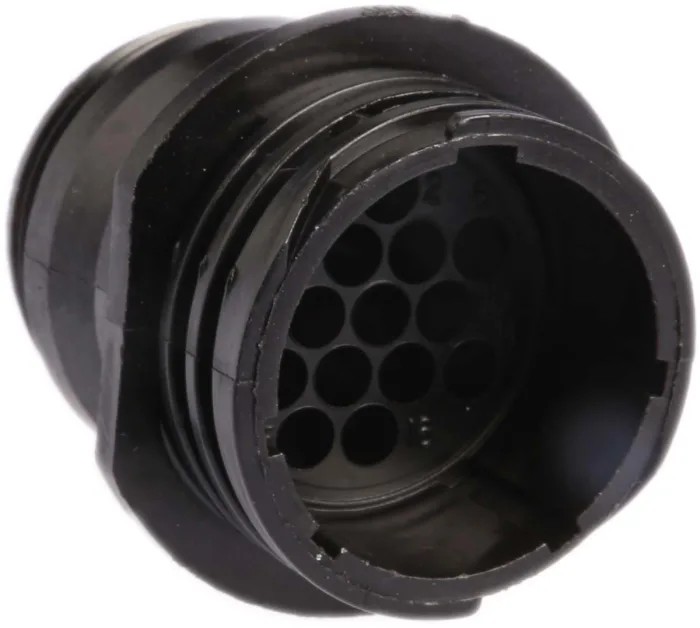

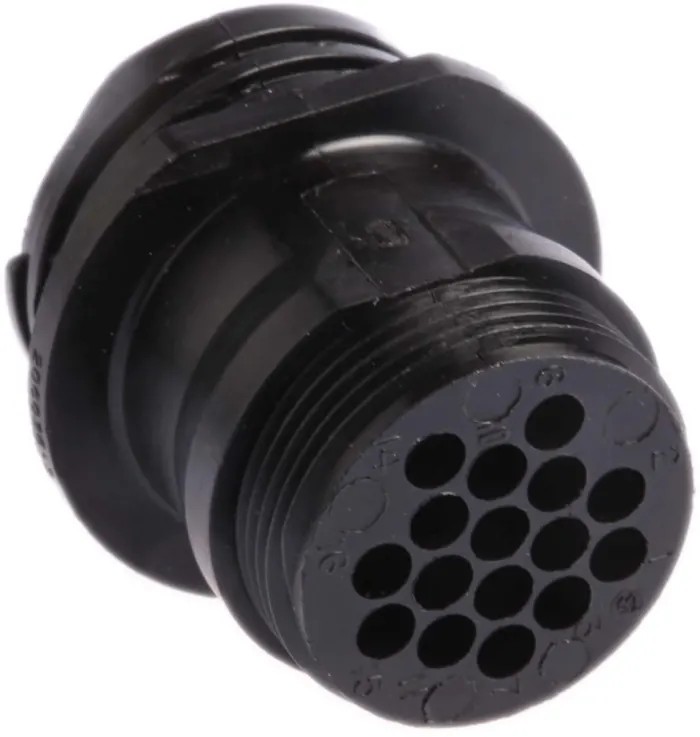

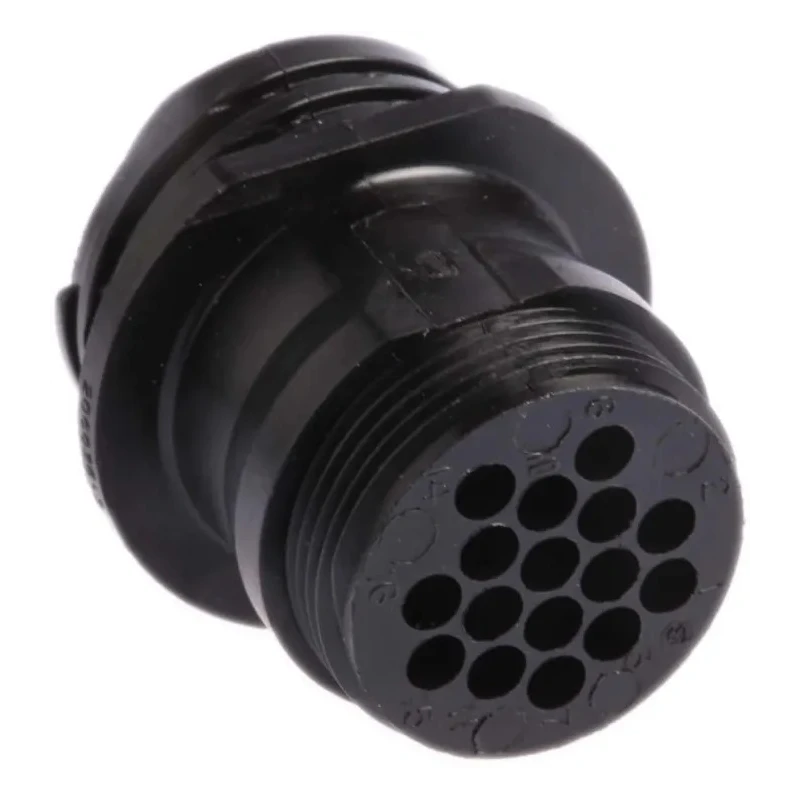

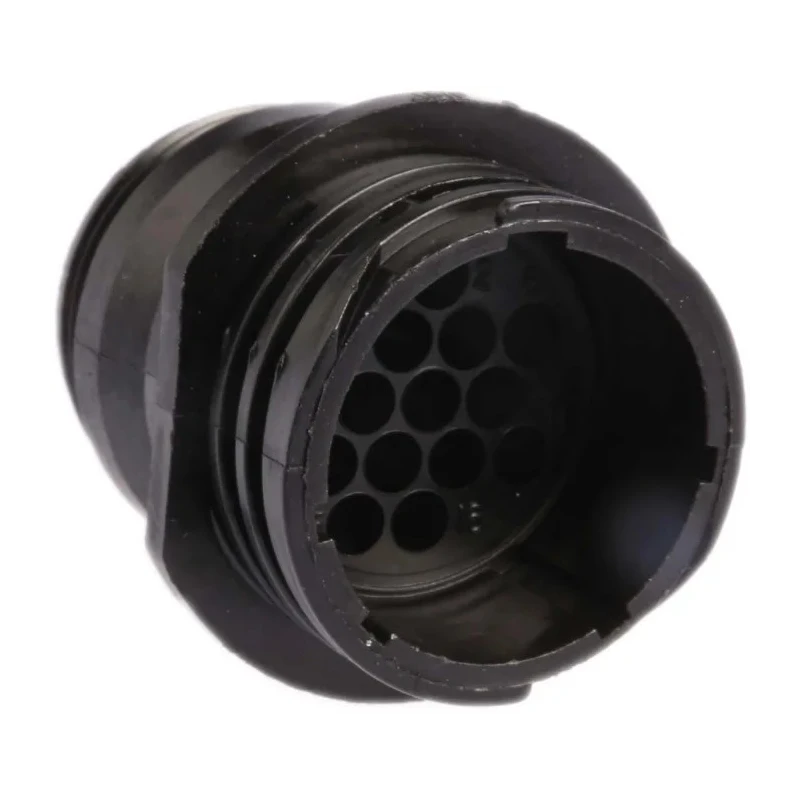

TE Connectivity Circular Connector Cable Standard Size 16 Contacts 13A 600V Plug Female Threaded Mating CPC Series 206036-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 13A |
| Model | 206036-3 |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Shell Size | 17 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
| Series 1 | Standard density. Specifically designed for signal and low power current applications. Series 1 connectors are available in 4-37 pole with signals up to 13A |
Key Features
- Constructed with rugged nylon housing for durability and heat resistance.
- Polarized design ensures correct mating orientation.
- Threaded mating type for secure connections preventing accidental disengagement.
- Crimp termination type allows easy onsite assembly and repair.
- Operates reliably between -55°C and 105°C temperatures.
- Ideal for industrial machinery, HVAC, instrumentation, and automation use cases.
- Lightweight, all-plastic design provides cost-effective and vibration-resistant connectivity.
- Supports up to 16 contacts with signal and low power current applications.
Product Description
TE Connectivity 206036-3 circular connector is a cable mount plug featuring 16 female contacts with a standard size designed for reliable industrial connections. It supports up to 13A current and 600V voltage, with a threaded mating system to ensure a secure, vibration-resistant plug connection. The connector's nylon housing is UL94V-0 rated for excellent heat resistance and durability in harsh industrial environments.
This CPC series circular connector provides easy crimp termination enabling onsite assembly and rapid repair to minimize downtime. Its polarized design guarantees proper mating alignment of connector halves, which contributes to system reliability in industrial machinery, process control, HVAC, instrumentation, agricultural equipment, and automotive applications.
Operating temperature ranges from -55°C to 105°C make this connector suitable for a broad range of environmental conditions. The lightweight, all-plastic construction reduces costs compared to metal connectors, while maintaining excellent resistance to shock and vibration.
The CPC Series 1 standard density connectors are specifically designed for signal and low power current use, available with 4 to 37 poles, supporting signals up to 13A. The Series 1 connectors accept size 16 MultiMate pin and socket contacts for broad compatibility.
Set contains one female plug circular connector with 16 contacts, shell size 17, threaded mating, and crimp termination for cable mounting applications. Rugged nylon housing rated UL94V-0 for heat and shock resistance. Polarized design prevents incorrect mating.
Threaded mating ensures secure connection with quick connect and disconnect capability. Crimp termination supports easy field assembly and repair. Operates reliably in harsh industrial environments from -55°C to 105°C. Compatible with size 16 MultiMate pin and socket contacts.
Ideal for industrial machinery, process control, HVAC, instrumentation, and automotive applications. Lightweight, cost-effective design with vibration resistance. Explore more Industrial Circular Connectors at EnvMart for your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 13A.
It is rated for a maximum voltage of 600V.
It operates reliably between -55°C and 105°C.
This unit features 16 female contacts.
It uses a crimp termination type, allowing for easy onsite assembly and repair.
The housing is constructed from nylon, which is UL94V-0 rated for heat resistance and durability.
It features a threaded mating type, ensuring secure connections and preventing accidental disengagement.
The shell size for this model is 17.
Yes, it is ideal for industrial machinery, HVAC, instrumentation, and automation applications.
The connector has a straight orientation.
This model is part of the CPC series, specifically designed for signal and low power current applications.
The country of origin for this connector is India.
