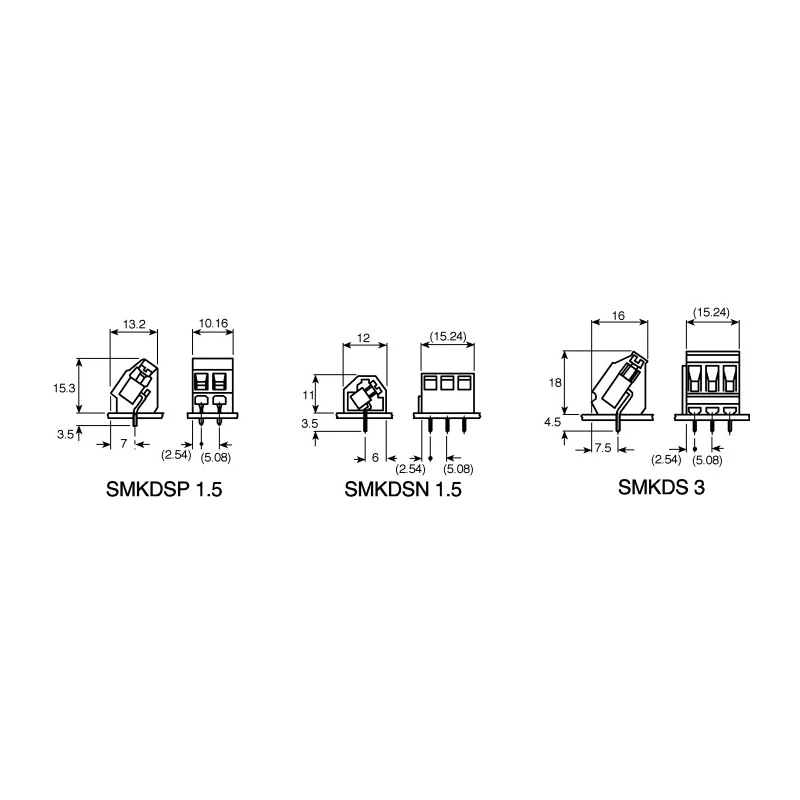

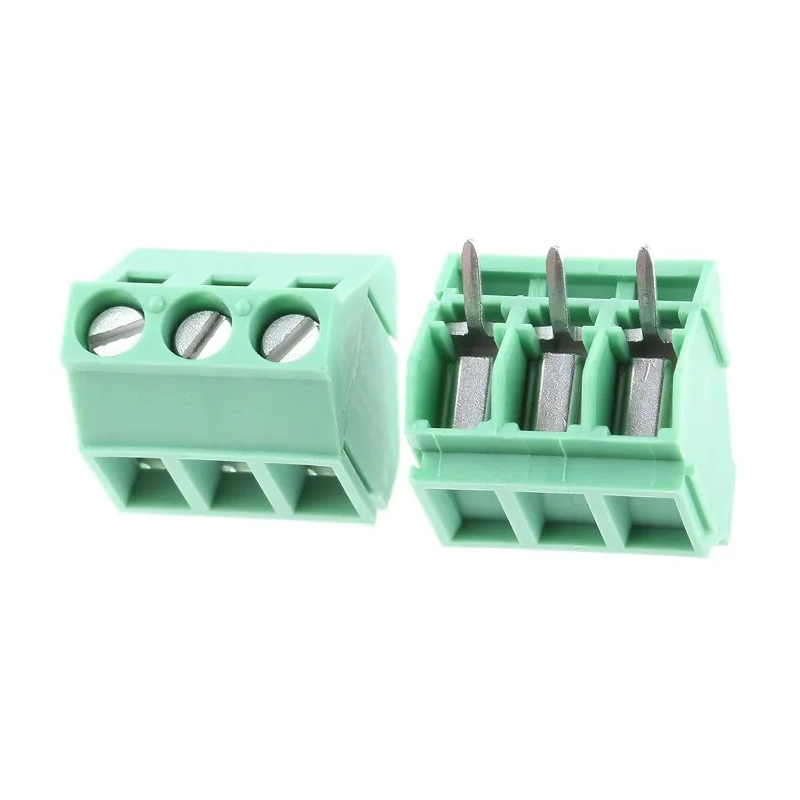

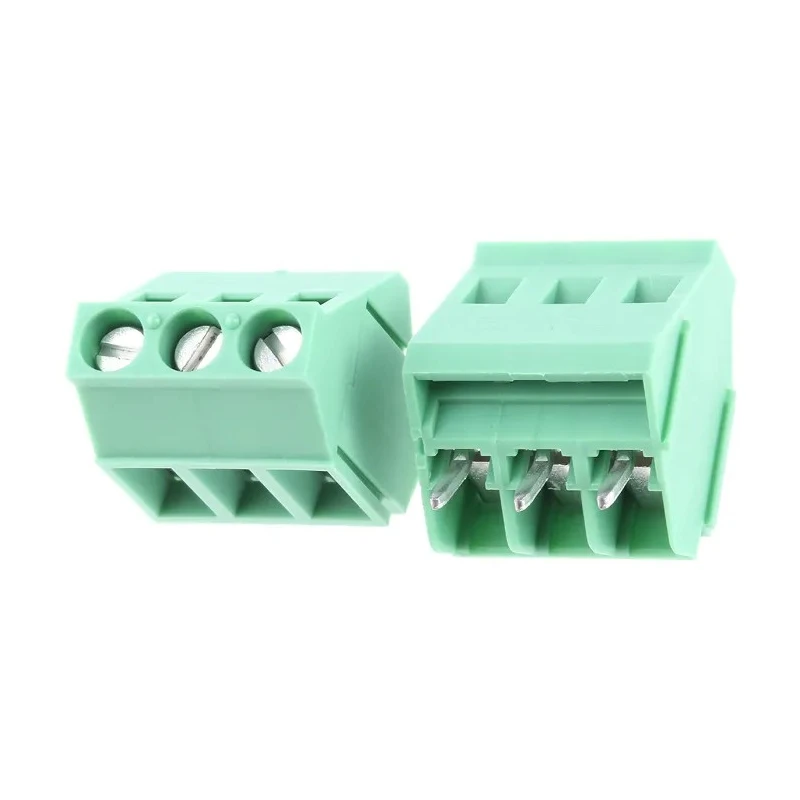

Phoenix Contact SMKDS 3/3-5.08 Series Angled PCB Terminal Block, 3 Contacts, 5.08 mm Pitch, 24 A Current, 400 V 1713736
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 24A |
| Model | 1713736 |
| Series | SMKDS 3/3-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 3 |
Key Features
- High current rating of 24 A for effective power transmission.
- Operates safely at up to 400 V voltage rating.
- Features a 35° angled mating connection for easy installation.
- Durable nylon polyamide green housing ensures long-lasting performance.
- Solder termination and through-hole mounting for secure PCB connections.
- Side interlocking system allows combining multiple terminals conveniently.
- Wire size accommodation ranges from 30 to 12 AWG.
- Stripping length required is 8 mm with 1.3 mm hole diameter.
Product Description
Phoenix Contact 1713736 SMKDS 3/3-5.08 Series Angled PCB Terminal Block is designed for reliable and efficient wire-to-board connections in electronic applications. This 3-contact terminal block features a 5.08 mm pitch and 35° angled mating connection, providing easy access and installation in compact circuit board layouts.
Constructed from durable nylon polyamide material in the brand's signature green color, it ensures robust mechanical and electrical performance. The component supports solder termination and through-hole PCB mounting techniques, making it suitable for prototyping, programming boards, and various industrial electronics manufacturing processes.
Rated for a maximum current of 24 A and voltage of 400 V, this terminal block ensures safe and stable operation across demanding conditions. The side interlocking system allows connection of multiple units to create modular terminal blocks for complex wiring schemes. Wire size support ranges between 30 to 12 AWG, with an 8 mm stripping length and a 1.3 mm hole diameter for the cage clamp screw terminals.
High current rating of 24 A for reliable signal and power transmission. 400 V voltage rating ensures operation in standard industrial electronic environments. 35° angled mating connection facilitates compact and ergonomic PCB layouts.
Durable green nylon polyamide housing certified UL 94 V-2 for fire safety. Through-hole mounting with solder termination for secure circuit integration. Side interlocking system enables modular terminal block assembly. Supports wire sizes from 30 to 12 AWG for versatile applications.
Compact length of 10.6 mm to suit dense PCB footprints.
Manufactured in Germany, this Phoenix Contact SMKDS terminal block aligns with rigorous quality and safety standards, suitable for industrial, electronic manufacturing, laboratory, and prototyping use. It provides an ideal solution for board-to-board connections where reliable electrical contact and ease of wiring are critical. Environmentally tested for UL 94 V-2 fire safety classification, it enhances product safety in electrical assemblies.
Browse EnvMart's extensive selection of PCB Terminal Blocks and electronic connectors for your industrial and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a high current rating of 24 A, allowing for effective power transmission.
The SMKDS 3/3-5.08 terminal block operates safely at a voltage rating of up to 400 V.
It features 3 contacts, making it suitable for various wiring configurations.
The pitch size is 5.08 mm, which is standard for many PCB applications.
It employs a 35° angled mating connection for easy installation in compact layouts.
The required stripping length for wire connections is 8 mm.
It supports through-hole mounting with solder termination for secure PCB connections.
The housing is constructed from durable nylon polyamide, ensuring robust performance.
Yes, it includes a side interlocking system that allows for the combination of multiple terminals.
The terminal block has a compact length of 10.6 mm, suitable for dense PCB footprints.
It is manufactured in Germany, aligning with rigorous quality and safety standards.
